Home >> Mazda >> 2005 >> Tribute 4WD L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations >> Component Locations

Component Locations

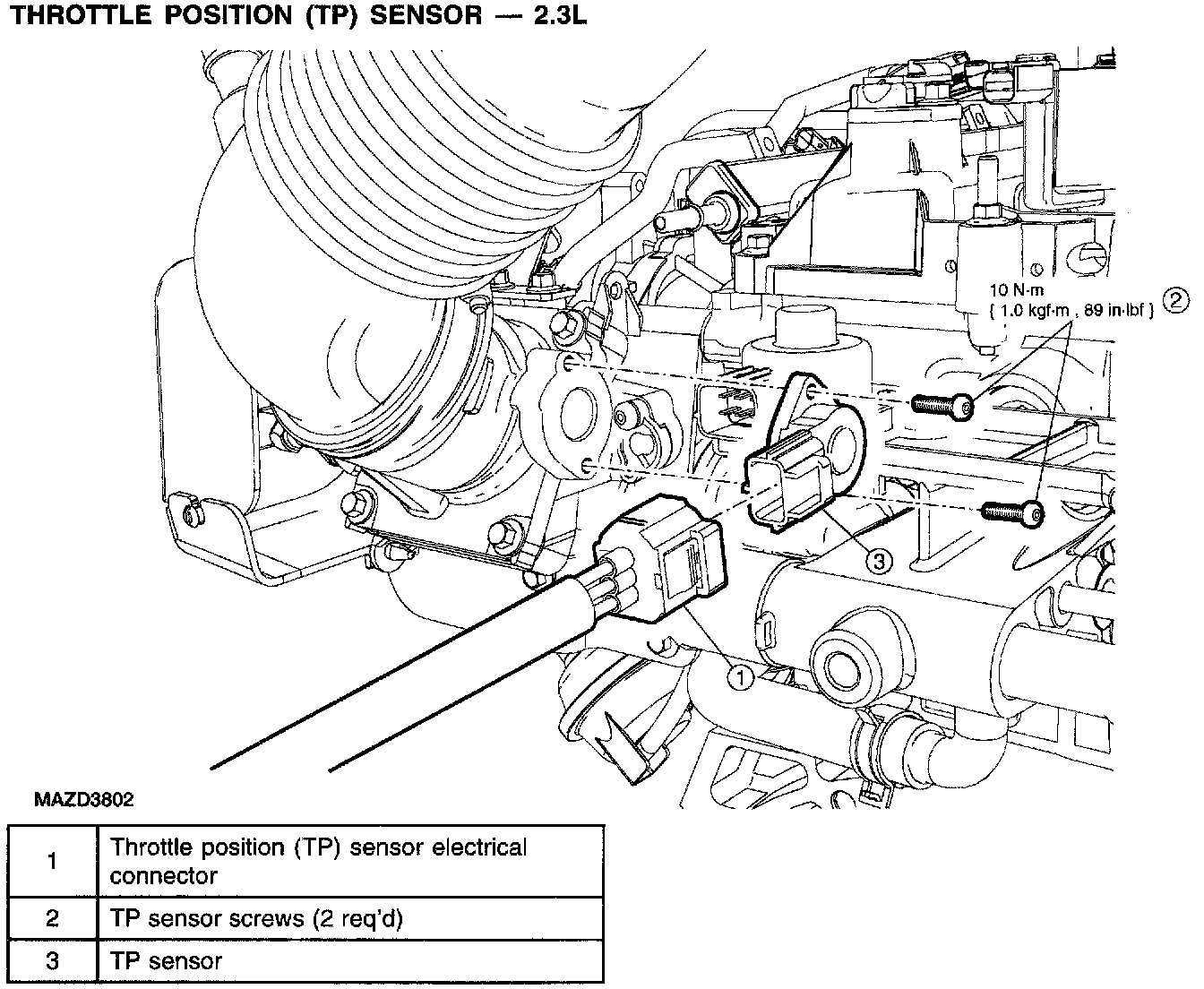

Throttle Position (TP) Sensor:
