Home >> Mazda >> 2005 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Glass >> Locations

Window Glass: Locations

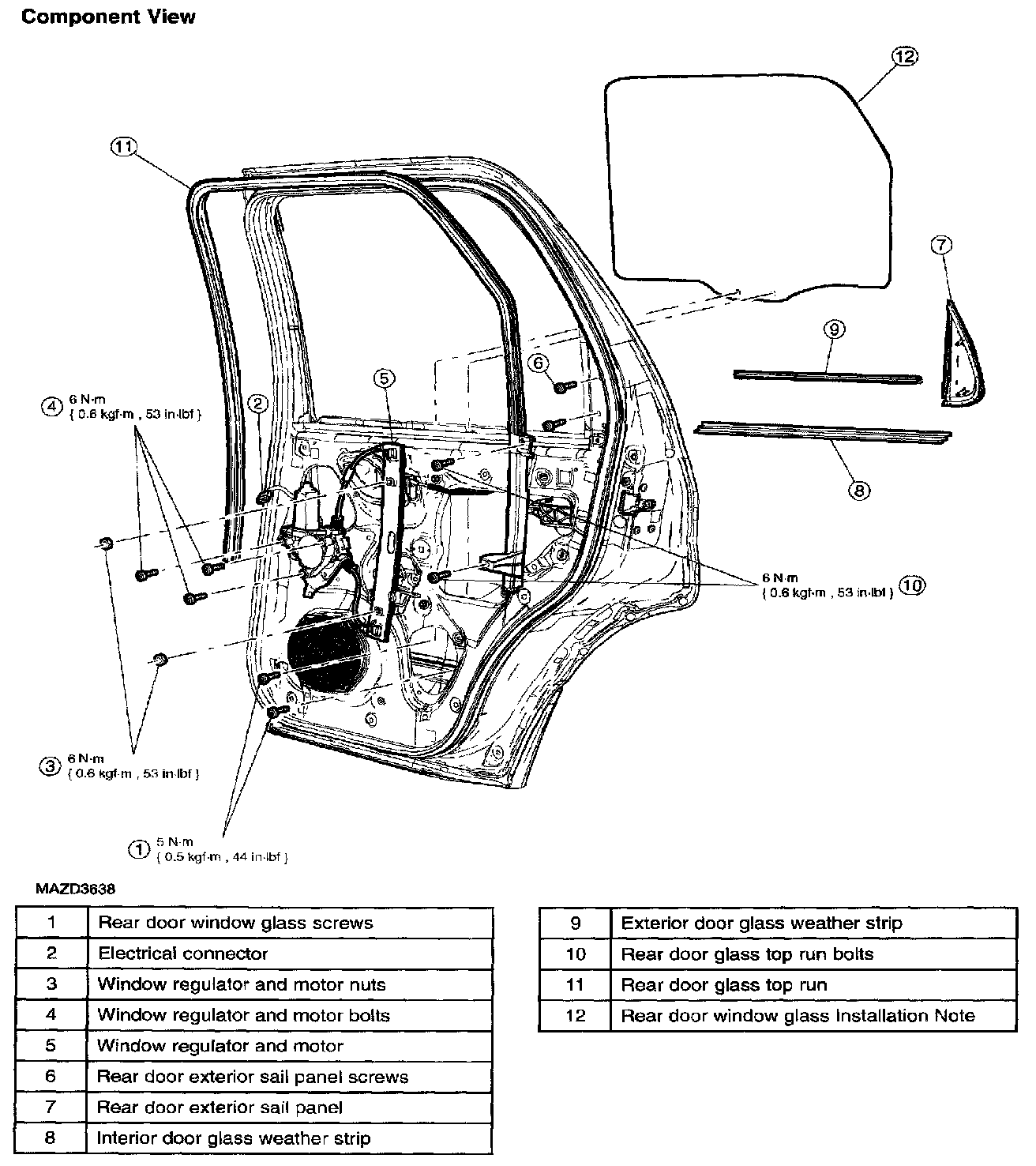

Rear Door Window Glass:

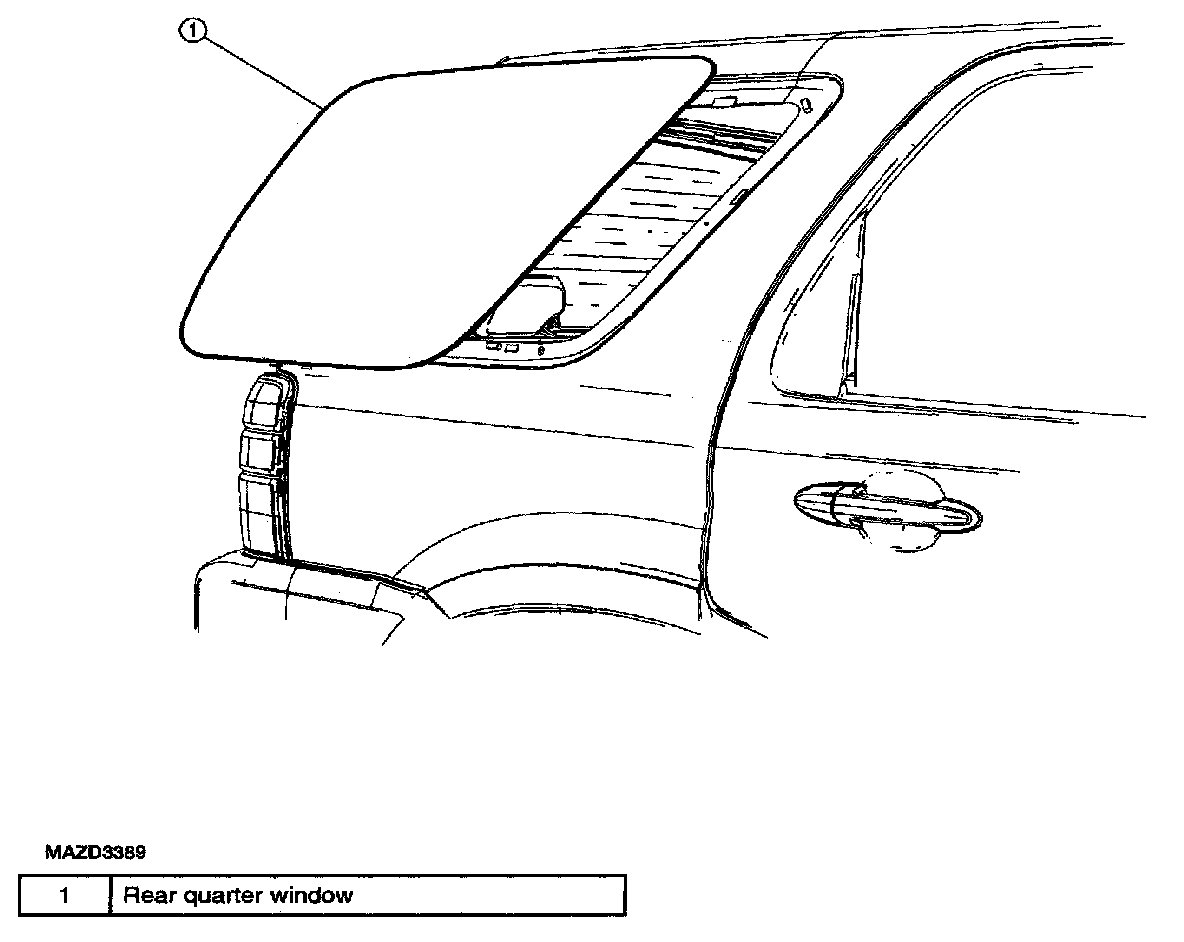

Rear Quarter Window Glass:

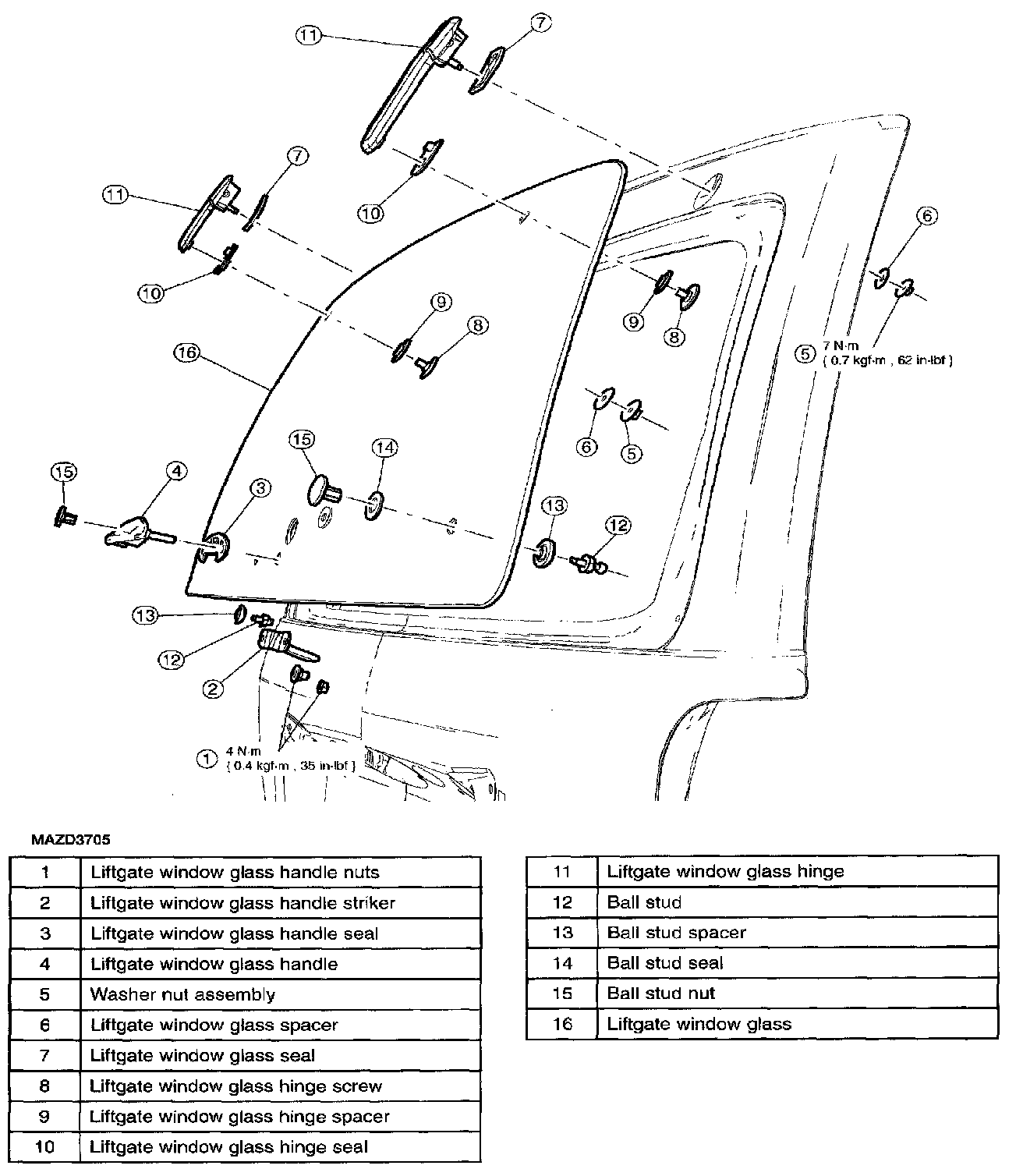

Liftgate Window Glass:
