Home >> Mazda >> 2005 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Refrigerant Pressure Sensor / Switch, HVAC

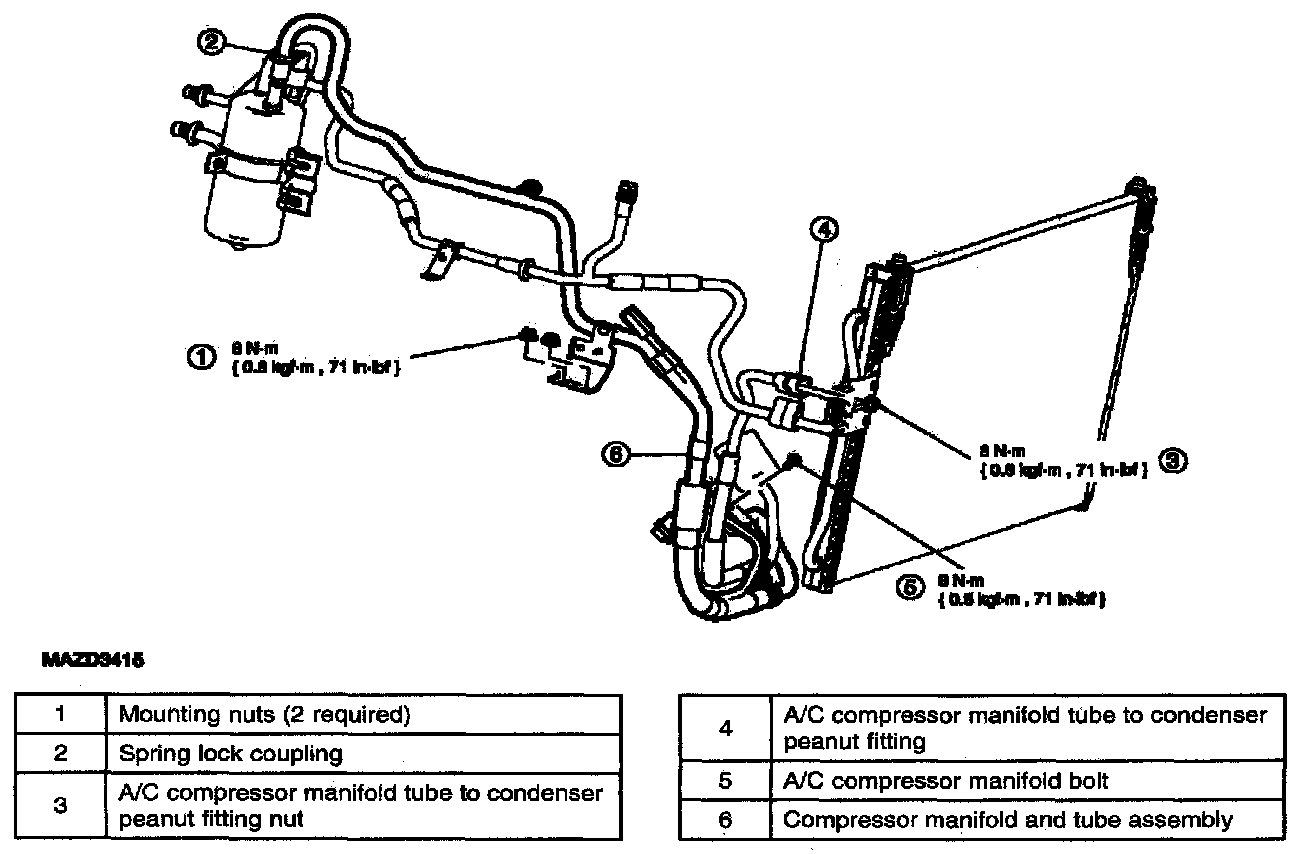

Refrigerant Pressure Sensor / Switch, HVAC

Air Conditioning (A/C) Cycling Switch:
