Hose/Line HVAC
Hose/Line HVAC

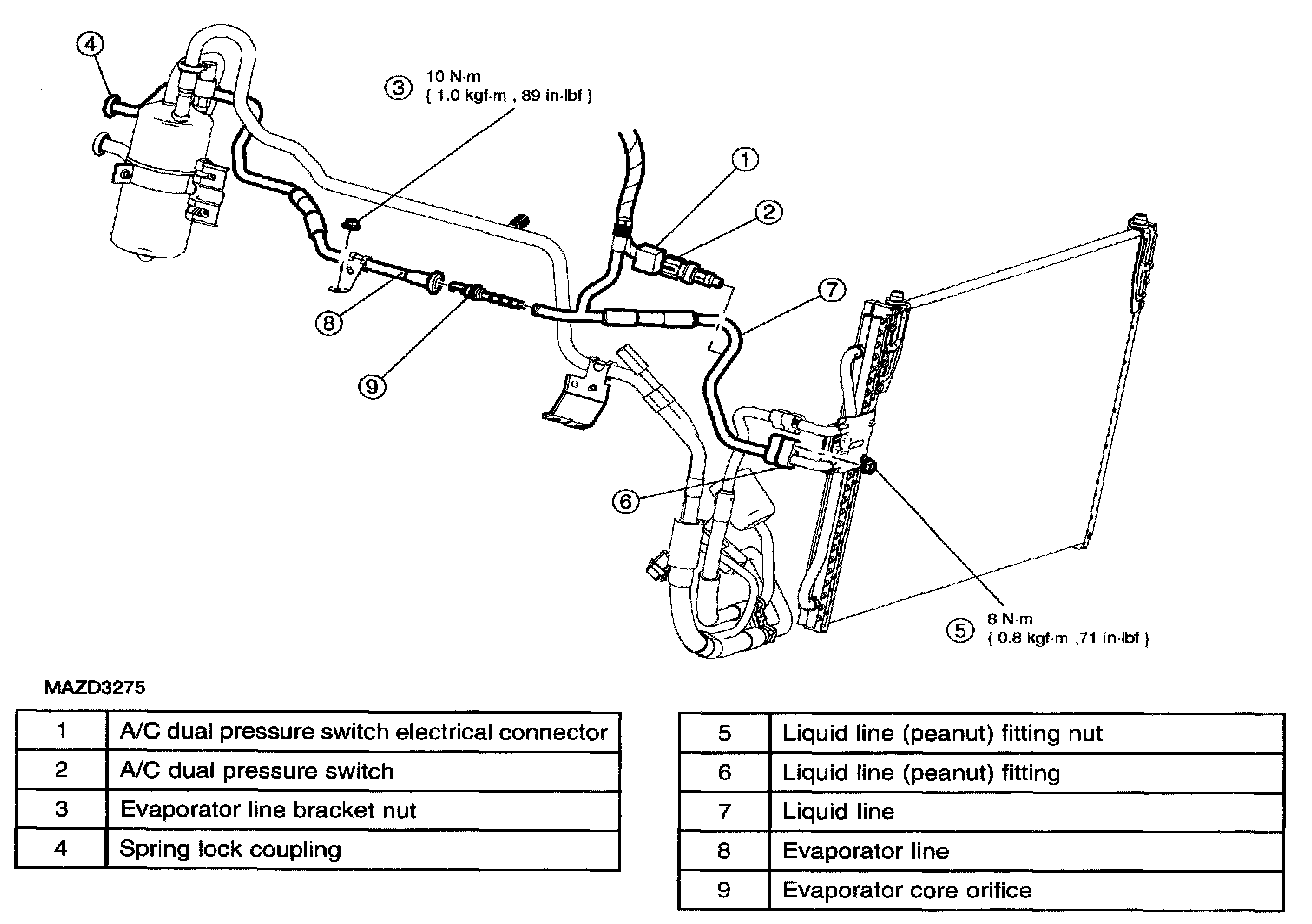

Condenser To Evaporator Line:

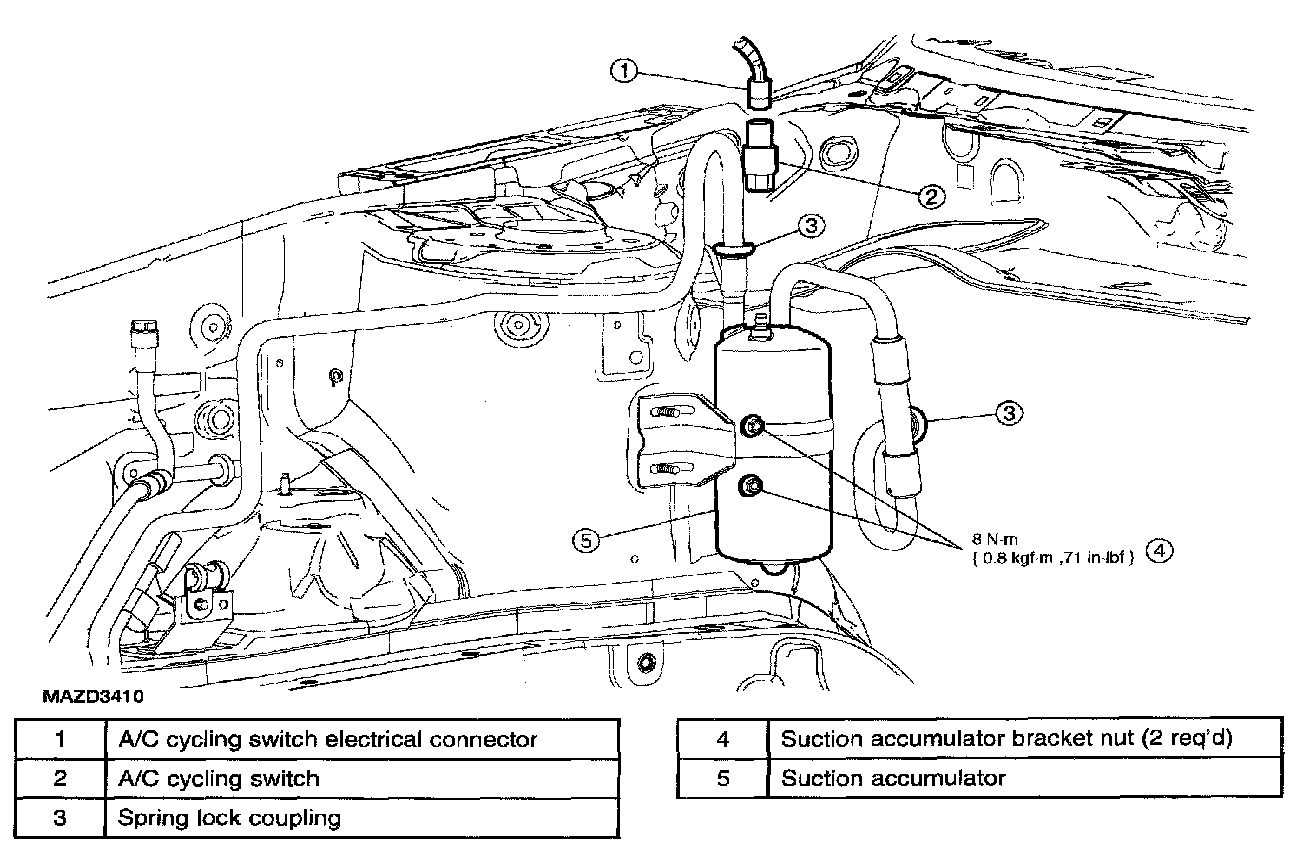

Suction Accumulator To Compressor Line:

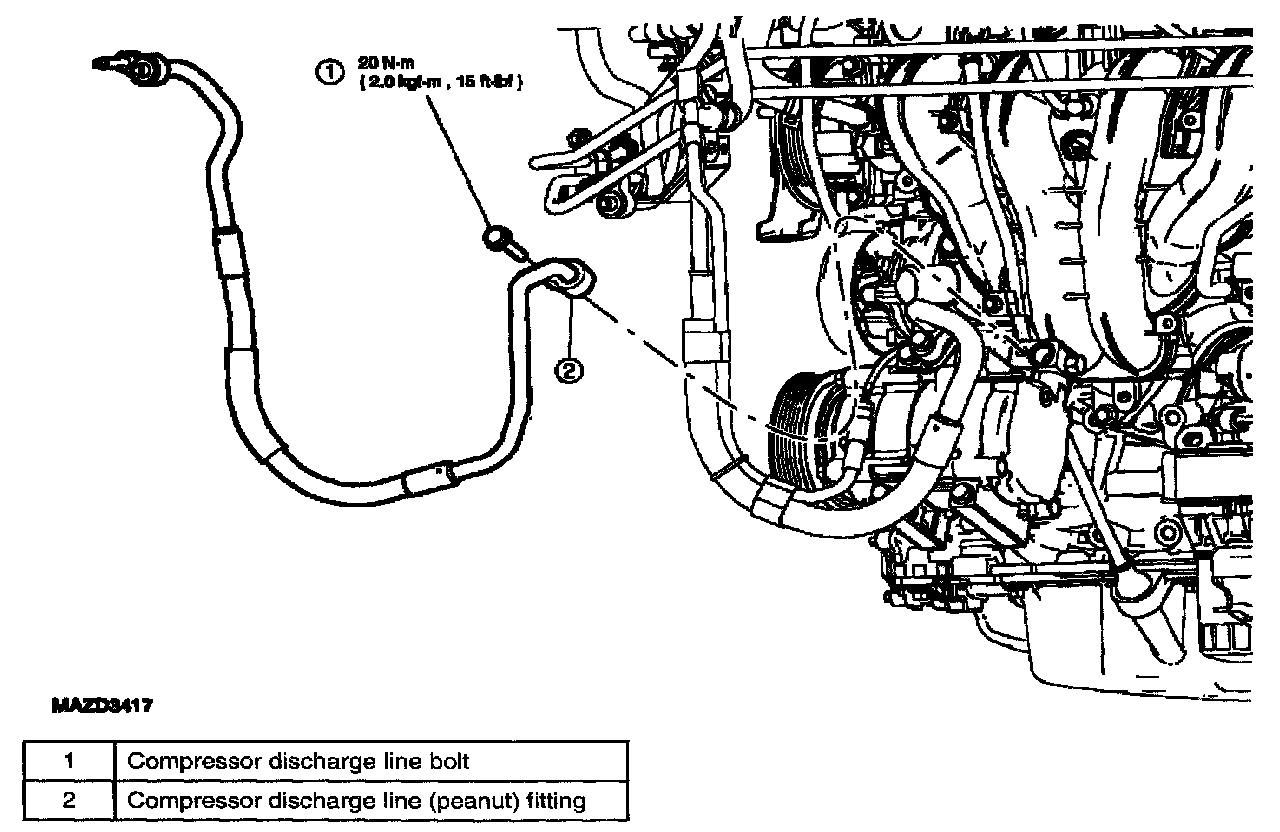

Compressor To Condenser Line Part 1:

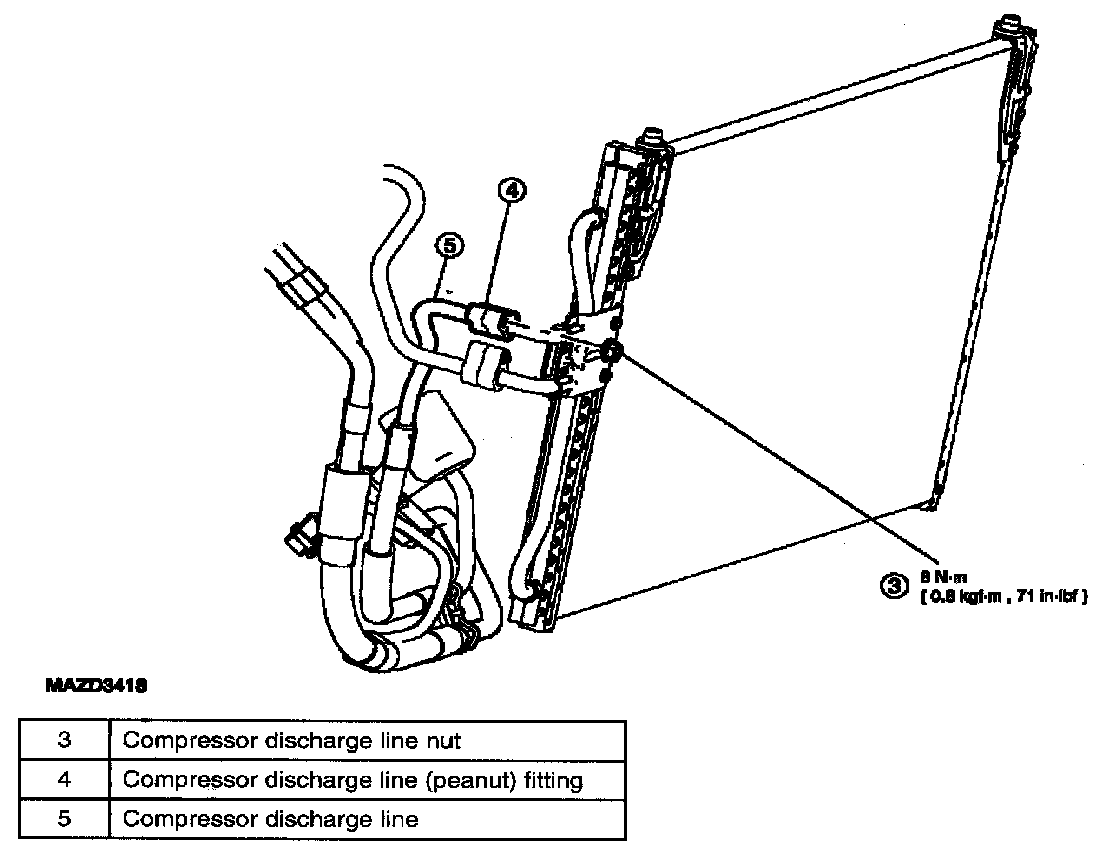

Compressor To Condenser Line Part 2:
