Disassembly/Assembly

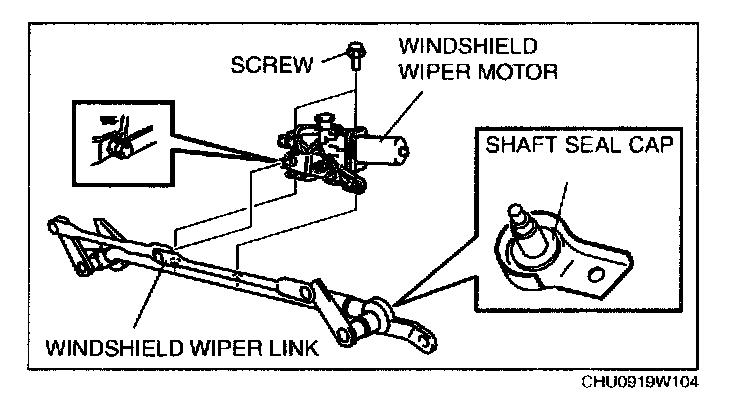

WINDSHIELD WIPER MOTOR DISASSEMBLY/ASSEMBLY




1. Disconnect the negative battery cable.
2. Remove the windshield wiper arm and blade.
3. Remove the cowl grille.
4. Disconnect the connector.
5. Detach the connecting part between the windshield wiper motor and the windshield wiper link.
6. Remove the screws, then remove the windshield wiper motor.
7. Assemble in the reverse order of disassembly.
8. Adjust the windshield wiper arm and blade.
