WDS Scan Tool

Active Command Modes Procedure





1. Connect WDS or equivalent to the vehicle DLC-2 16-pin connector.
2. Turn the ignition switch to the ON position (engine off) or start the engine.
3. Activate active command modes using WDS or equivalent.

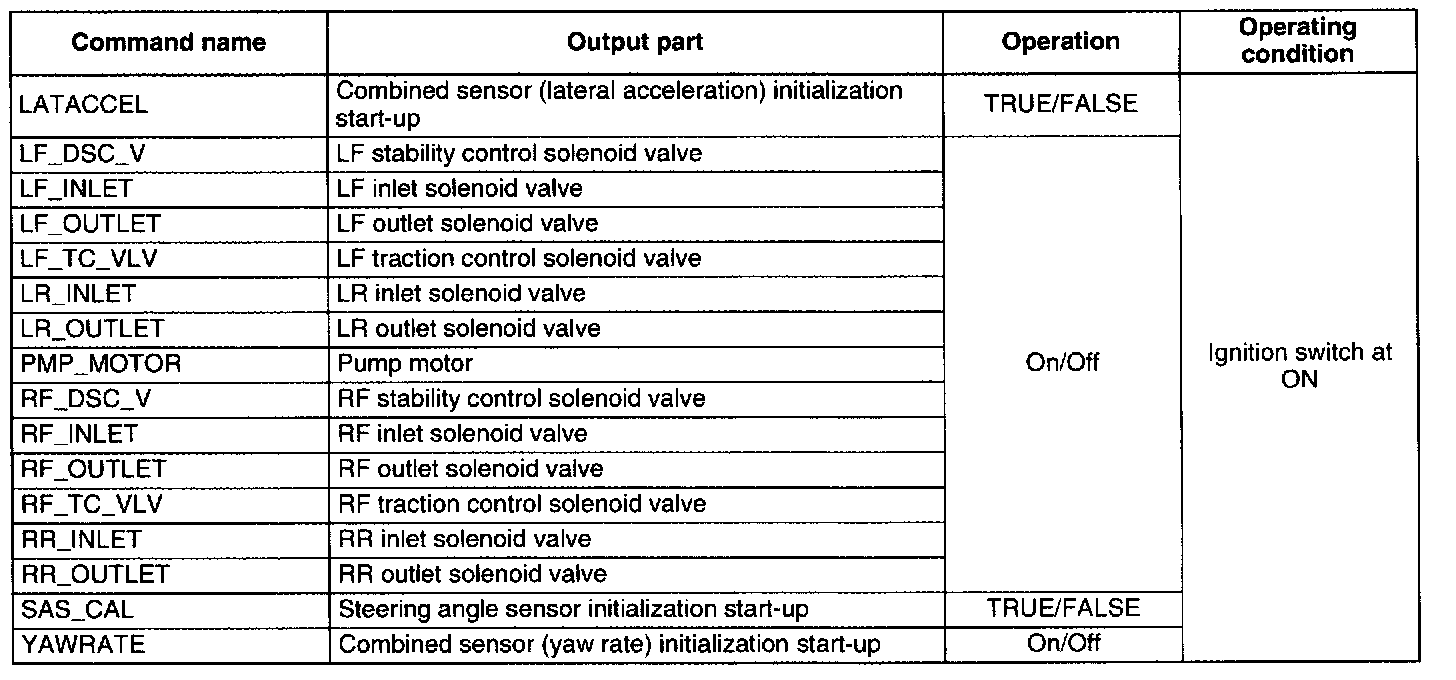

Active Command Modes Table
