Trunk / Liftgate Lock Cylinder: Service and Repair

TRUNK KEY CYLINDER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the trunk end trim.




3. Detach the rod.

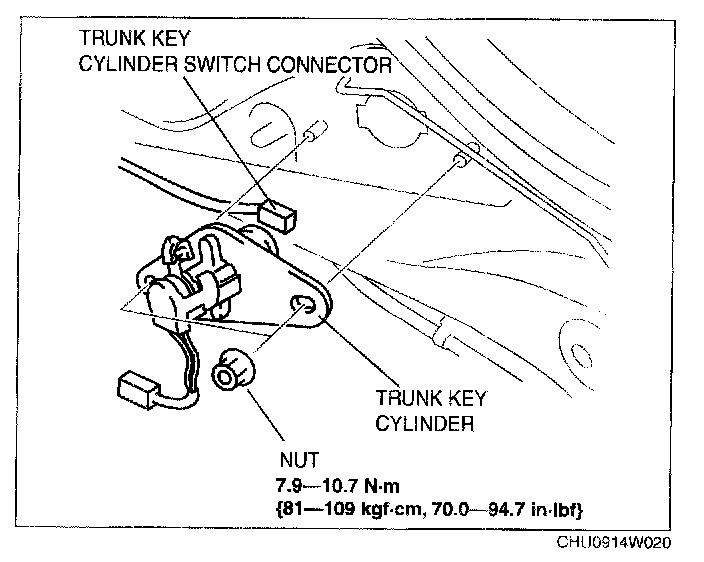

4. Remove the nuts, then remove the trunk key cylinder.
5. Install in the reverse order of removal.
