Home >> Mazda >> 2005 >> RX-8 Sport, 1.3 N >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic (Engine Control System 13BMSP] >> DTC P2004 >> Notes

DTC P2004: Notes

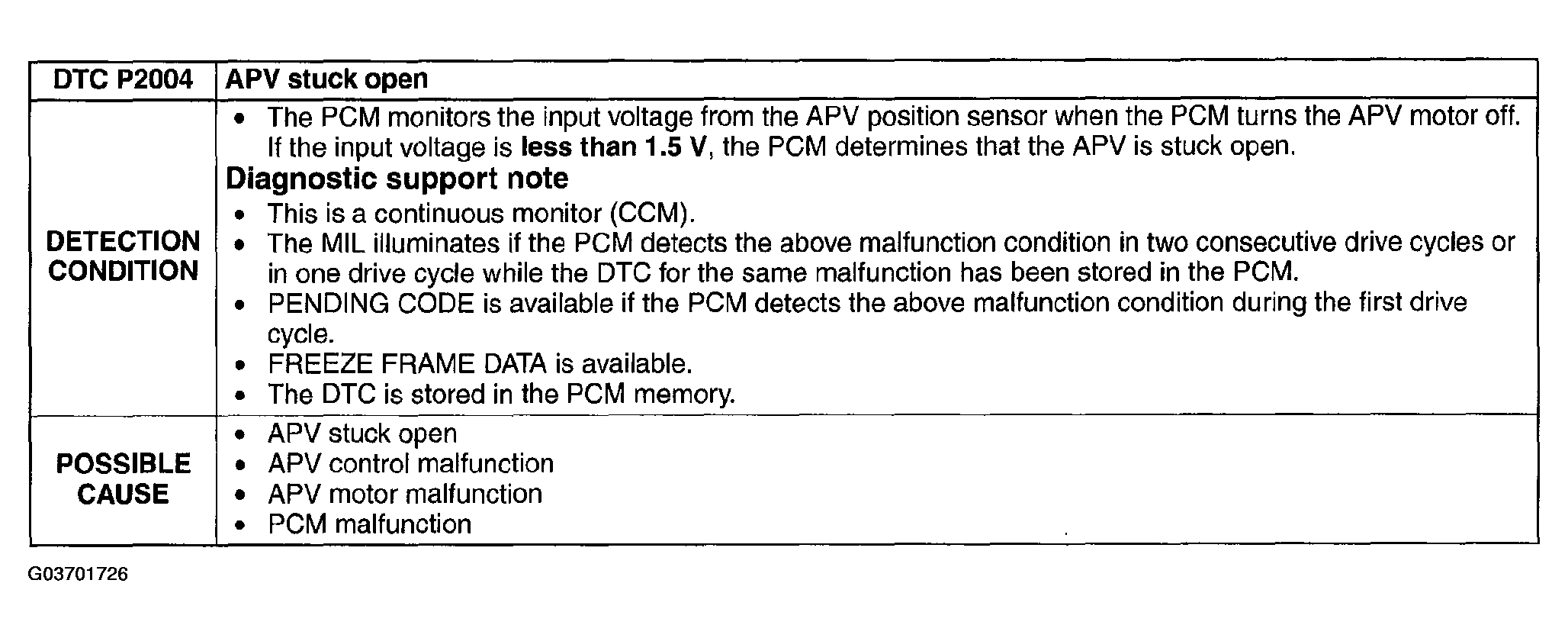

Fig 1: DTC P2004 Detection Condition & Possible Cause

G03701726

Courtesy of MAZDA MOTORS CORP.
