Home >> Mazda >> 2005 >> RX-8 Shinka, 1.3 3 >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic (Engine Control System 13BMSP] >> DTC P1686 >> Notes

DTC P1686: Notes

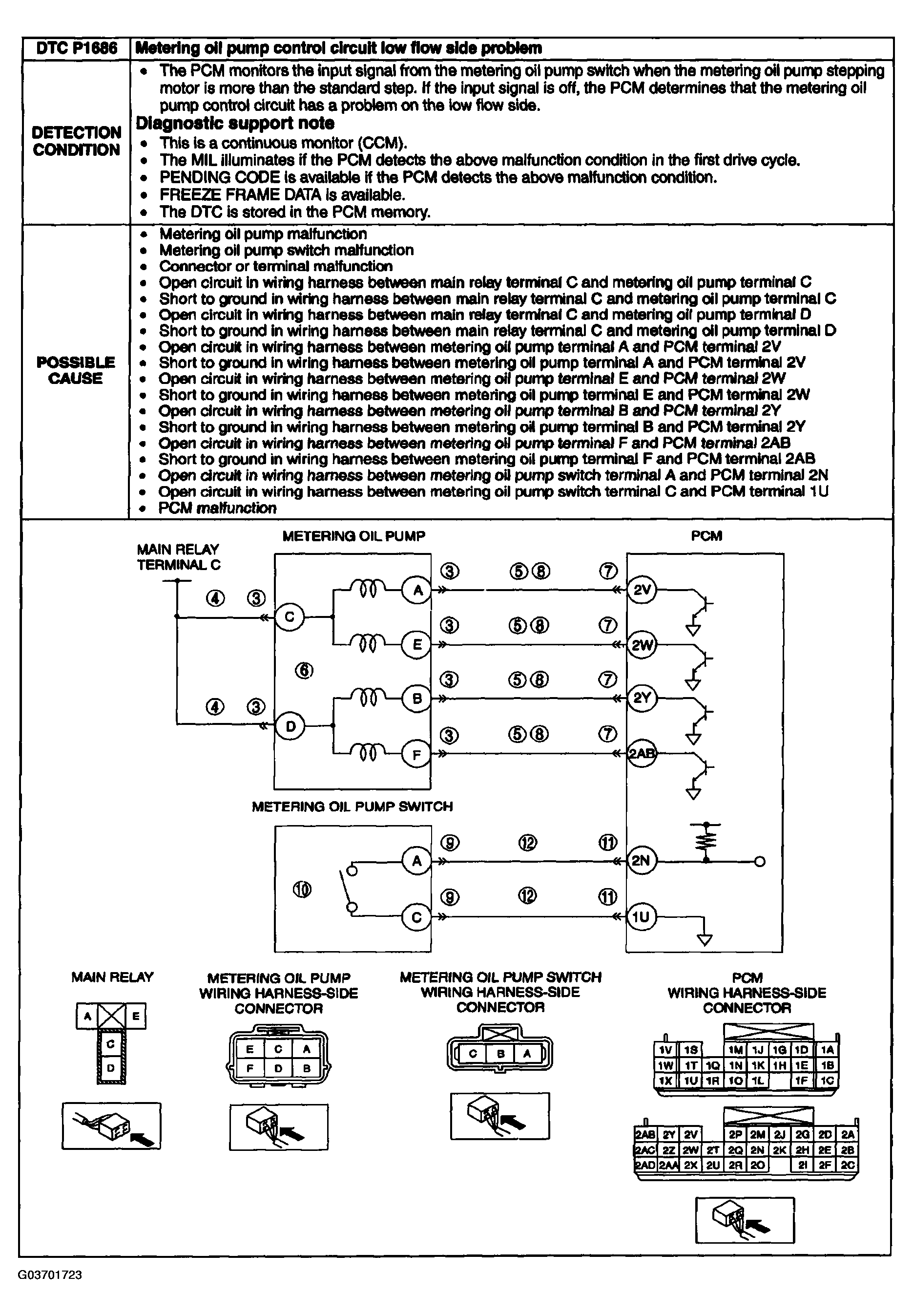

Fig 1: DTC P1686 Detection Condition & Possible Cause

G03701723

Courtesy of MAZDA MOTORS CORP.
