DTC P0130: Notes

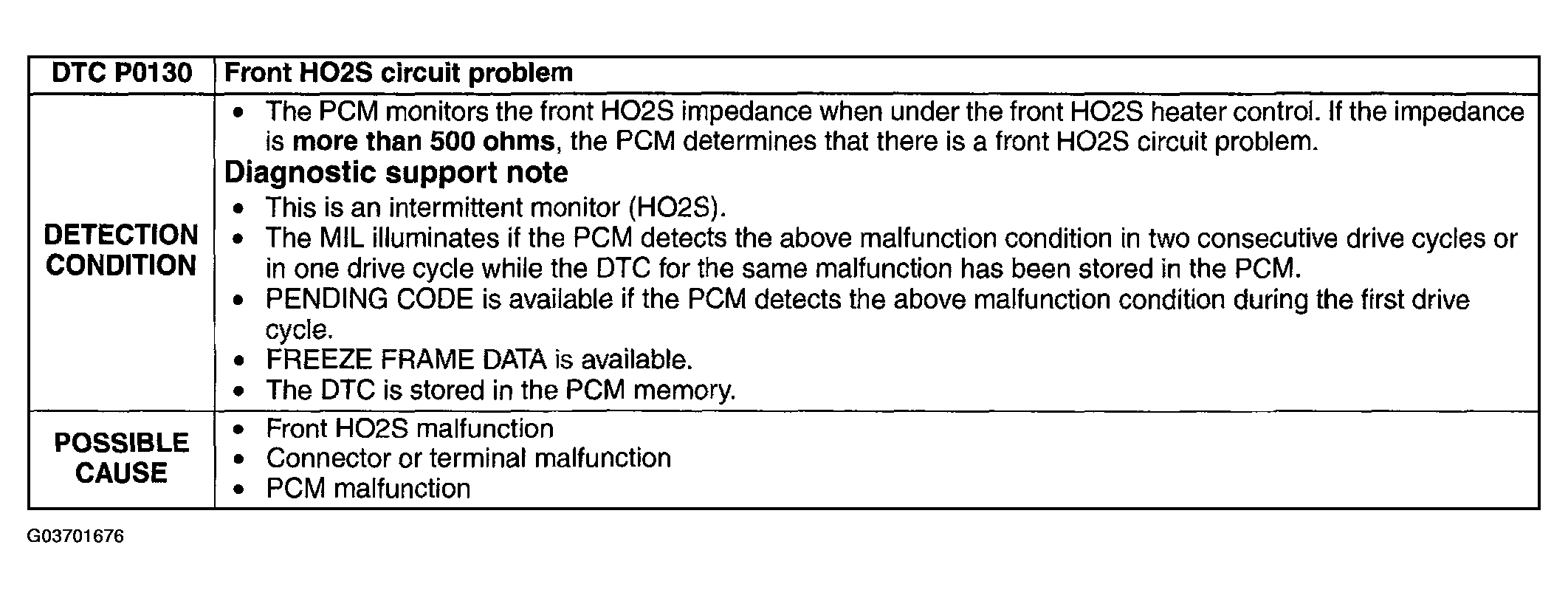

Fig 1: DTC P0130 Detection Condition & Possible Cause

G03701676

Courtesy of MAZDA MOTORS CORP.
