Home >> Mazda >> 2005 >> RX-8 Shinka, 1.3 3 >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic (Engine Control System 13BMSP] >> DTC P0113 >> Notes

DTC P0113: Notes

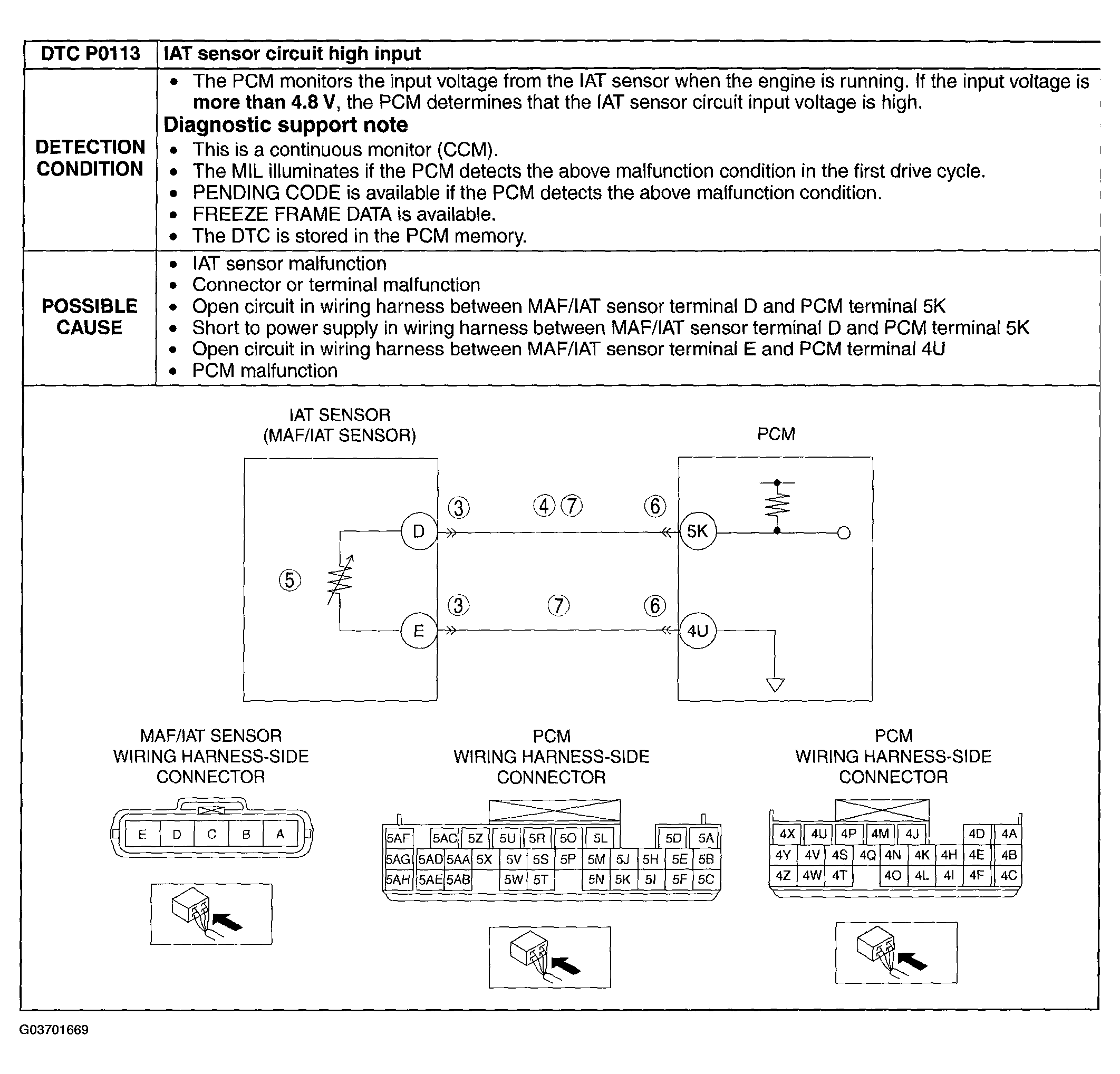

Fig 1: DTC P0113 Detection Condition & Possible Cause

G03701669

Courtesy of MAZDA MOTORS CORP.
