ECT sensor characteristics graph (reference)

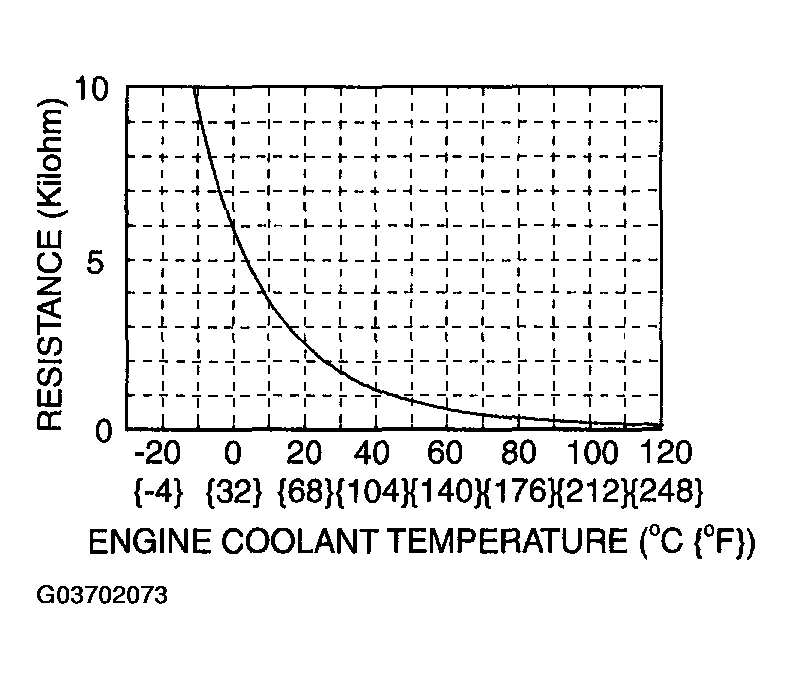

Fig 1: Identifying ECT Sensor Characteristics Graph

G03702073

Courtesy of MAZDA MOTORS CORP.
