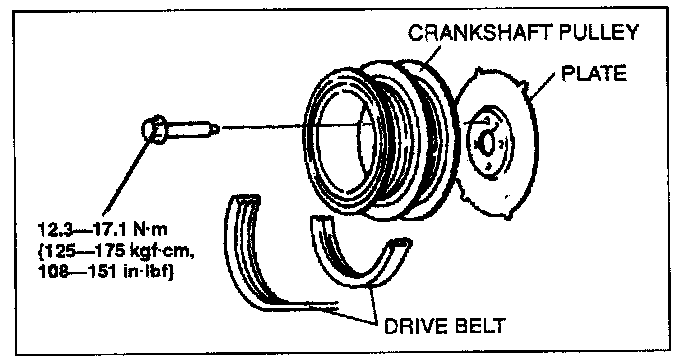

Plate Removal/Installation

PLATE REMOVAL/INSTALLATION




1. Remove the drive belt.
2. Remove the crankshaft pulley.
3. Remove the plate.
4. Install in the reverse order of removal.

NOTE: Adjust the drive belt when installing the drive belt. (See DRIVE BELT ADJUSTMENT.)
