Wire Assembly Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

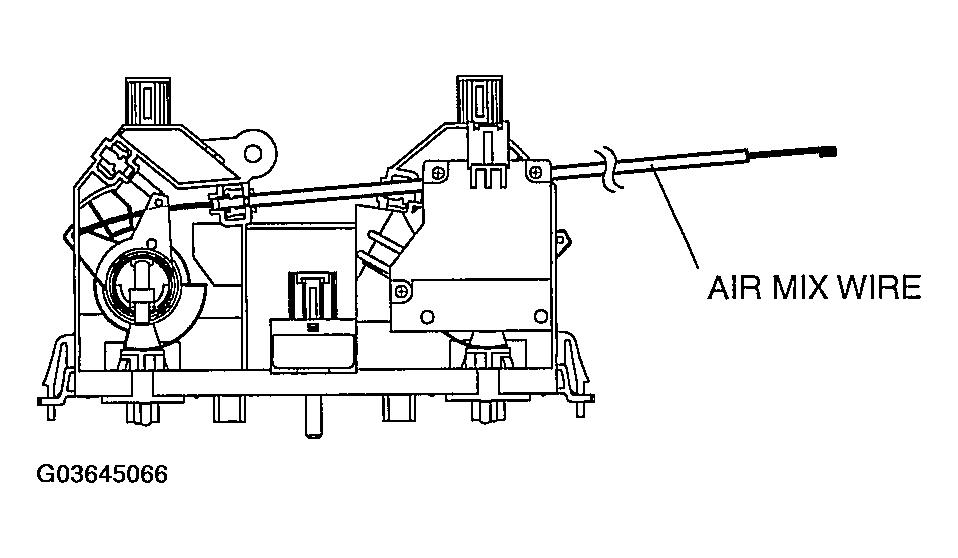

  1. Assemble the wire to the position as shown in the figure.
    Fig 1: Installing Wire
    G03645066Courtesy of MAZDA MOTORS CORP.
