Removal and Installation

  1. Remove the camshaft position (CMP) sensor.
    1. Disconnect the electrical connector.
    2. Remove the bolt.
    3. Remove the sensor.

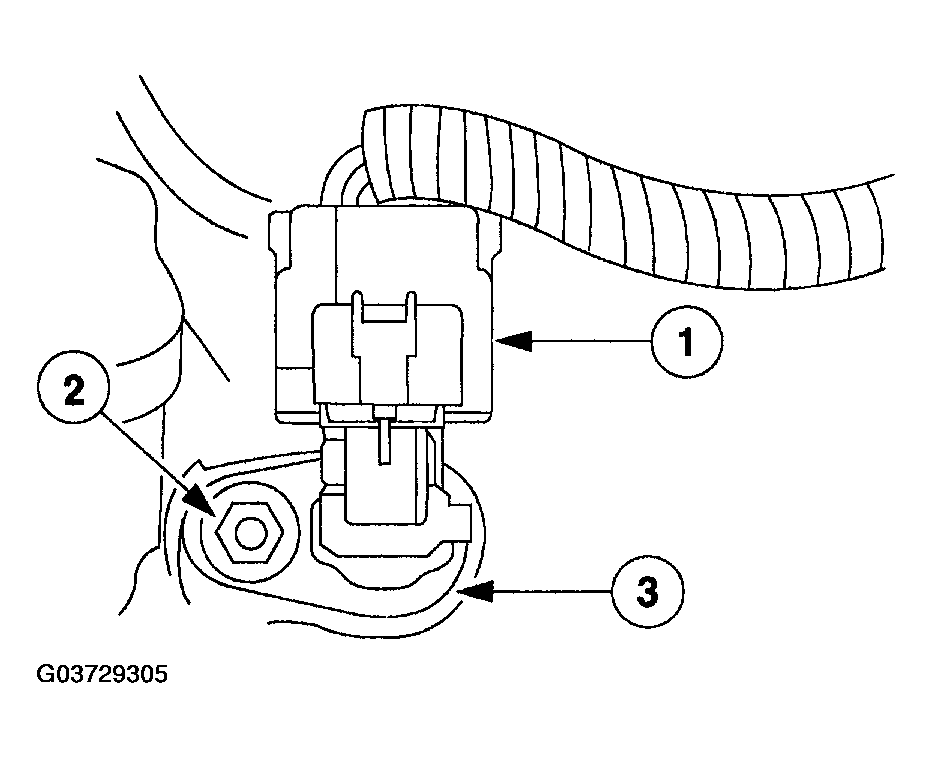

    Fig 1: Removing CMP Sensor
    G03729305Courtesy of MAZDA MOTORS CORP.
  2. To install, reverse the removal procedure.

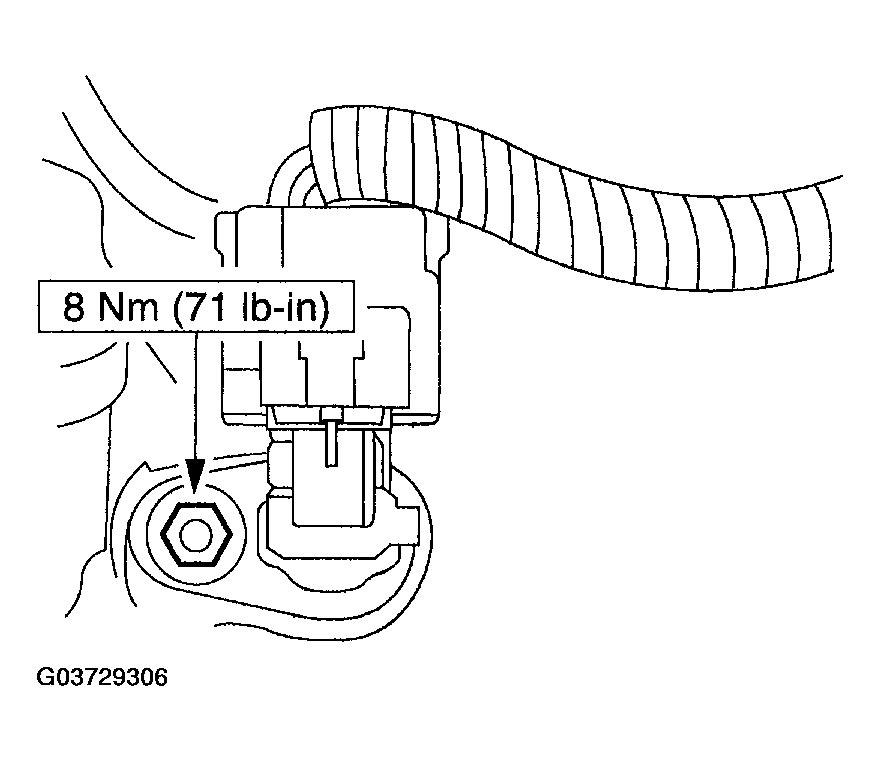

    Fig 2: Installing CMP Sensor - With Torque Specification
    G03729306Courtesy of MAZDA MOTORS CORP.
