System Specifications
General Specifications

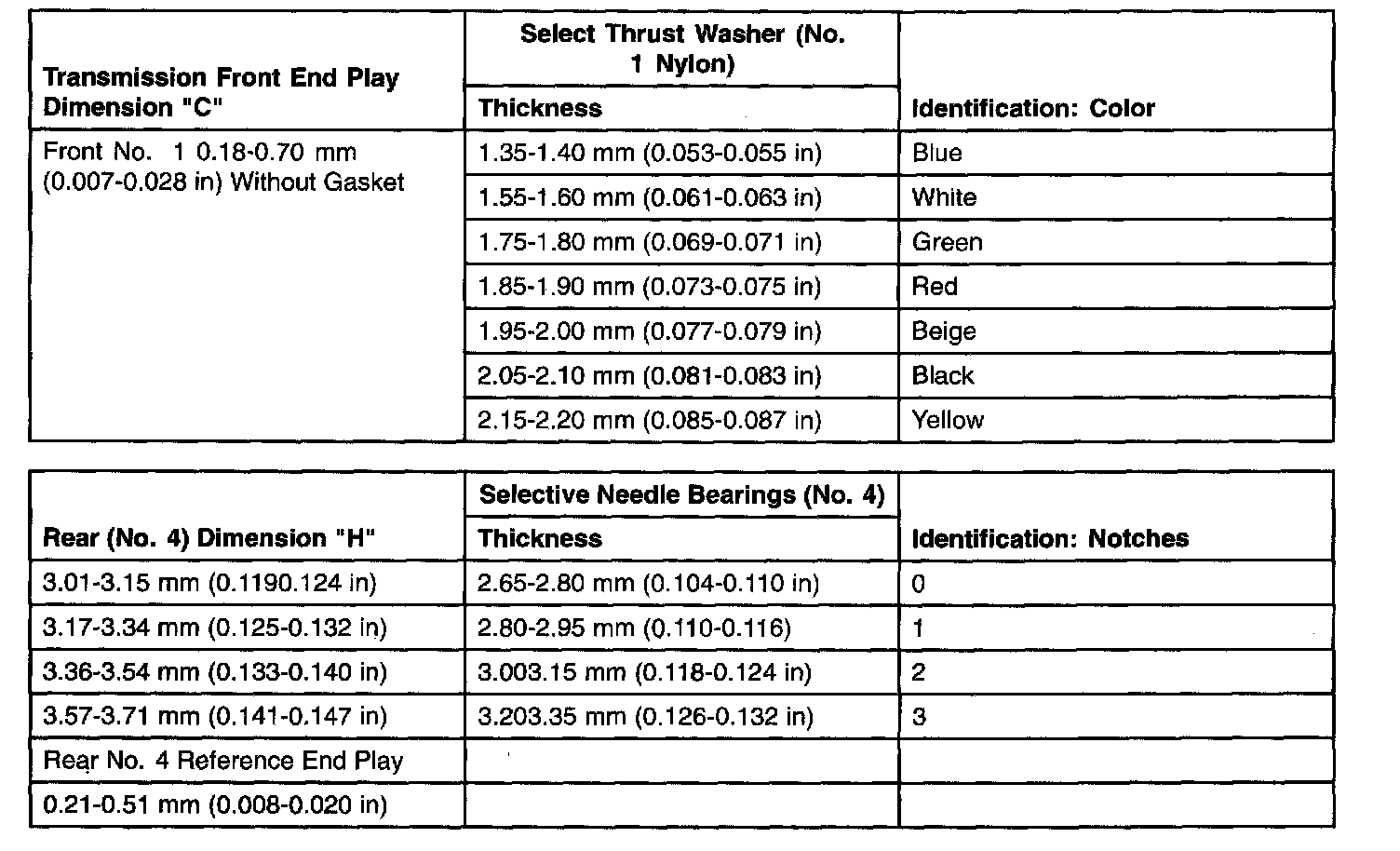

End Play Specifications (5R55E / 5R44E)
Torque Converter End Play Specifications (51344E and 51155E)
Band Adjustment And Torque Chart (5R44E and 5R55E)

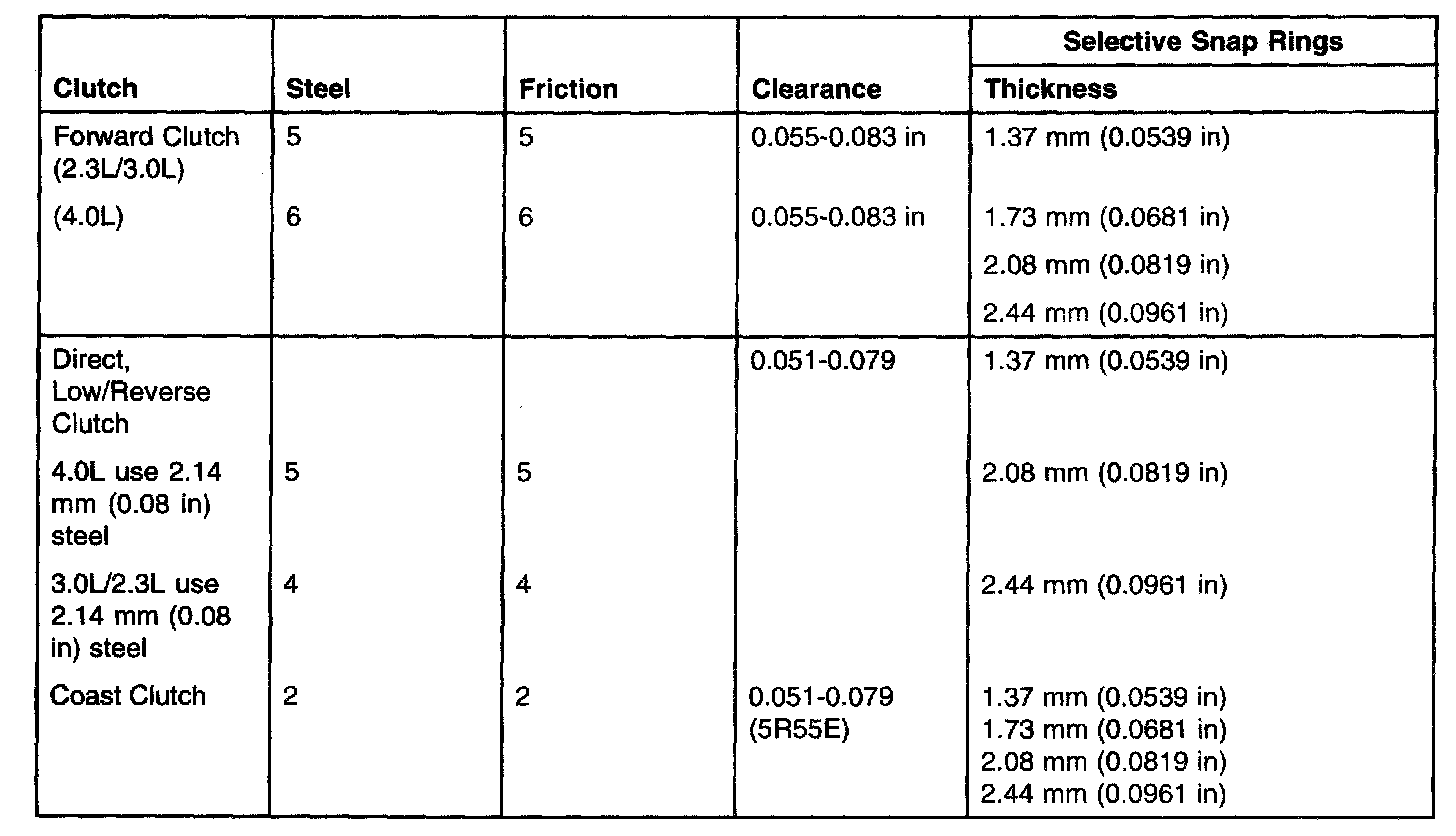

Clutch Plate Usage And Clearance Specifications (5R44E / 5R55E)
Selective Snap Rings (5R44E and 5R55E)
Service Identification Model Chart (5R44E / 5R55E)

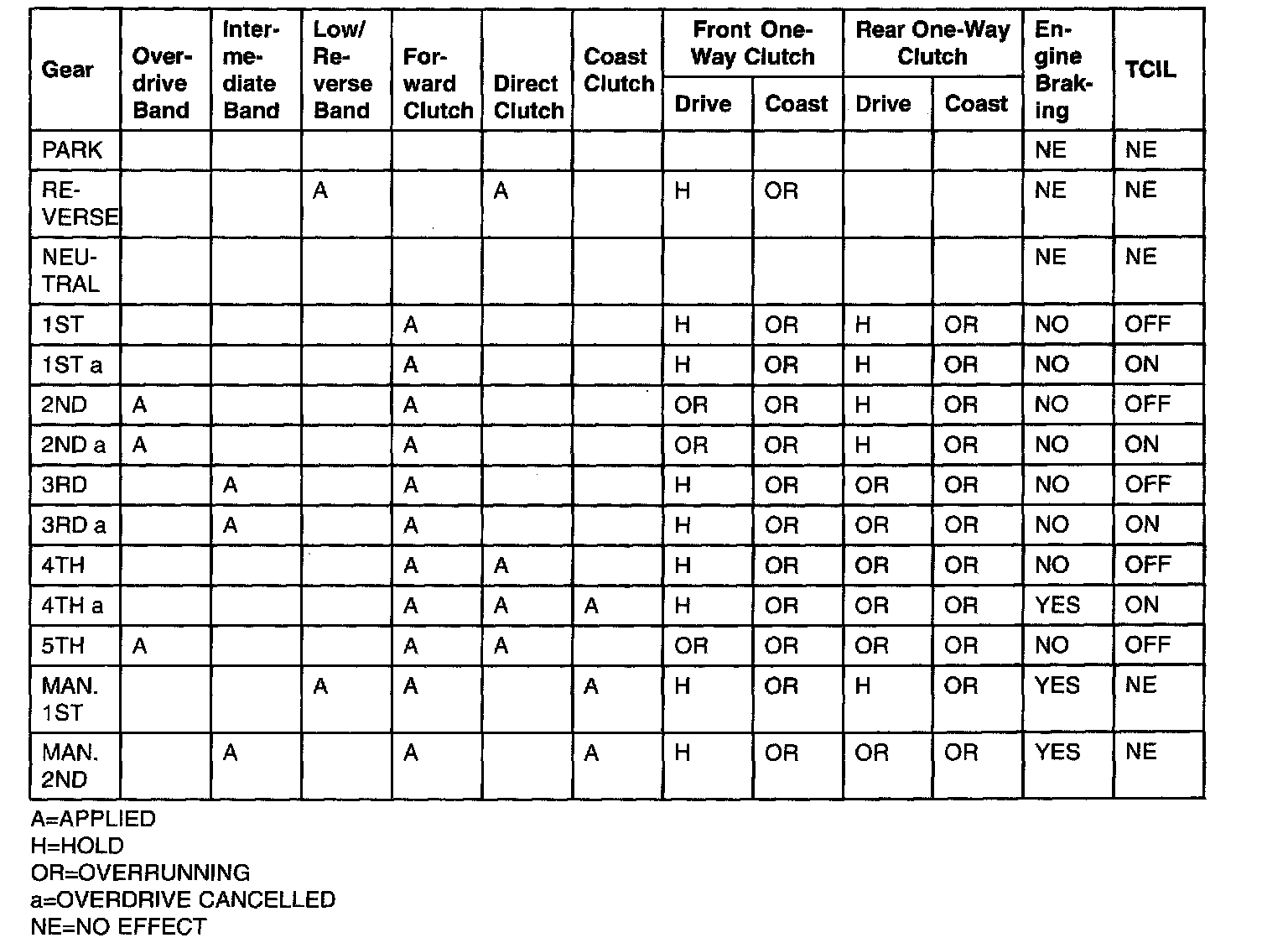

Band/Clutch Application Chart (5R44E / 5R55E)
