LEMON Manuals: Even more car manuals for everyone
Home >> Mazda >> 2005 >> B2300 L4-2.3L VIN D >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Locations

Relay Box: Locations










Fuse Box Locations

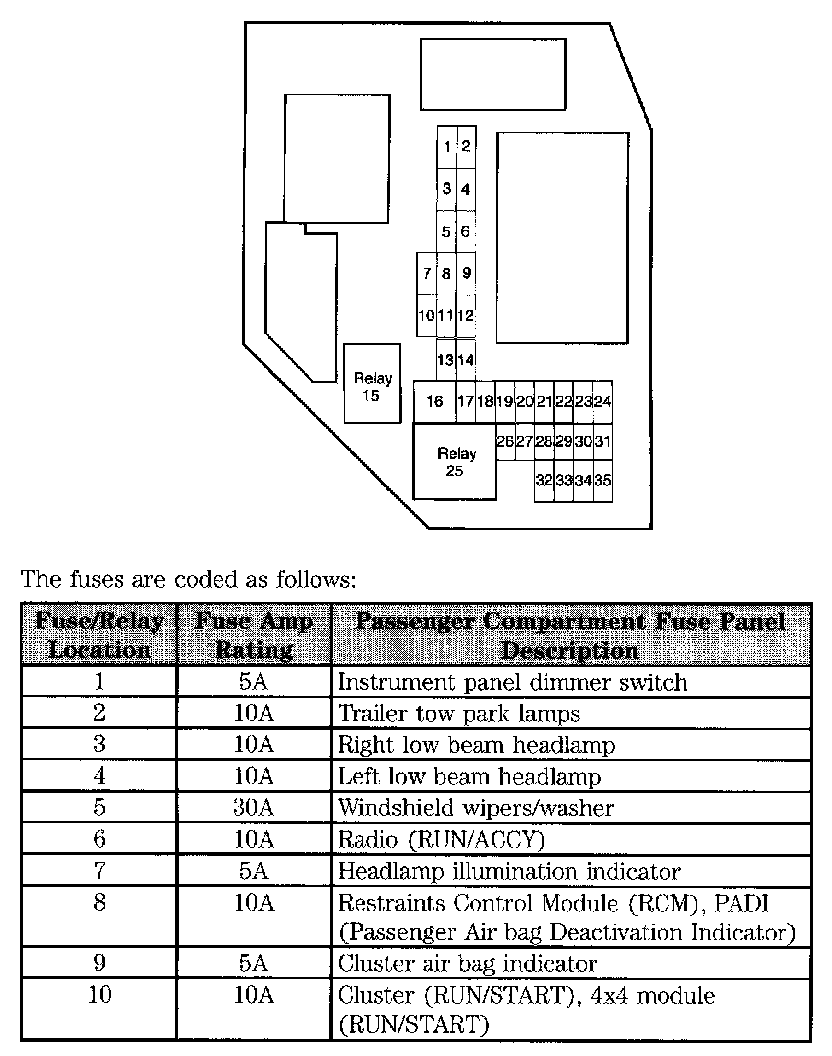

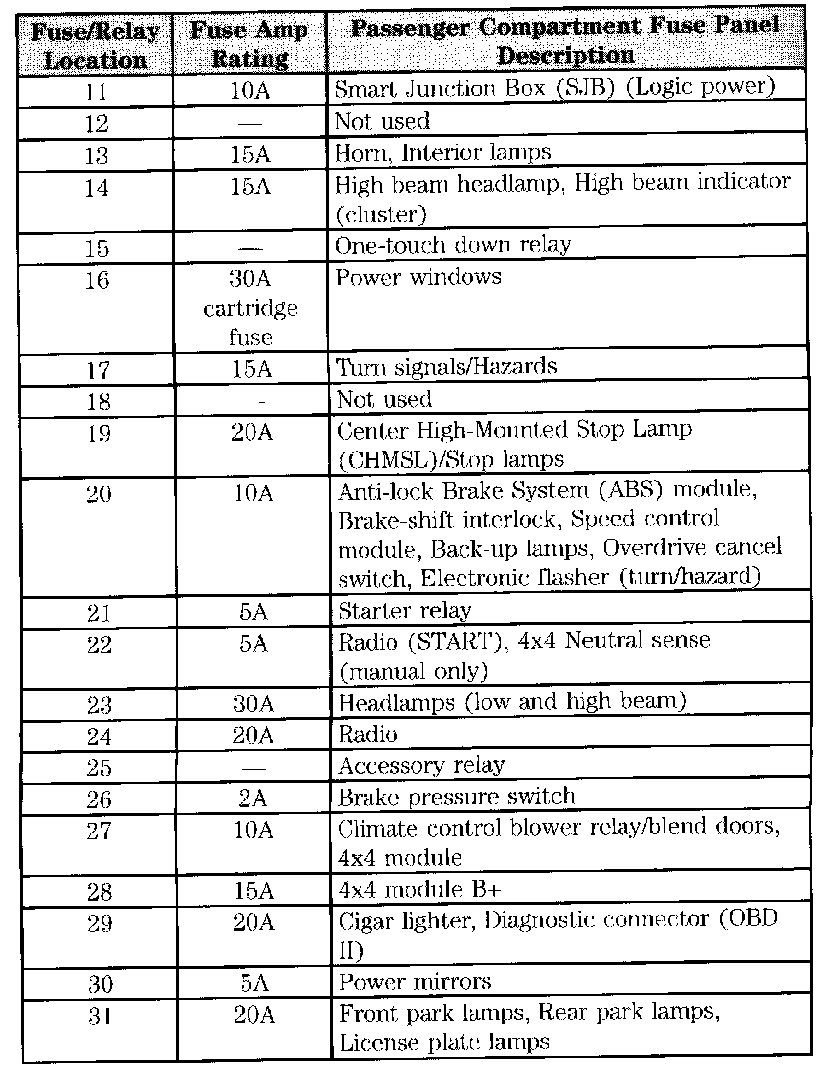

Fuse ID Passenger Compartment Box

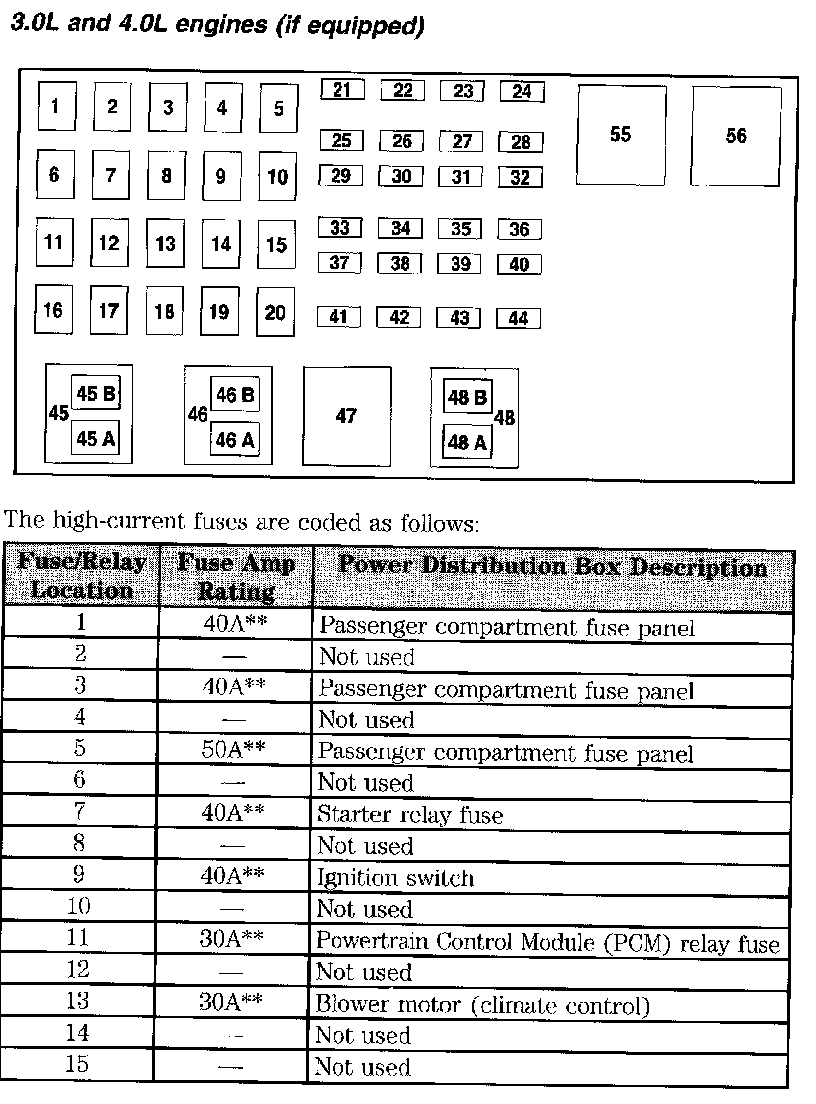

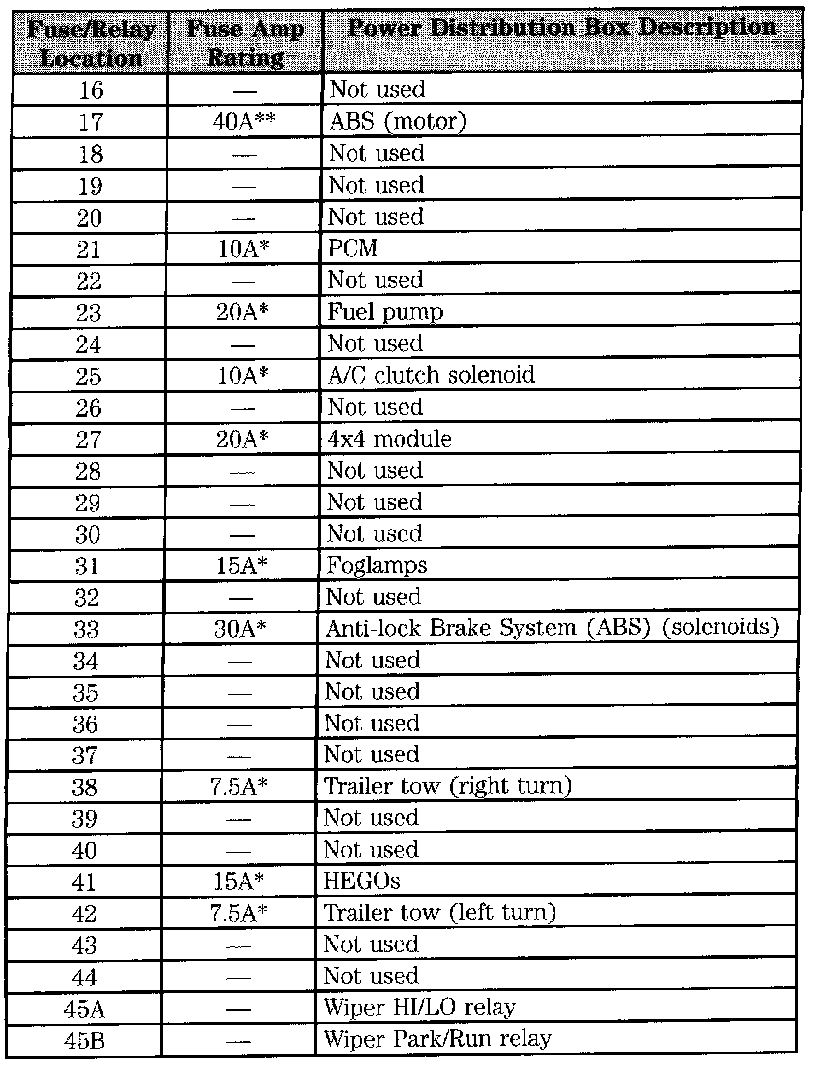

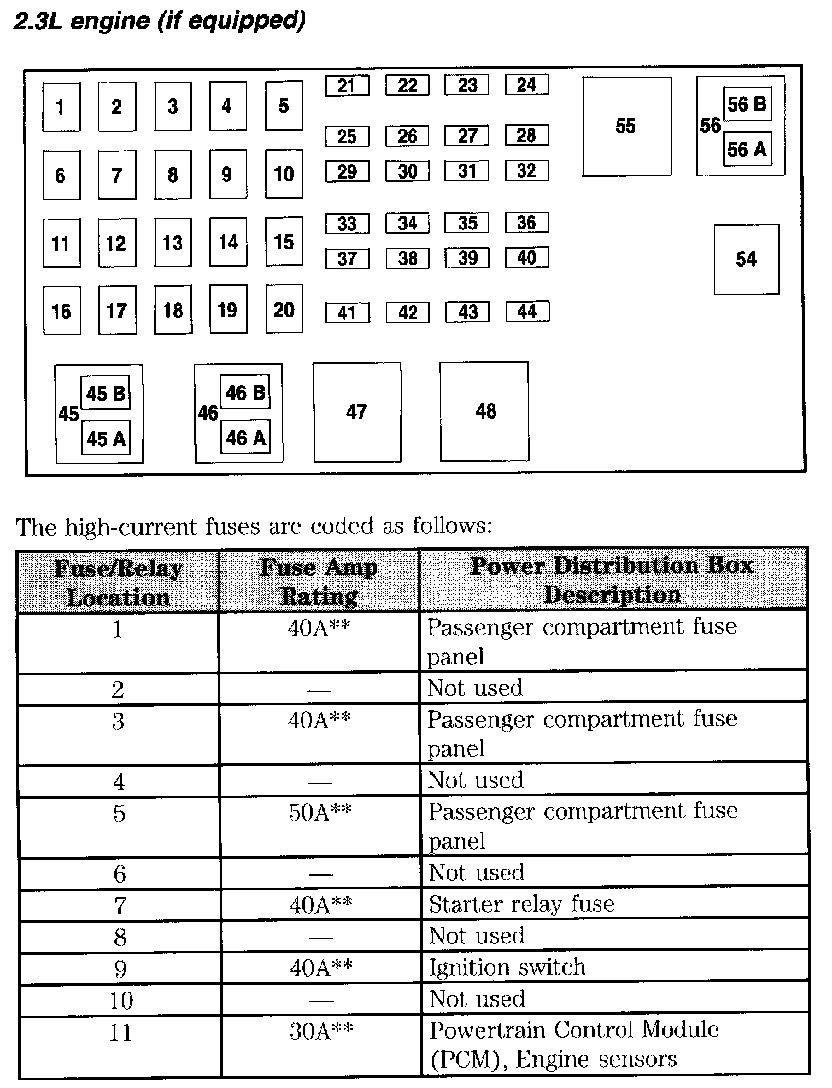

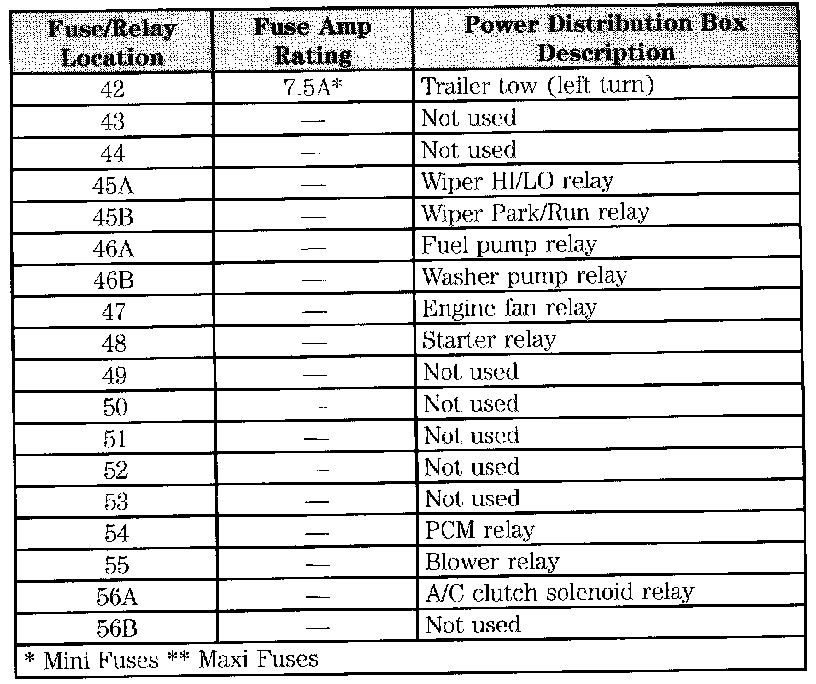

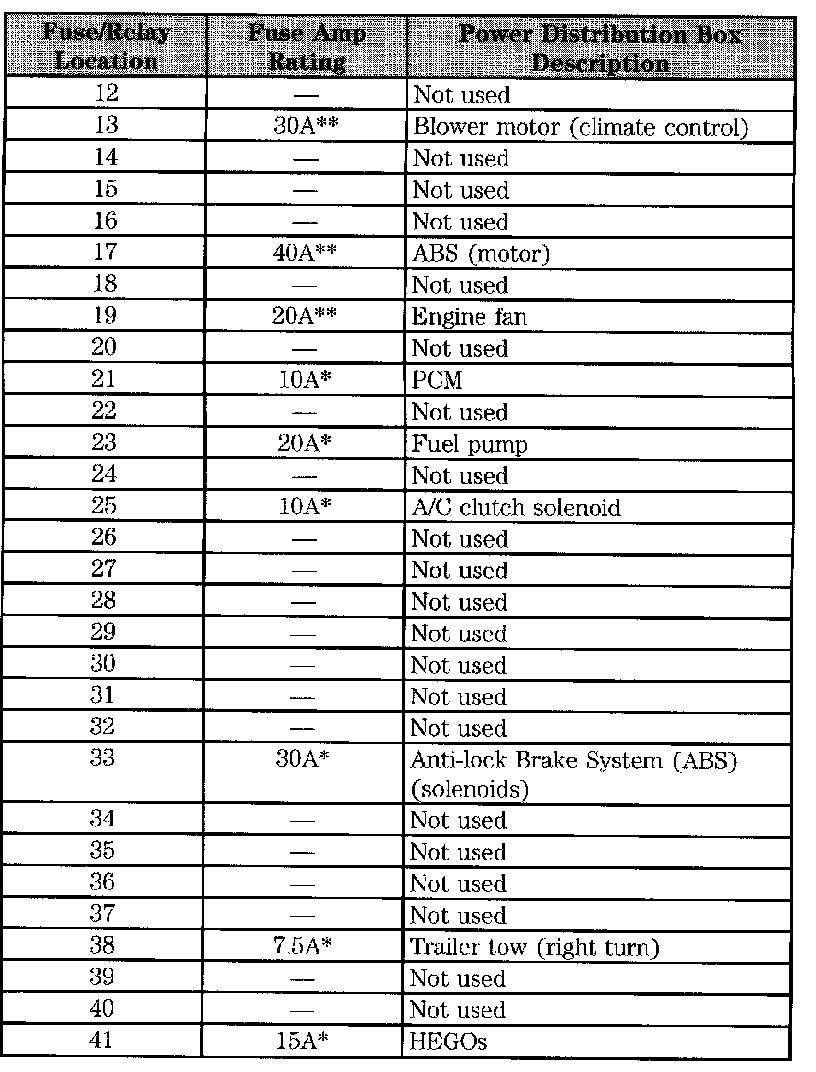

Fuse ID Engine Compartment
