Audio Control Switch Installation Note

  1. Install the audio control switch so that the audio control switch wiring harness passes behind the steering wheel as shown in the figure.

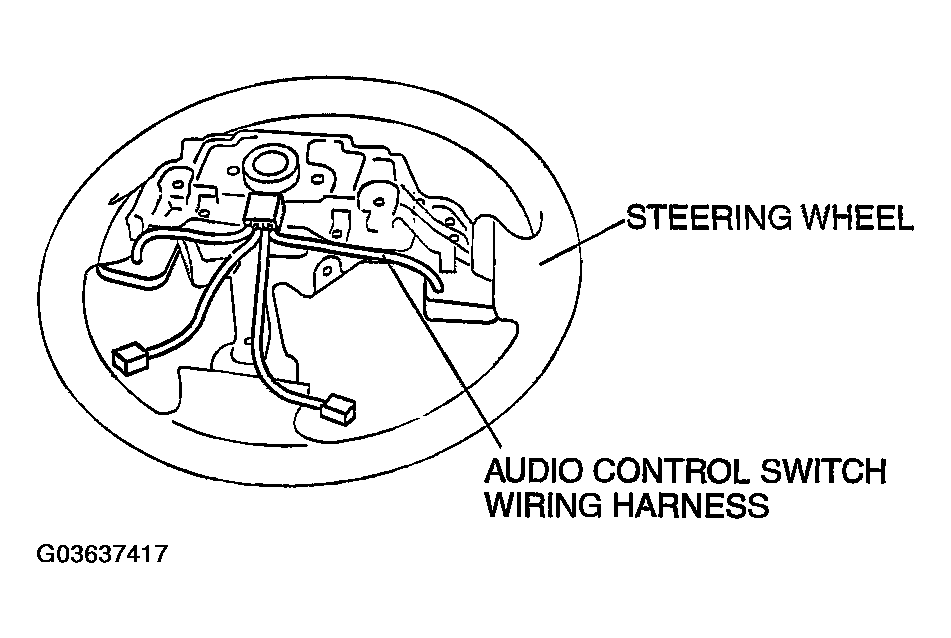

    Fig 1: Installing Audio Control Switch
    G03637417Courtesy of MAZDA MOTORS CORP.
