Home >> Mazda >> 2004 >> Tribute DX, 4WD >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle >> Output Shaft >> Notes

Output Shaft: Notes

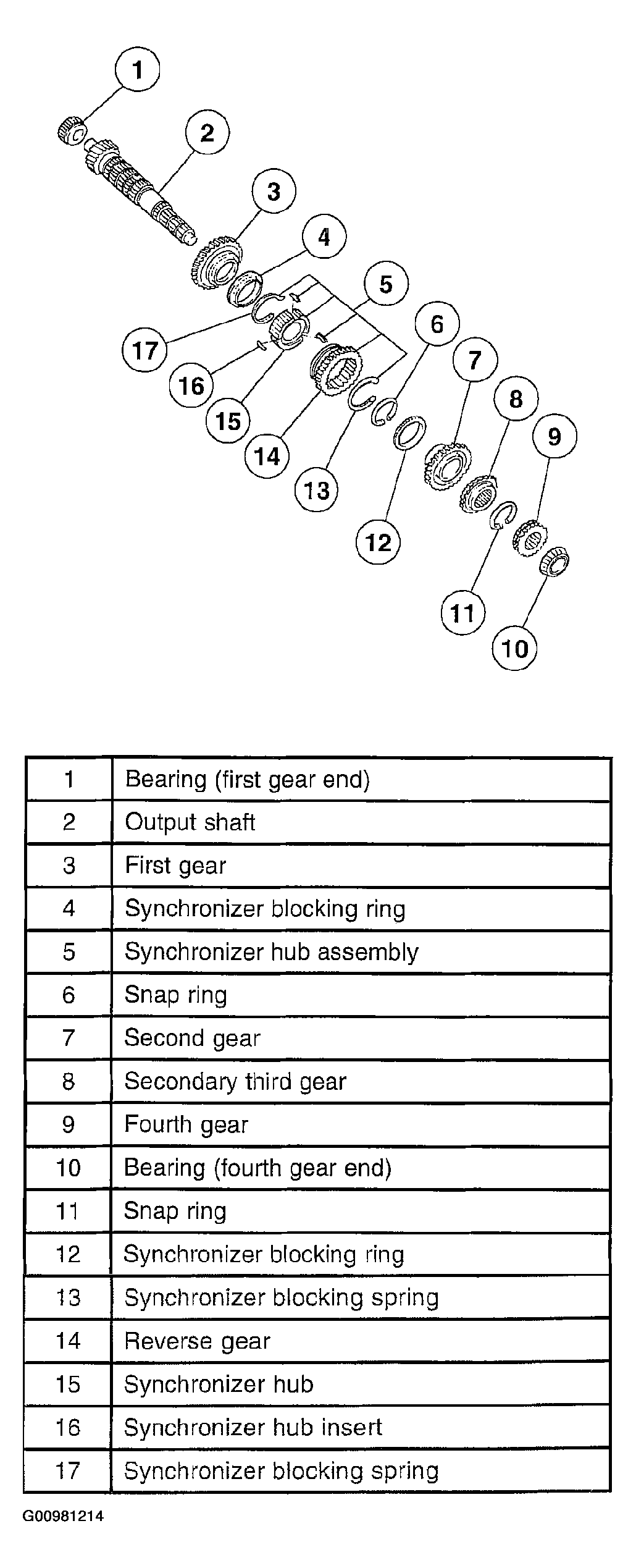

Fig 1: Disassembling Output Shaft

G00981214

Courtesy of MAZDA MOTORS CORP.
