Engine Control Module






PID/Data Monitor Reference Value (3.0L A/T) Part 1:






PID/Data Monitor Reference Value (3.0L A/T) Part 2:

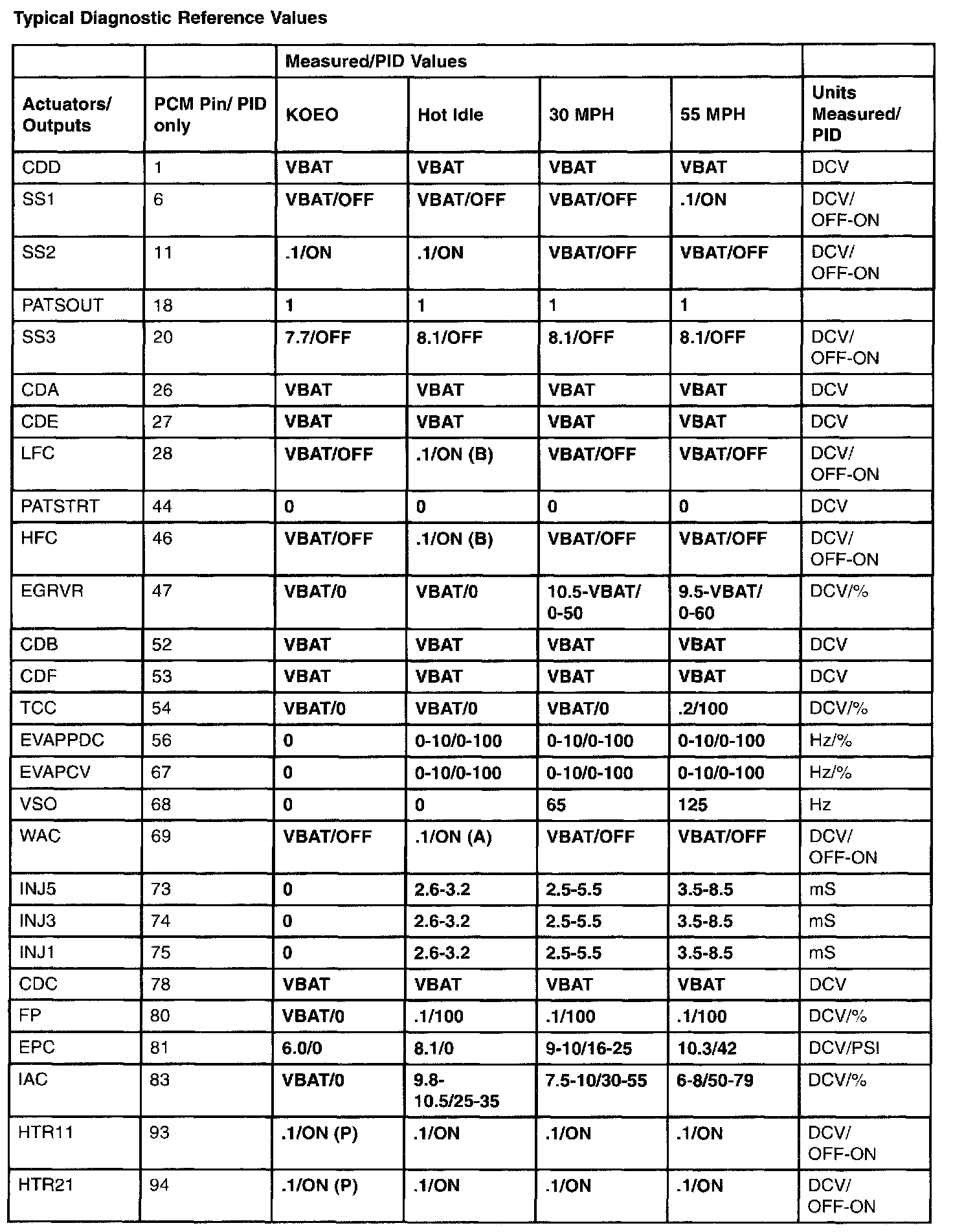

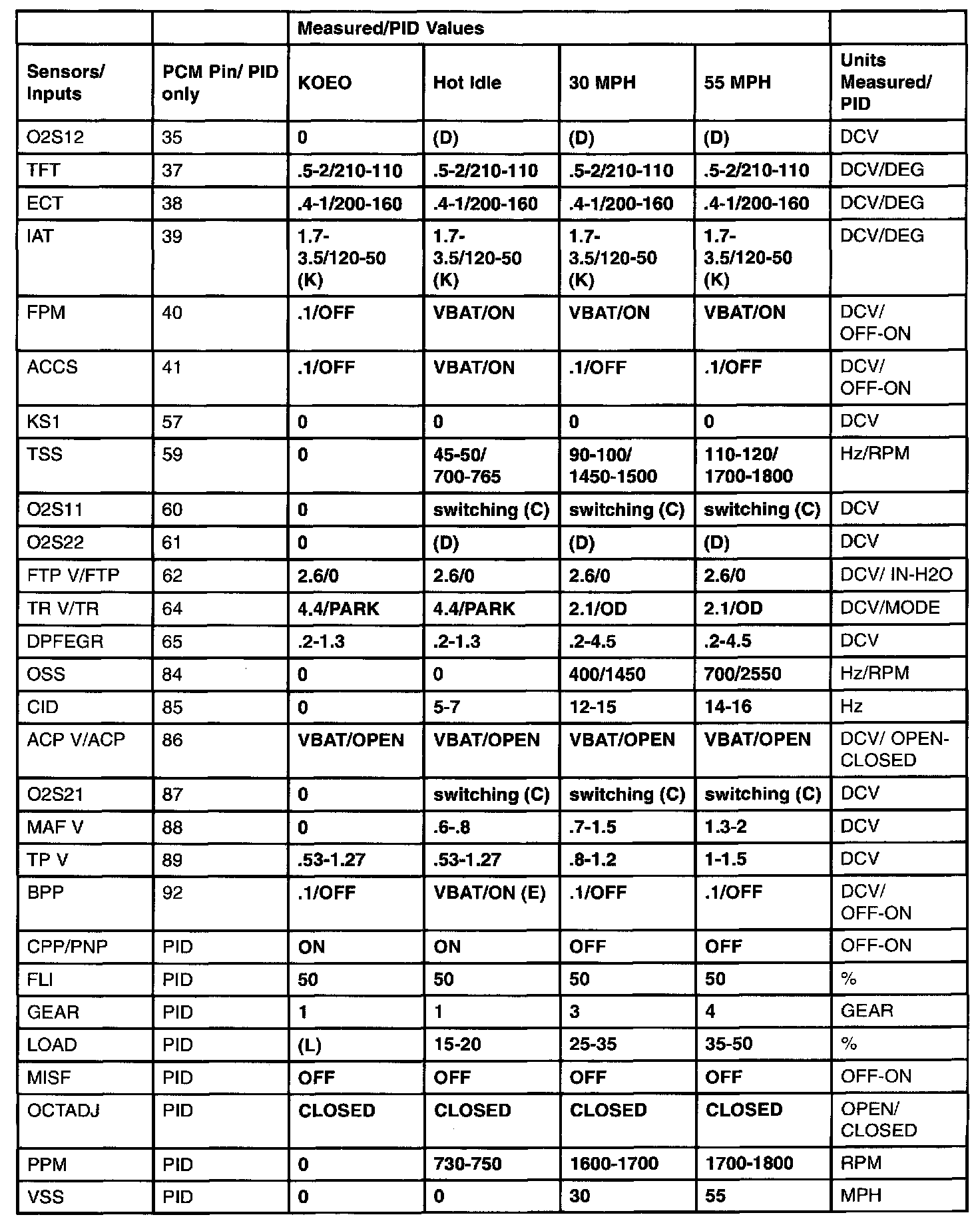

Typical Diagnostic Reference Values Part 1:

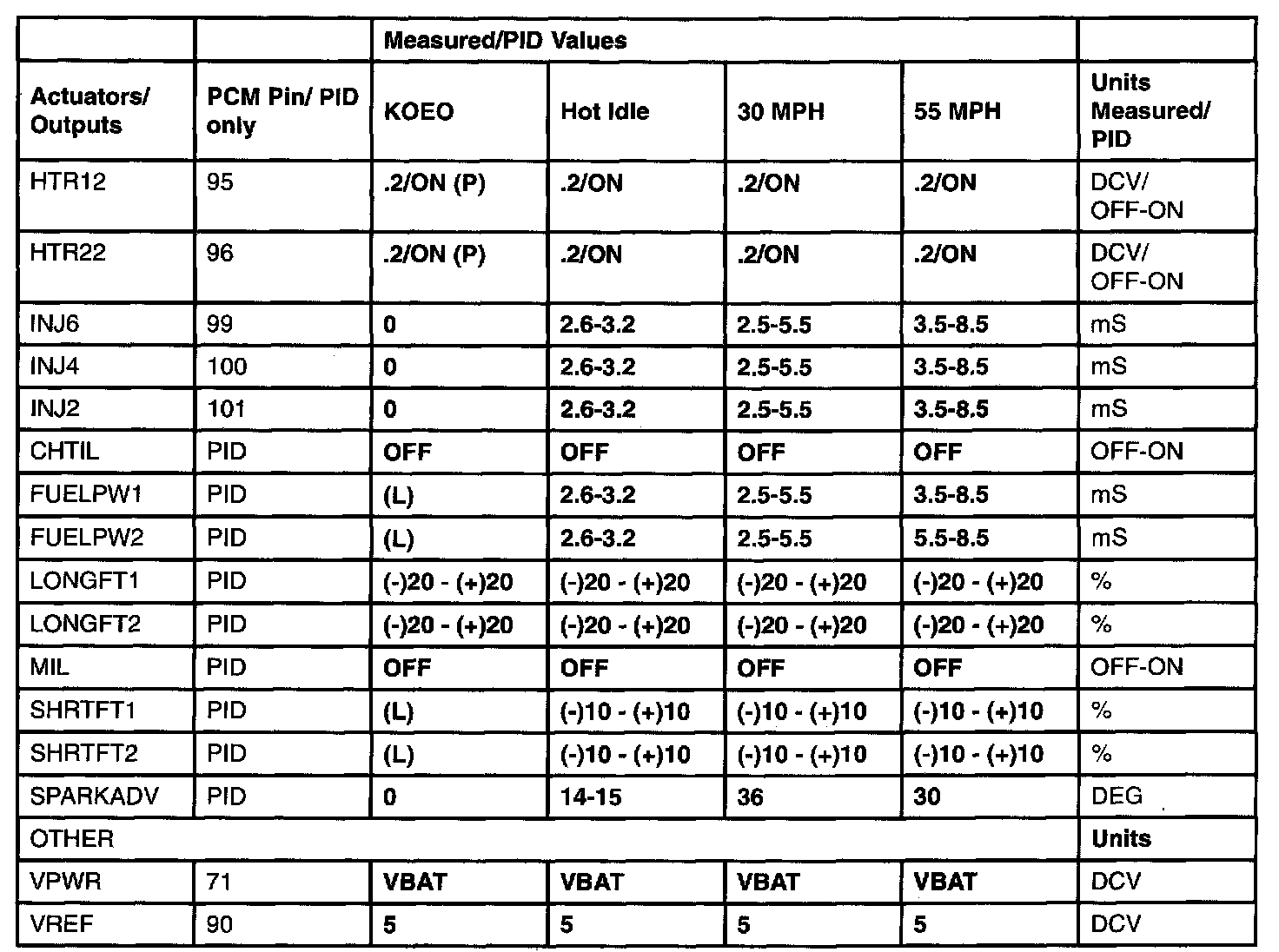

Typical Diagnostic Reference Values Part 2:
