Home >> Mazda >> 2004 >> Tribute 2WD L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Clutch >> Locations

Compressor Clutch: Locations

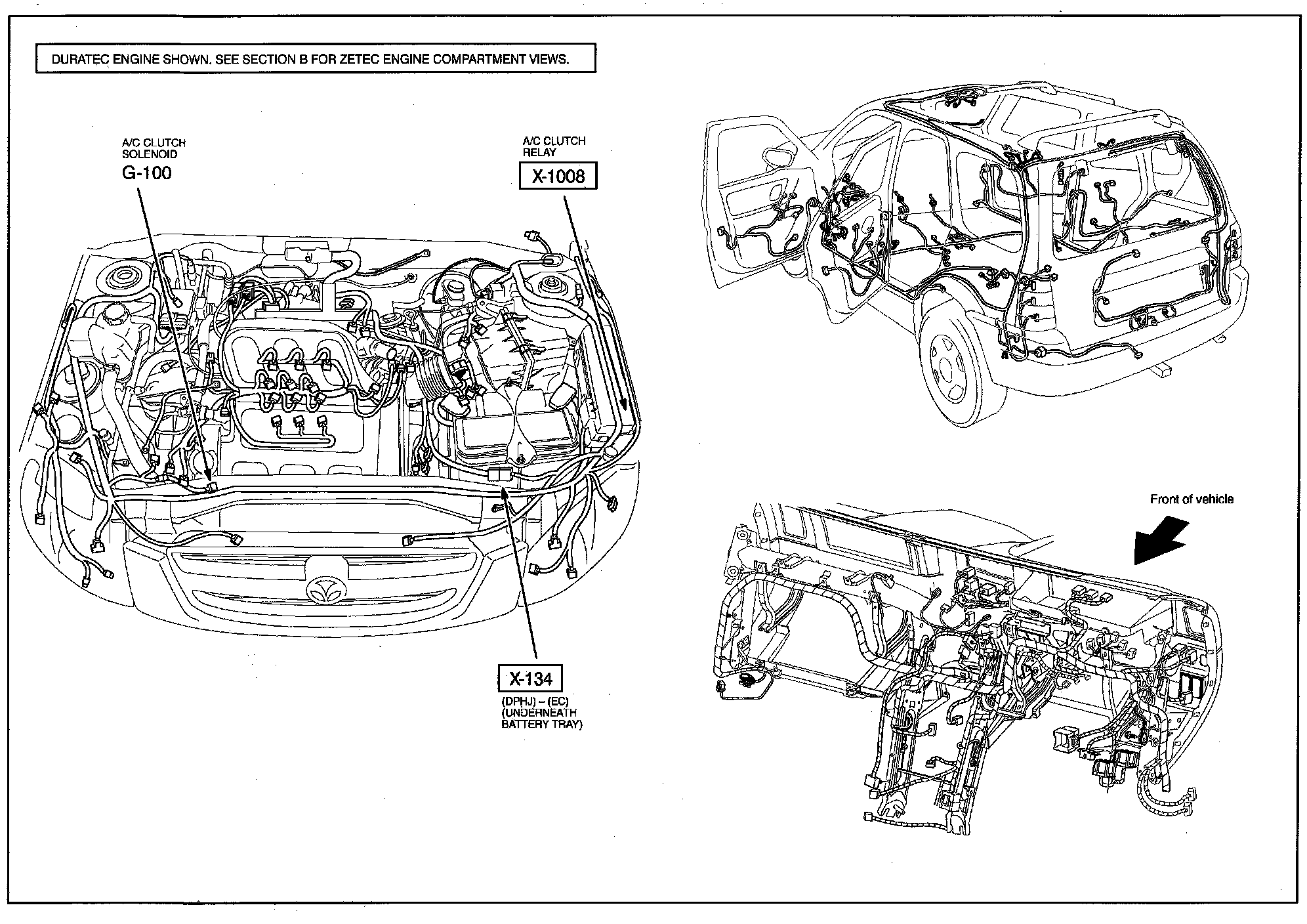

Routing View G-b:
