Ignition Switch Inspection

  1. Verify that the continuity between the ignition switch terminals is as indicated in the figure.
    • If not as indicated in the figure, replace the ignition switch.

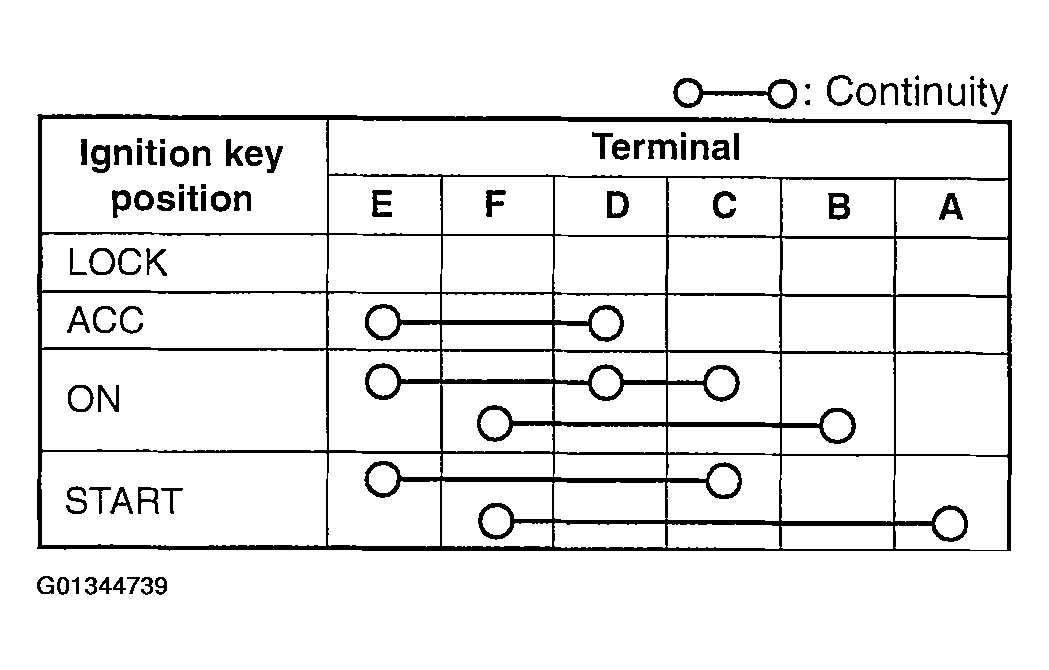

    Fig 1: Ignition Switch Terminals Continuity
    G01344739Courtesy of MAZDA MOTORS CORP.
    Fig 2: Identifying Ignition Switch Terminals Connection
    G01344740Courtesy of MAZDA MOTORS CORP.
