Home >> Mazda >> 2004 >> MX-5 Miata L4-1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Voltage Signal >> Testing and Inspection

Voltage Signal: Testing and Inspection

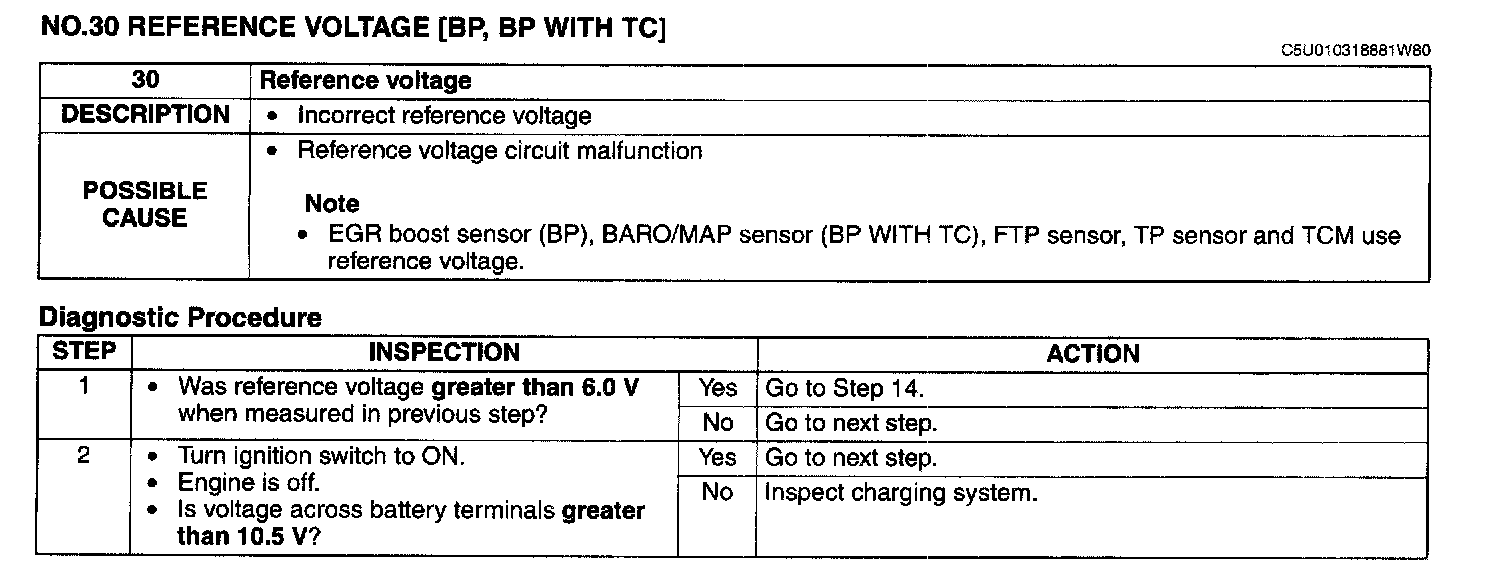

Step 1 - 2:

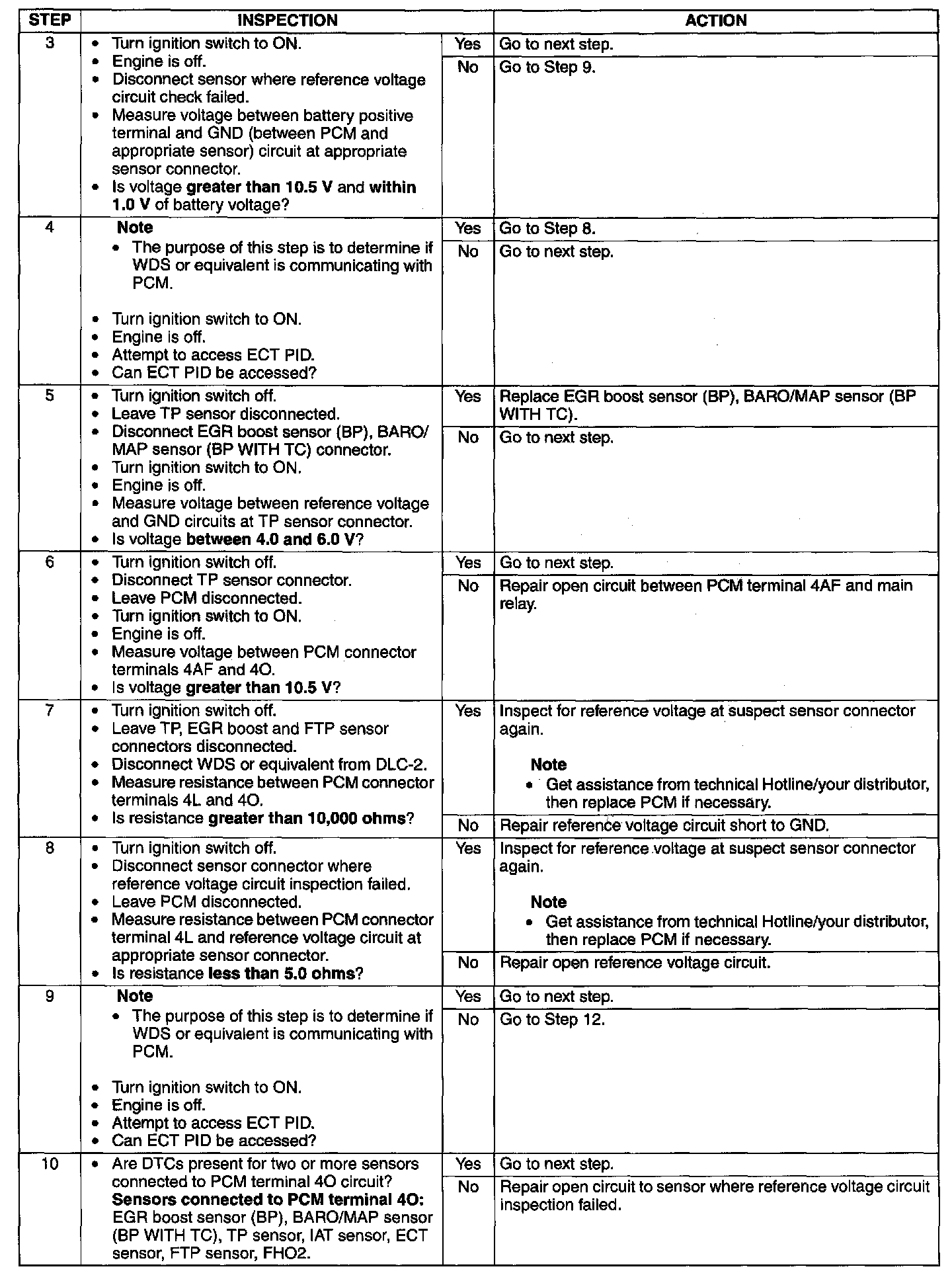

Step 3 - 10:

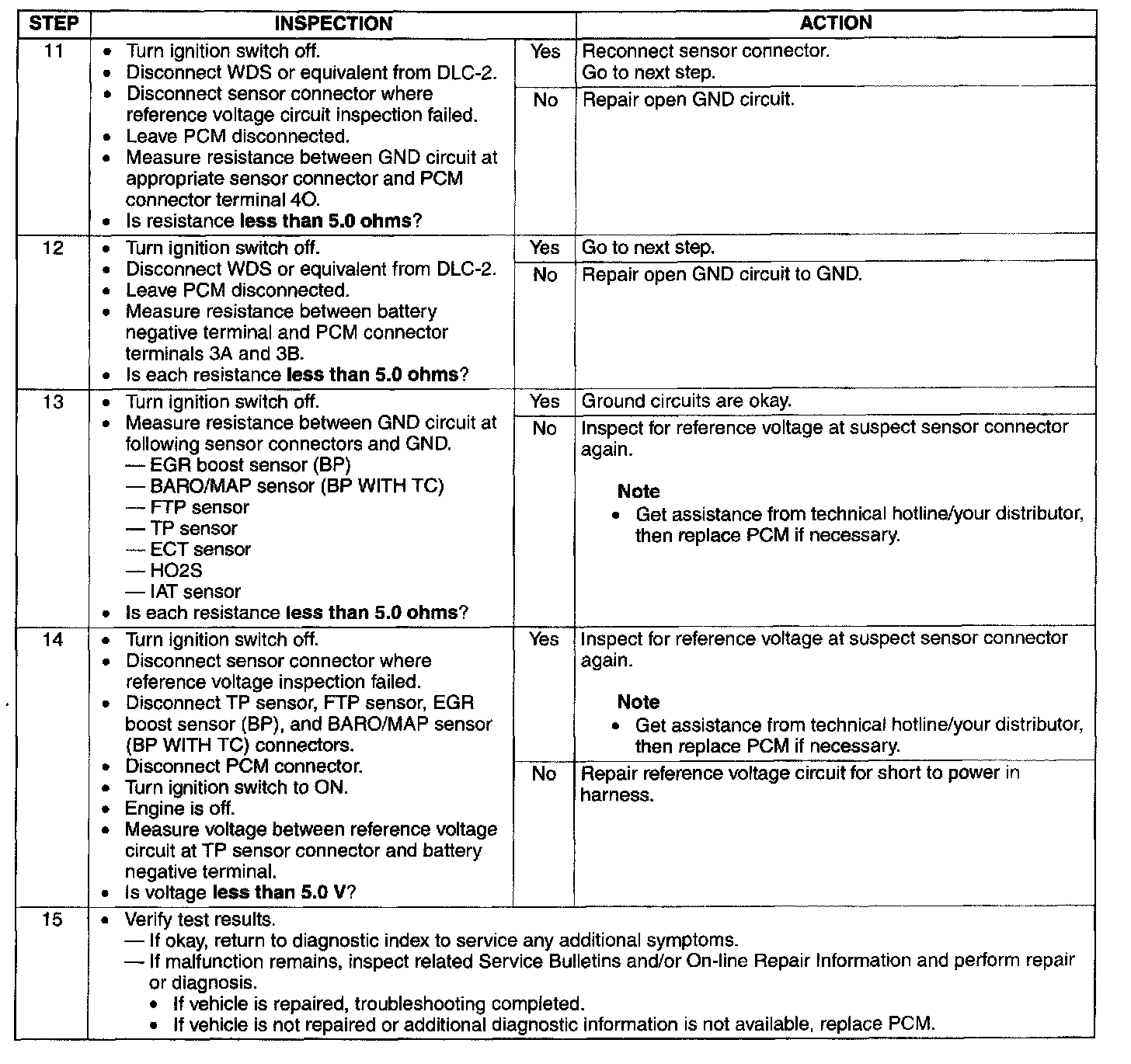

Step 11 - 15:
