Disconnecting Connectors
When disconnecting connector, grasp the connectors, not the wires.

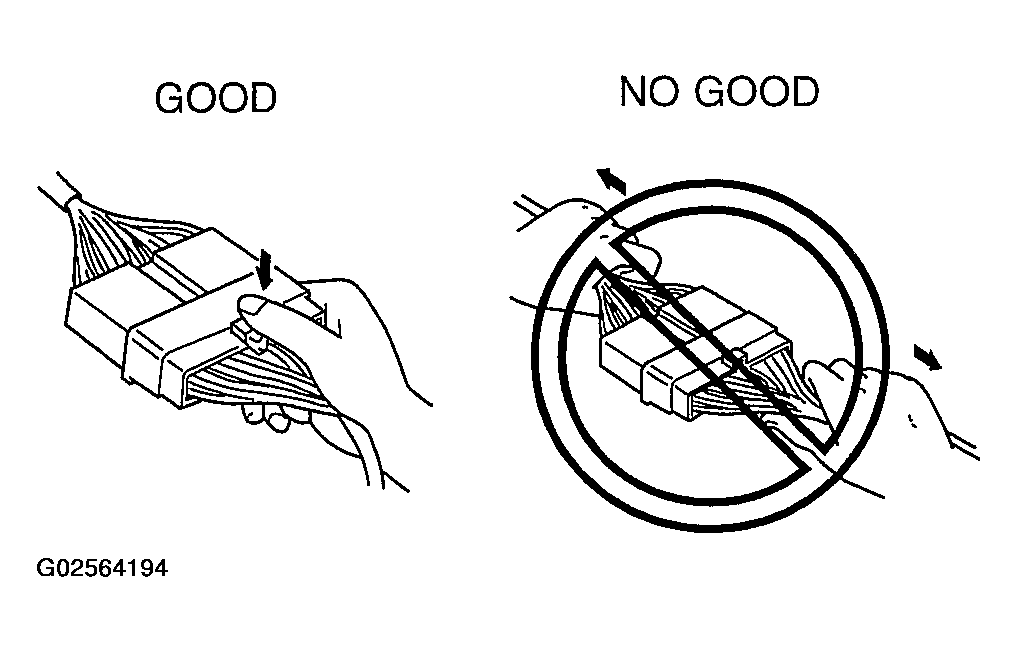

Fig 1: Grasping Connectors While Disconnecting Connector
Courtesy of MAZDA MOTORS CORP.
Connectors can be disconnected by pressing or pulling the lock lever as shown.

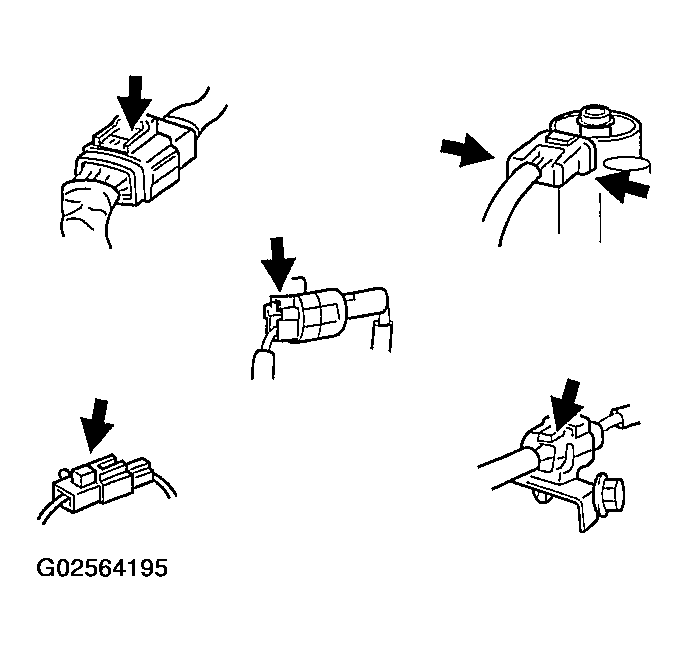

Fig 2: Identifying Connector Lock Levers
Courtesy of MAZDA MOTORS CORP.
