Home >> Mazda >> 2004 >> B4000 4WD V6-4.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering >> System Diagram

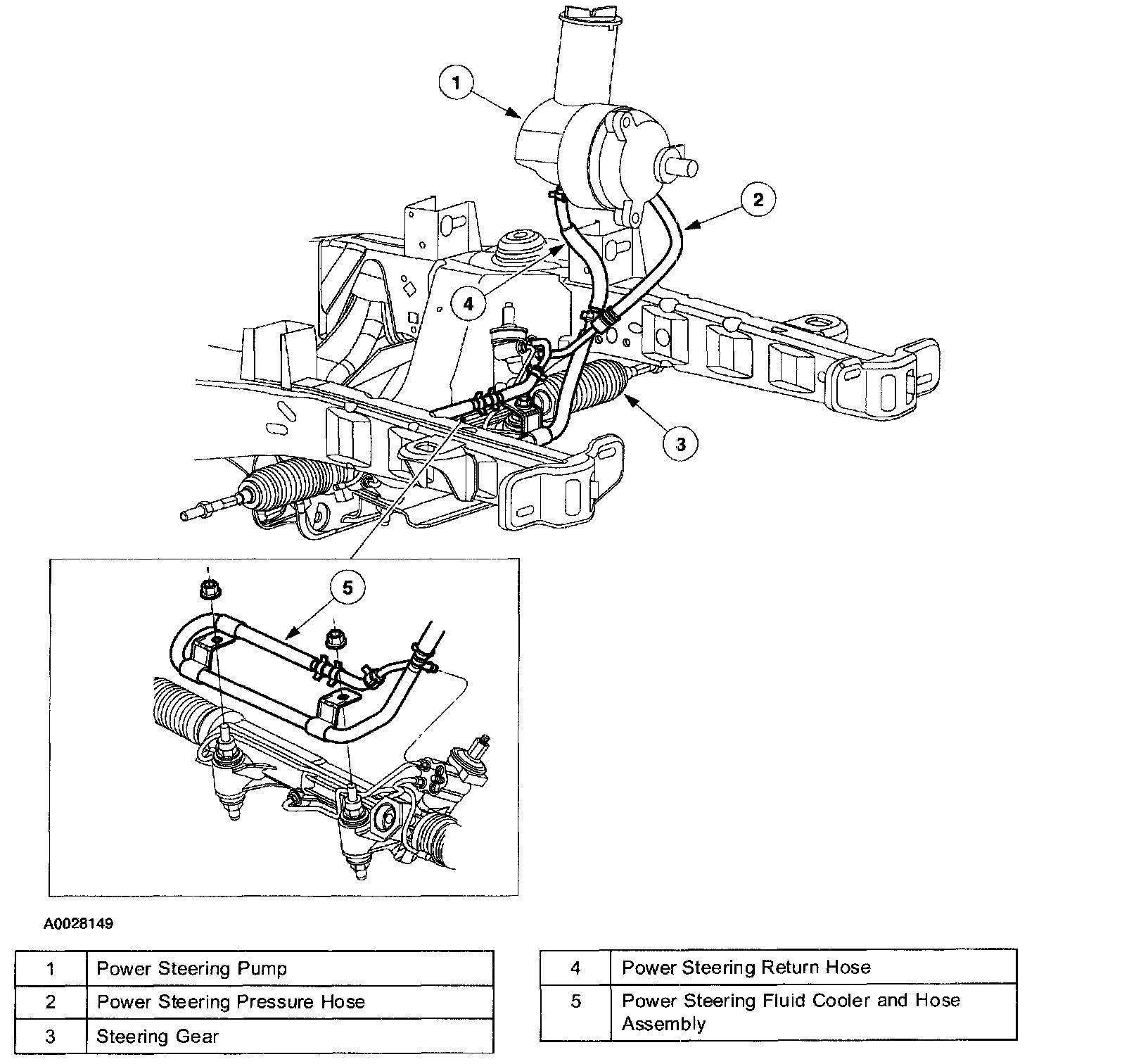

System Diagram





System View Typical
