Home
>>
Mazda
>>
2004
>>
B3000 SE, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Tune-Up
>>
Technical Data (Engine Mechanical)
>>
Cooling System Specifications
Cooling System Specifications

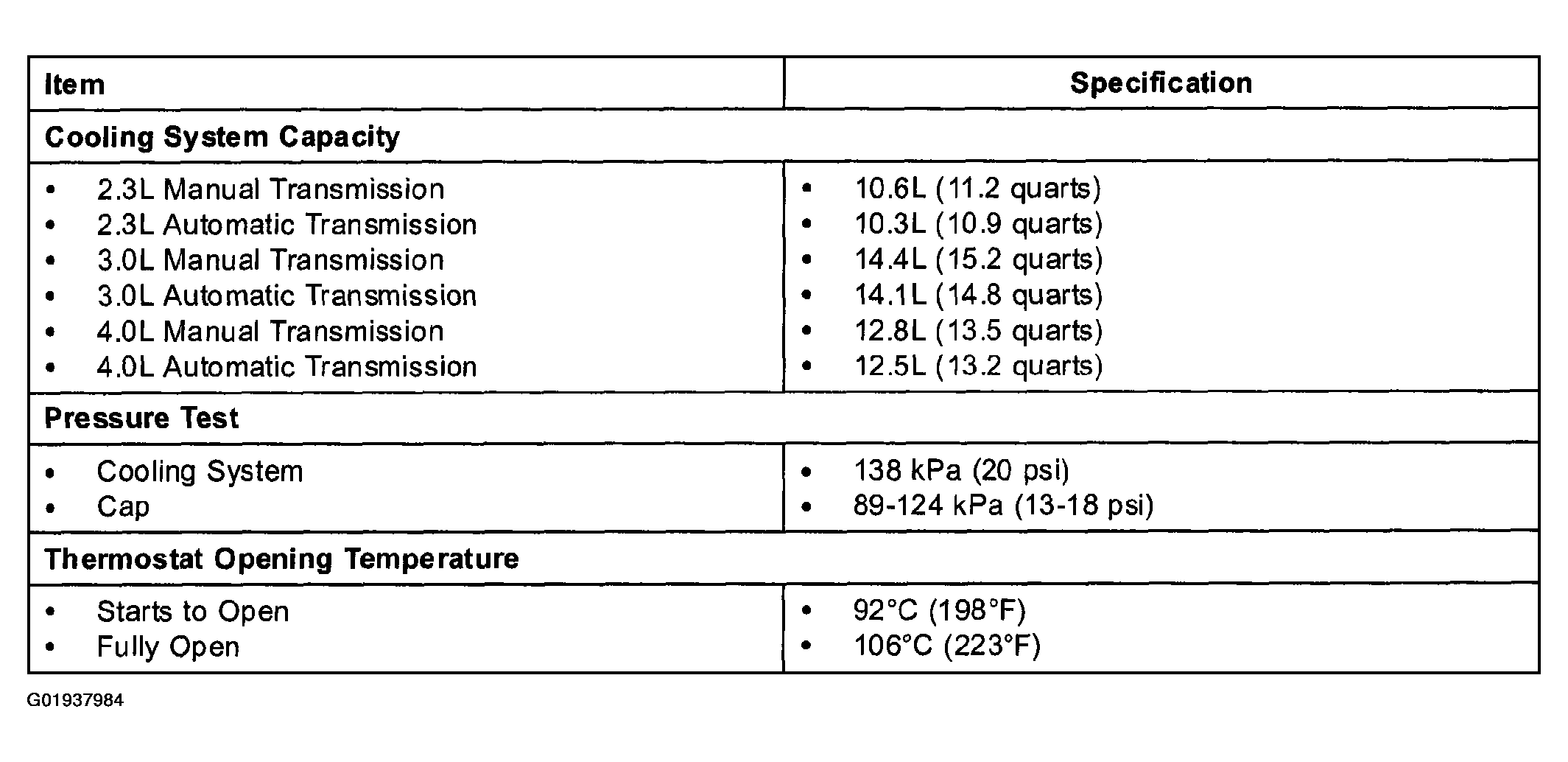

Fig 1: Cooling System Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
