Home >> Mazda >> 2004 >> 6 L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Boost Control Solenoid >> Locations

EGR Boost Control Solenoid: Locations

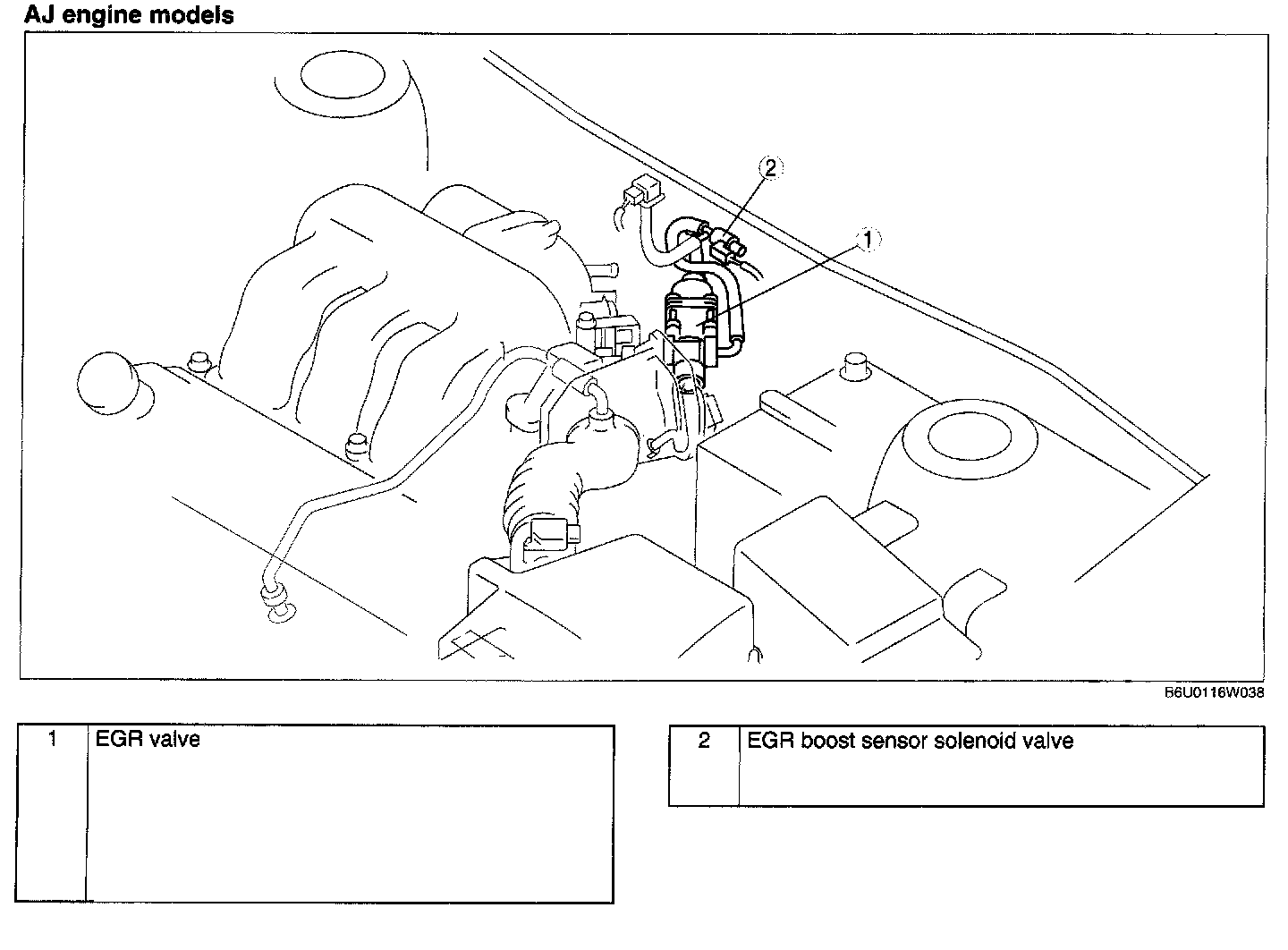

Intake-Air System:

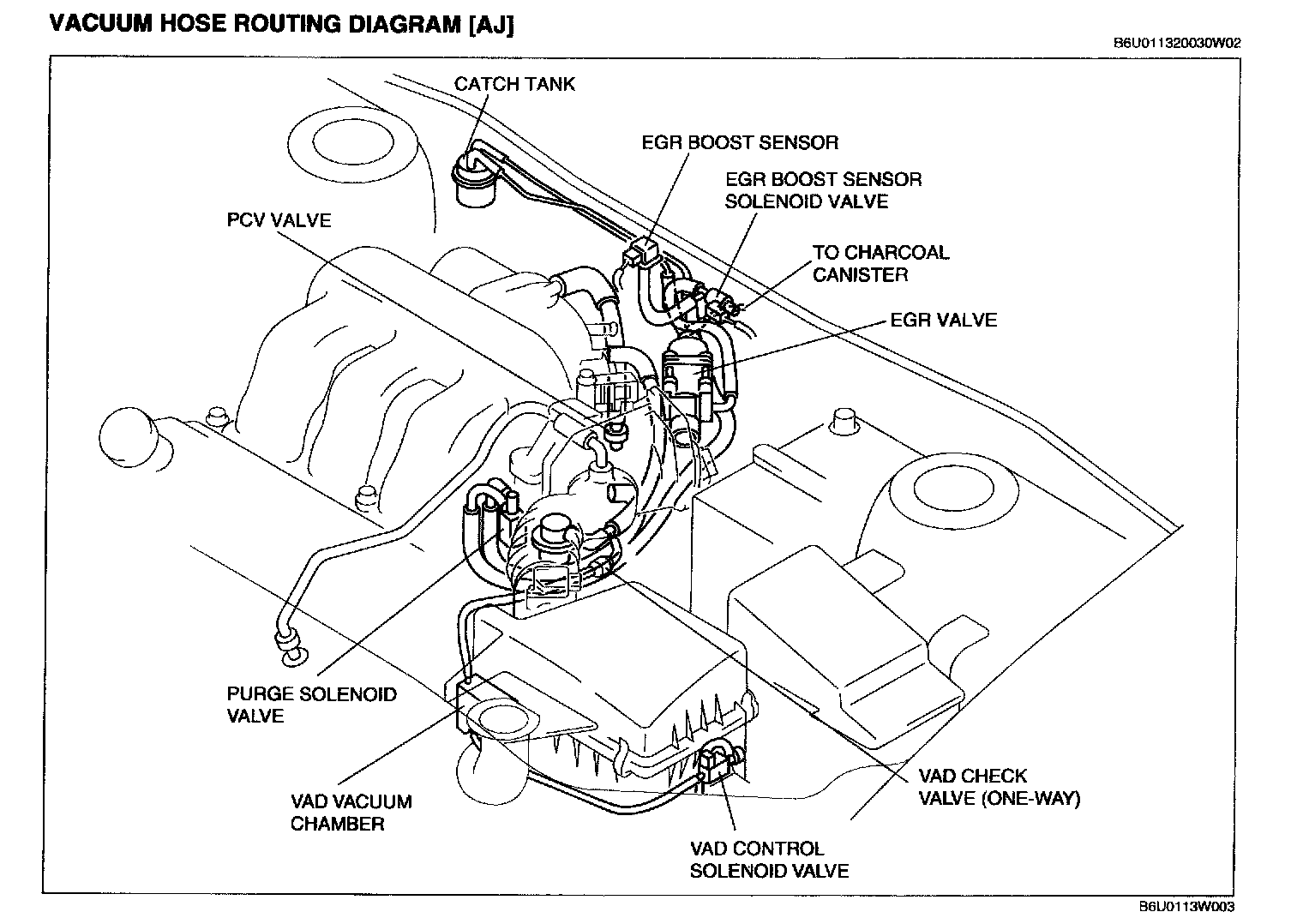

EGR System Location Index:
