Home >> Mazda >> 2004 >> 3 L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Spark Plug >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

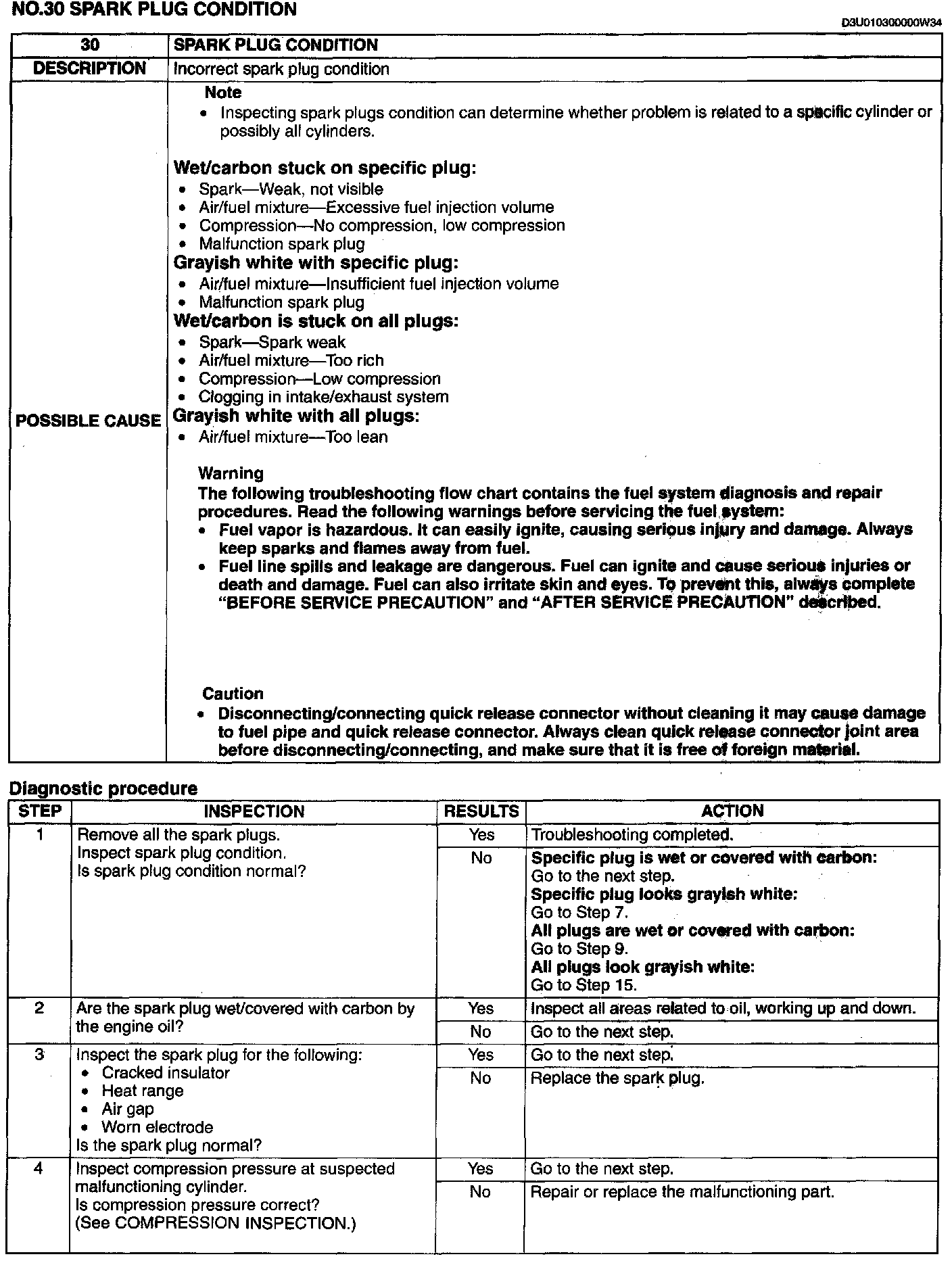

Step 1 - 4:

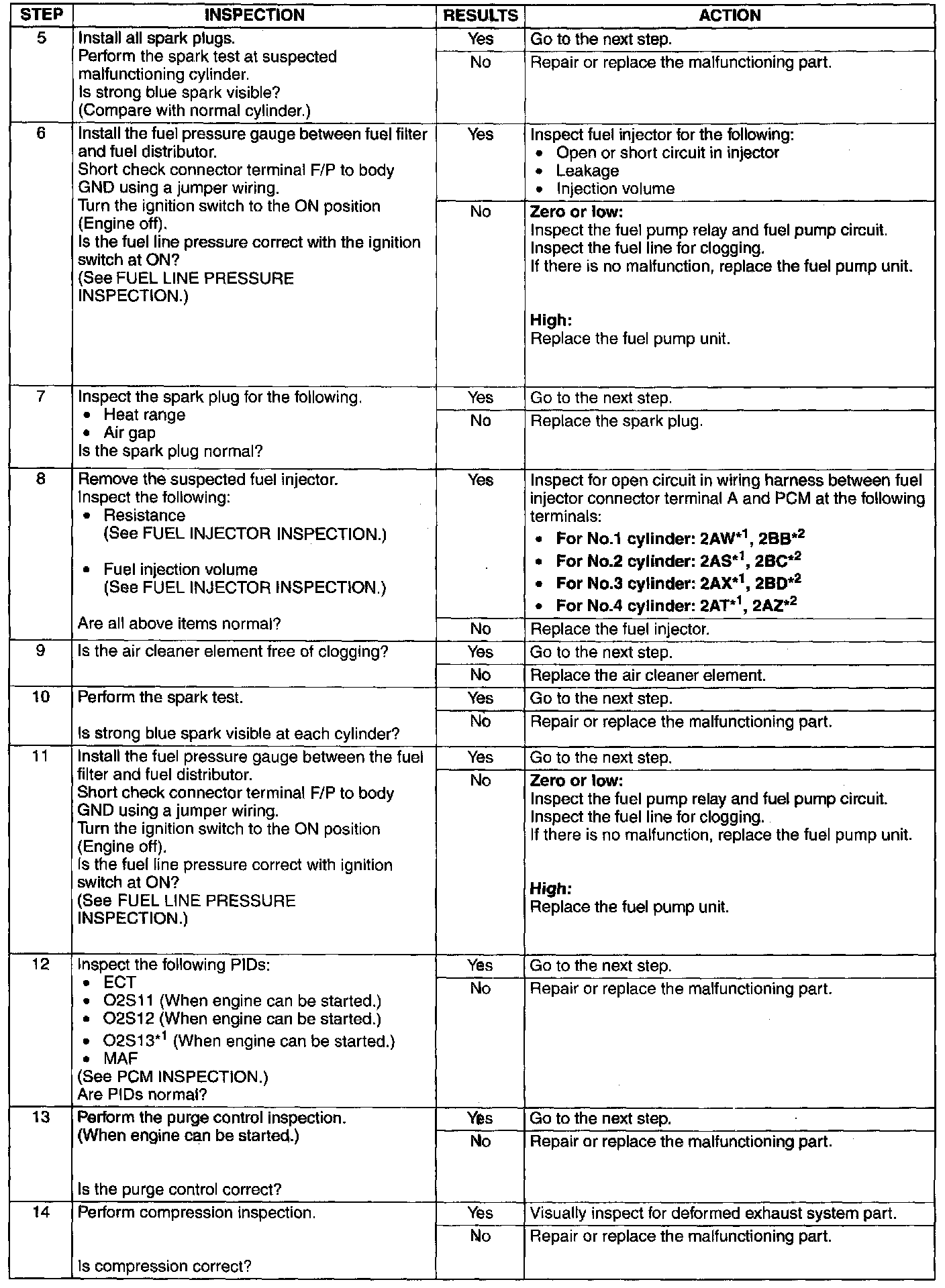

Step 5 - 14:

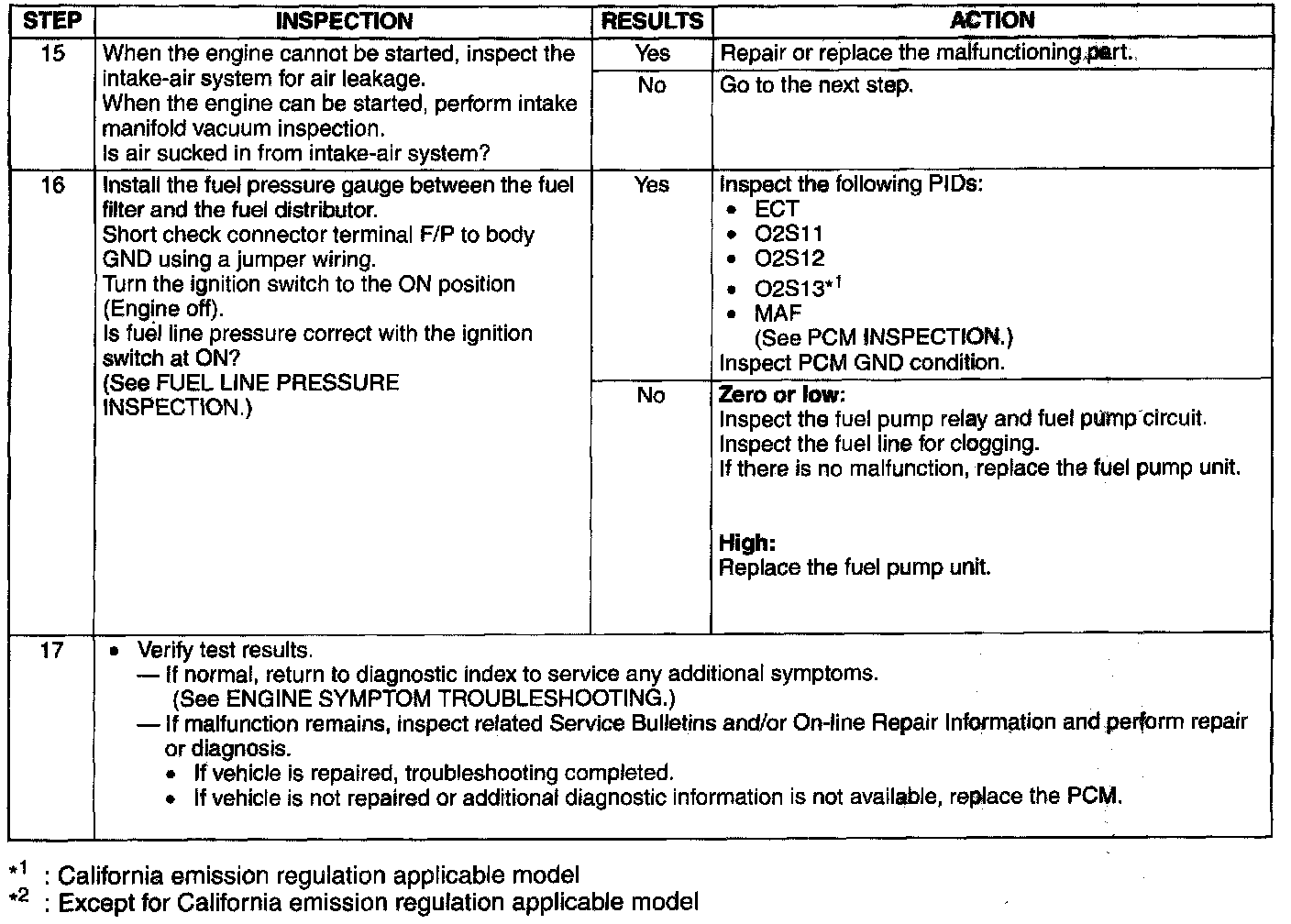

Step 15 - 17:
