Troubleshooting Index

FOREWORD

Troubleshooting Index:

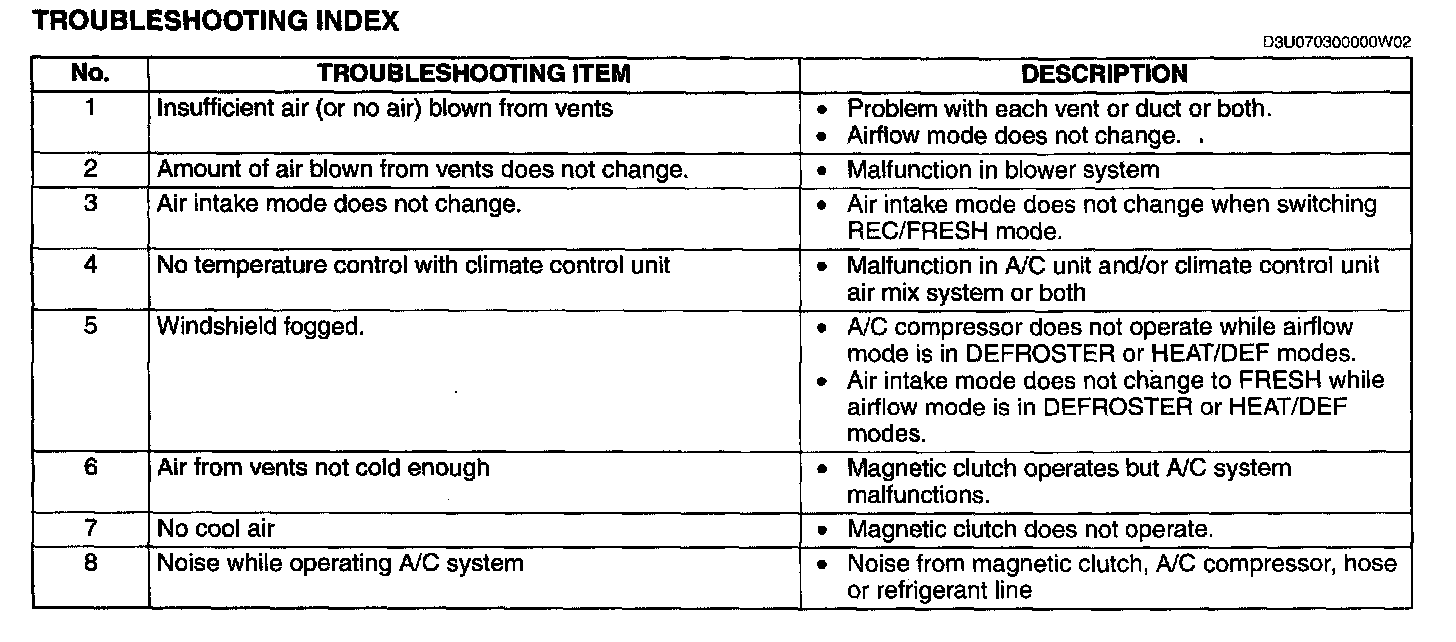

- The areas for inspection (steps) are given according to various circuit malfunctions. Use the following chart to verify the symptoms of the trouble in order to diagnose the appropriate area.
