Home >> Mazda >> 2004 >> 3 L4-2.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Pressure Sensor / Switch >> A/C Pressure Sensor/Switch - Cooling Fan >> Locations

A/C Pressure Sensor/Switch - Cooling Fan: Locations

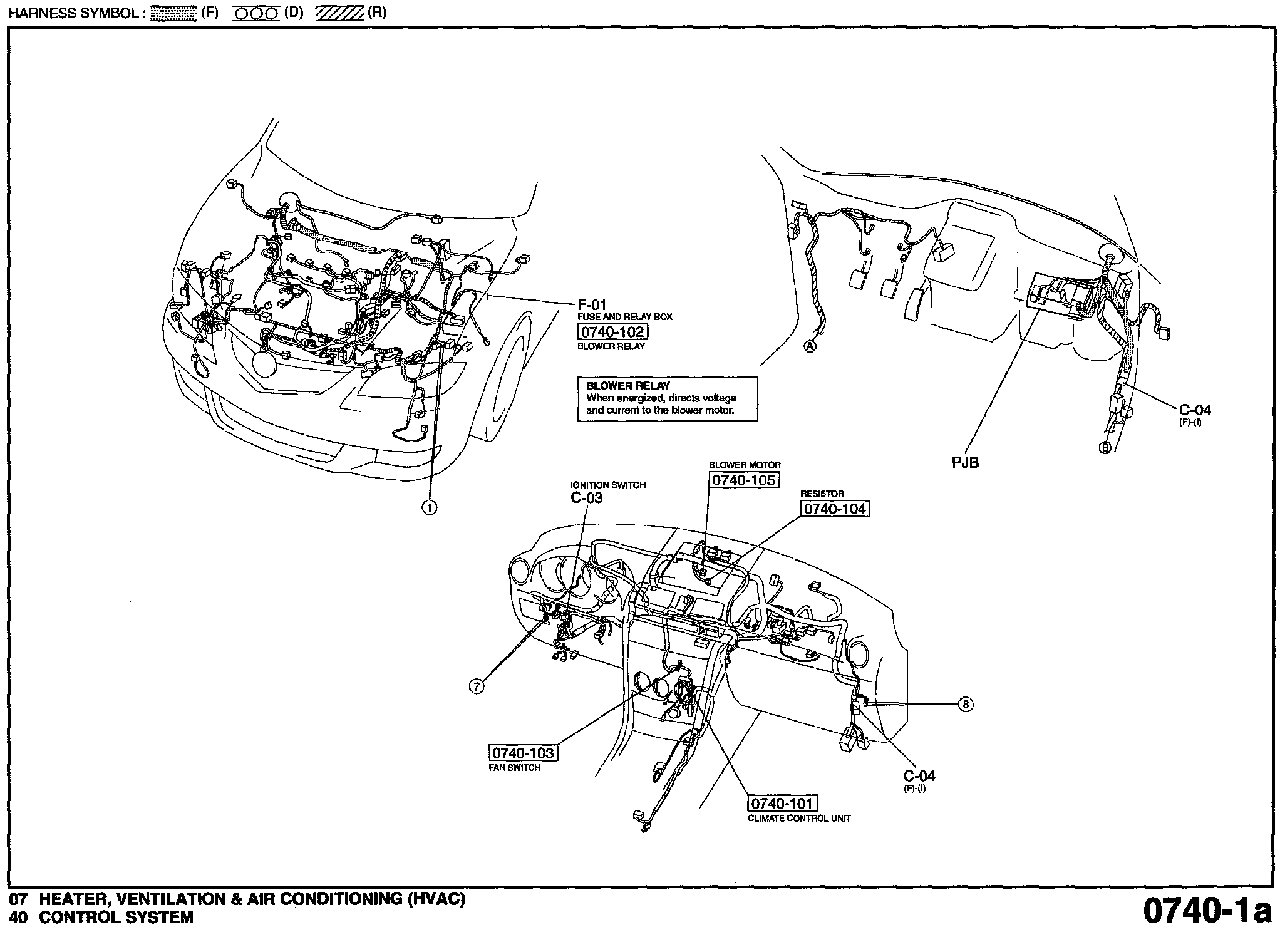

Routing View 0740-1a:
