Home >> Mazda >> 2004 >> 3 L4-2.3L >> Repair and Diagnosis >> Brakes and Traction Control >> Hydraulic System >> Brake Fluid Level Sensor/Switch >> Locations

Brake Fluid Level Sensor/Switch: Locations

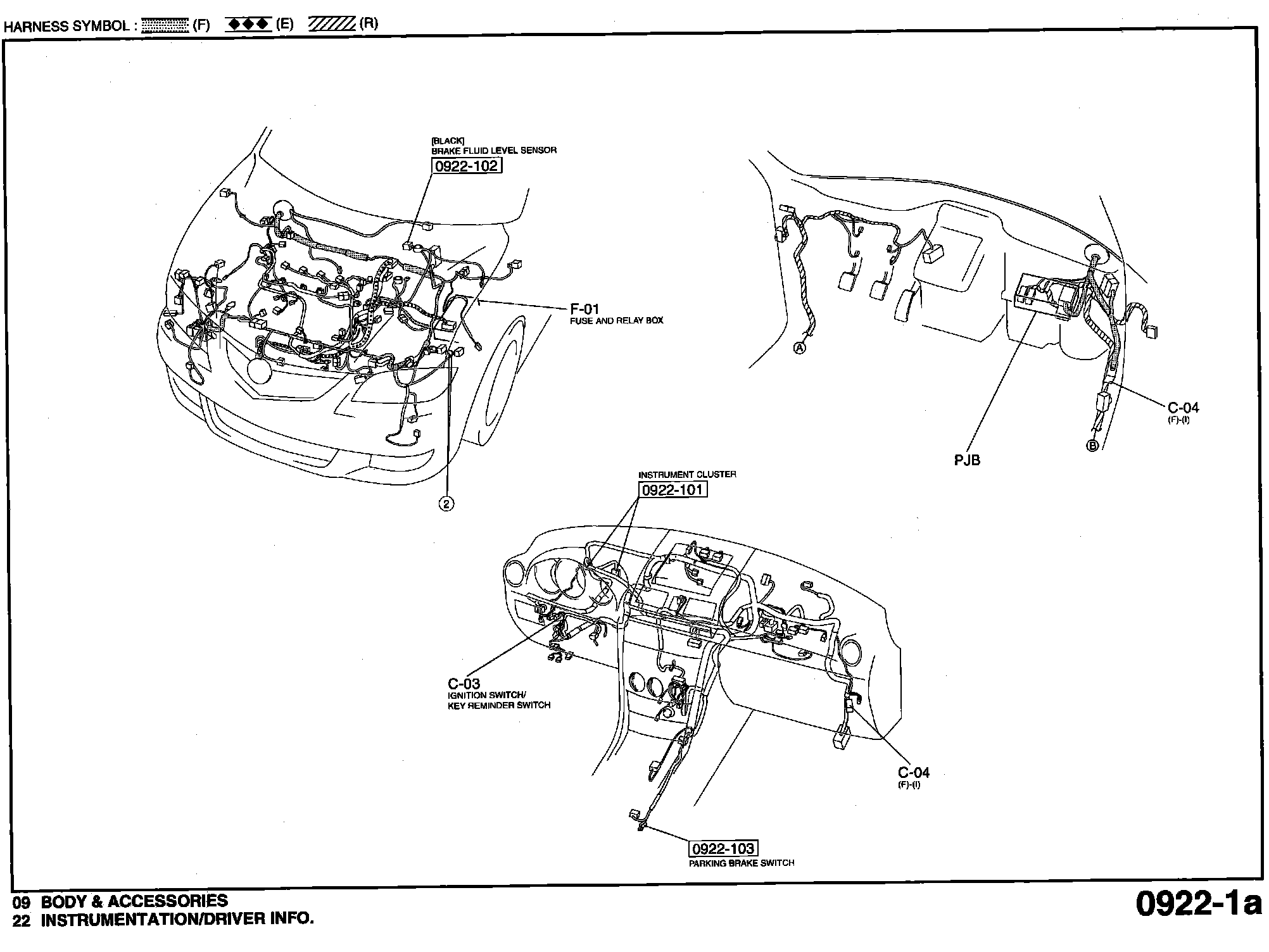

Routing View 0922-1a:
