Starting Concerns

Fig 1: Starting Concerns Diagnostic Procedure
G01898612Courtesy of FORD MOTOR CO.

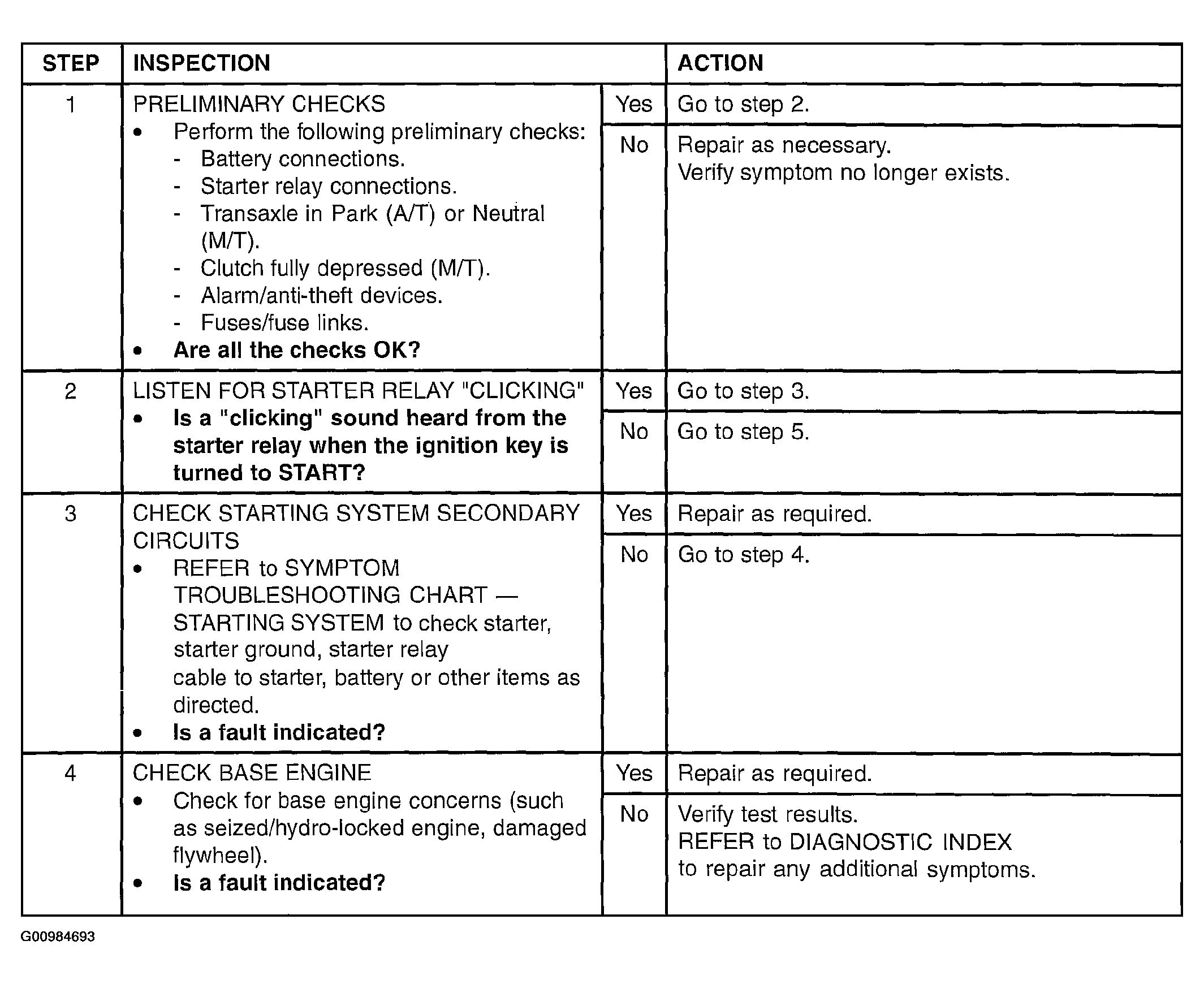

Fig 2: Starting Concerns Inspection Procedure (1 Of 2)
G00984693Courtesy of FORD MOTOR CO.

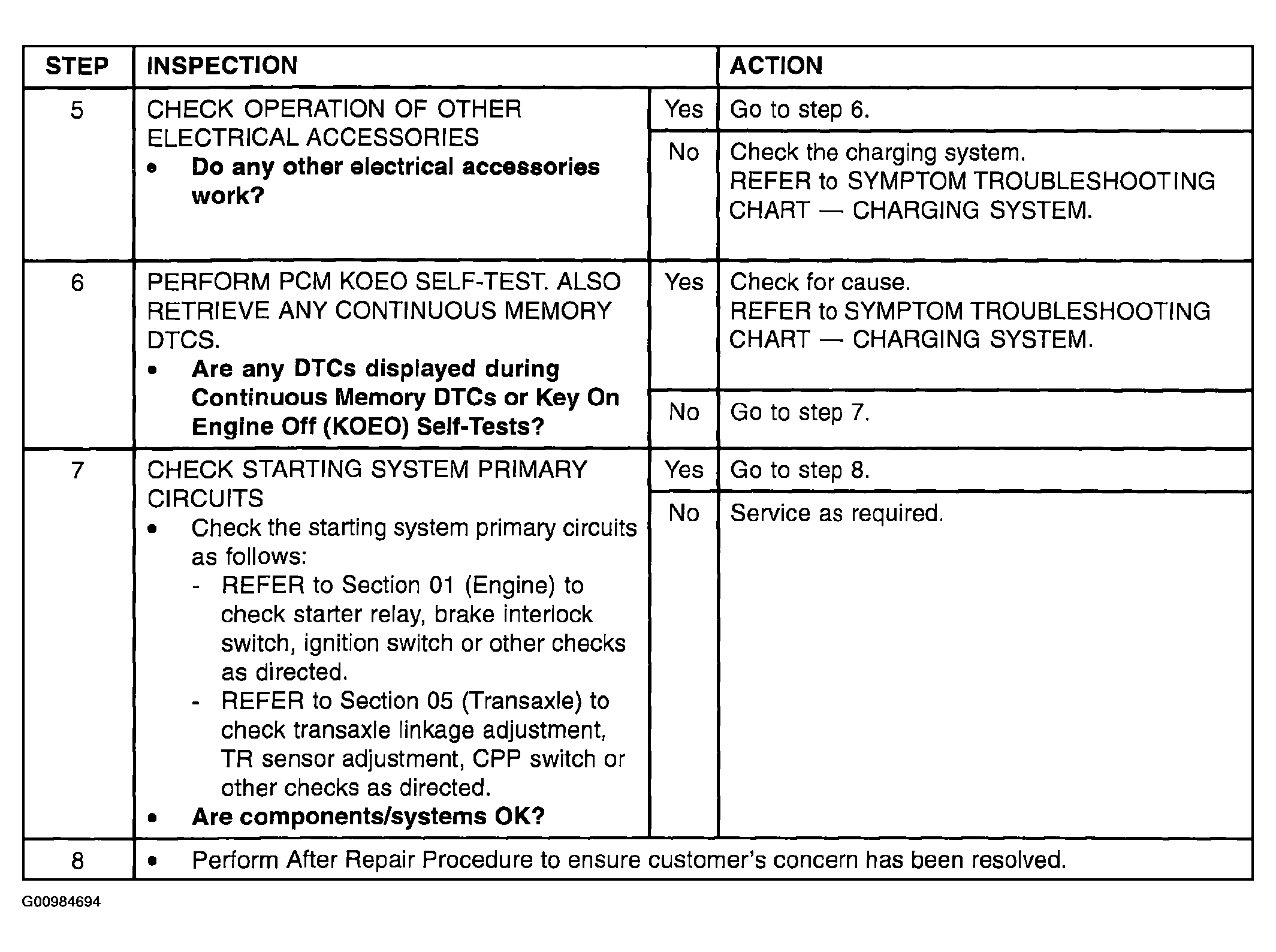

Fig 3: Starting Concerns Inspection Procedure (2 Of 2)
G00984694Courtesy of FORD MOTOR CO.
