Engine Controls - Trouble Shooting - With & Without Codes: Backfires

Fig 1: Backfires Diagnostic Procedure
G01898021Courtesy of FORD MOTOR CO.

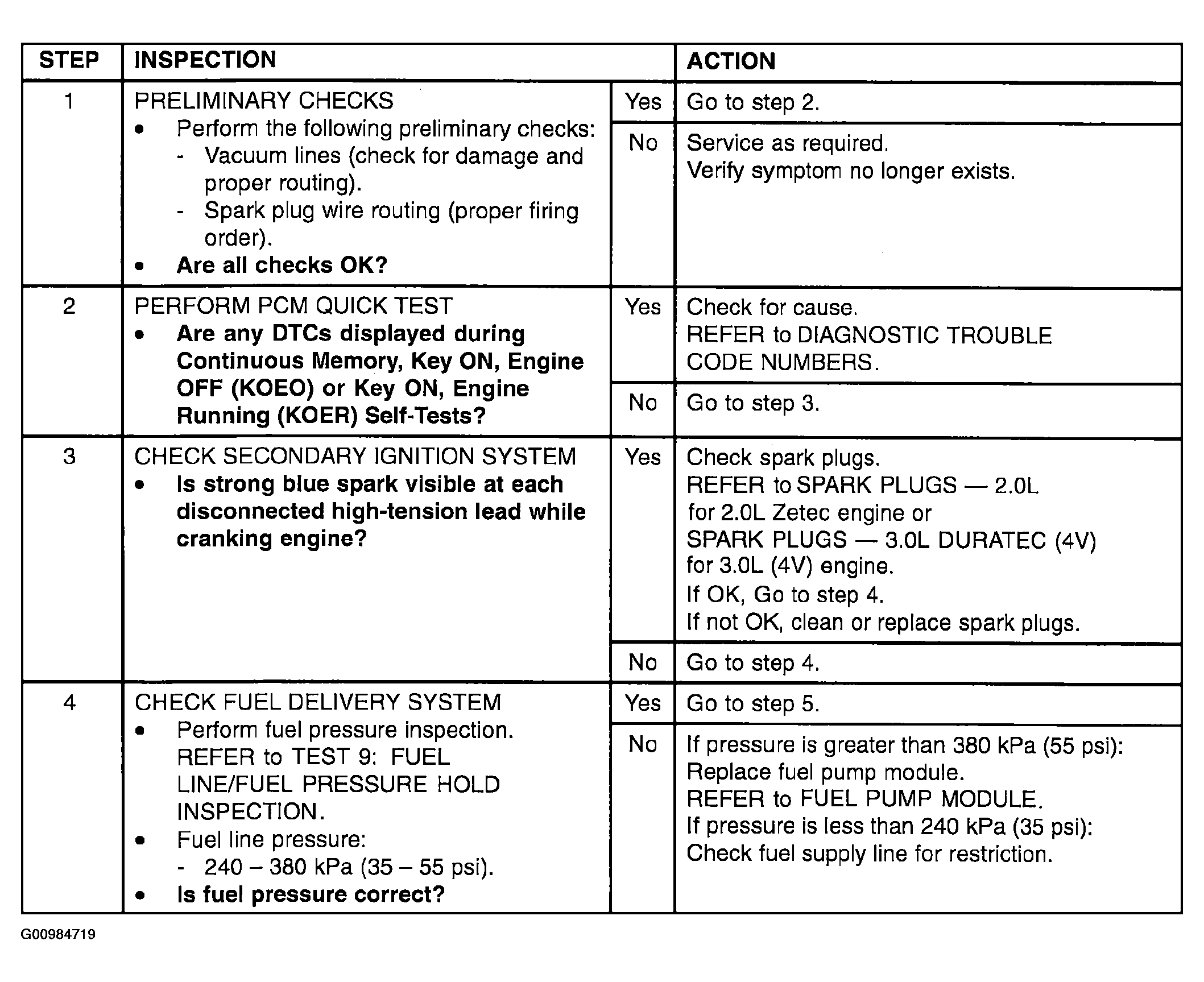

Fig 2: Backfires Inspection Procedure (1 Of 2)
G00984719Courtesy of FORD MOTOR CO.

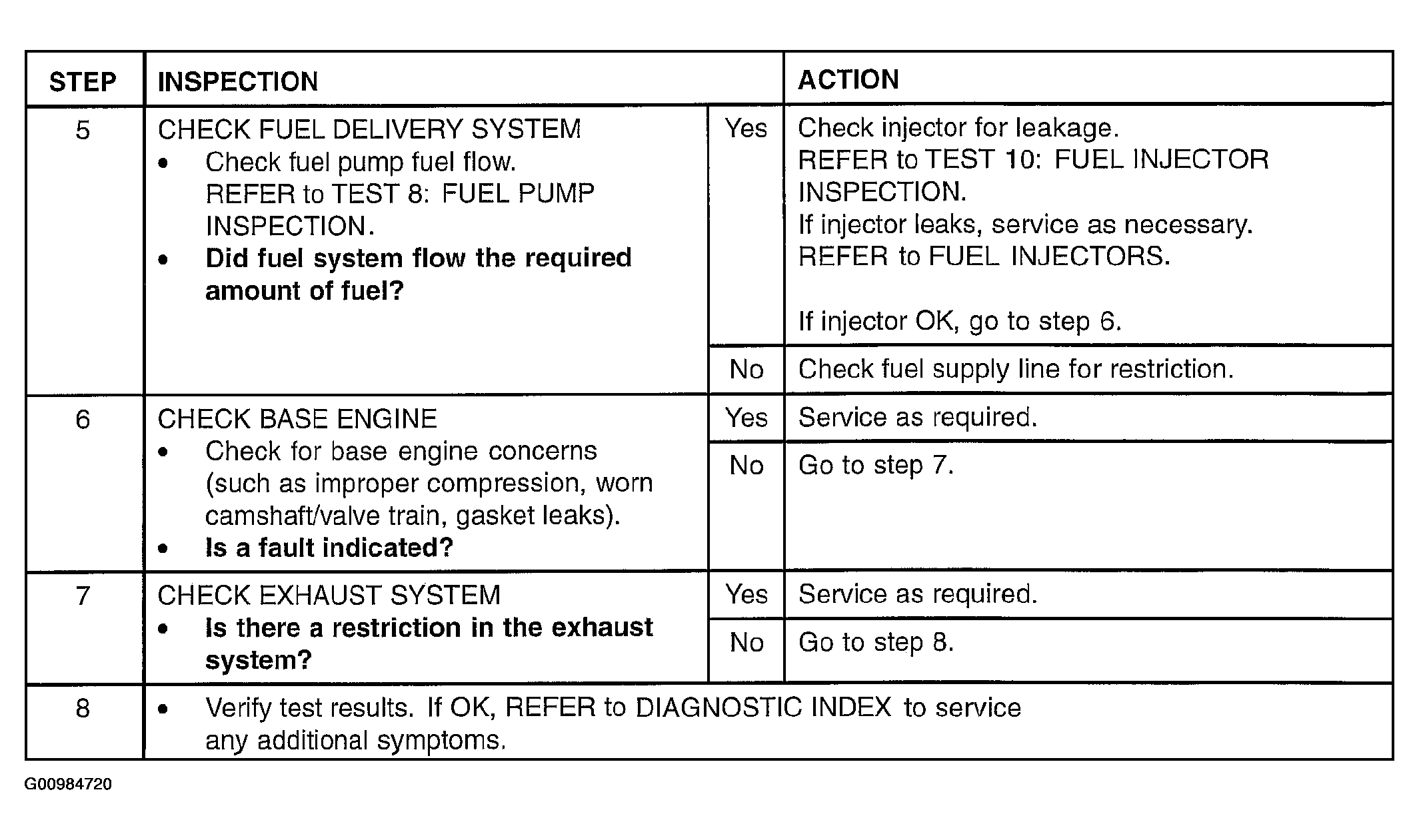

Fig 3: Backfires Inspection Procedure (2 Of 2)
G00984720Courtesy of FORD MOTOR CO.
