Home >> Mazda >> 2003 >> Tribute 2WD L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Exterior Lighting Module >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test 1

Pinpoint Test 1

Step 1:

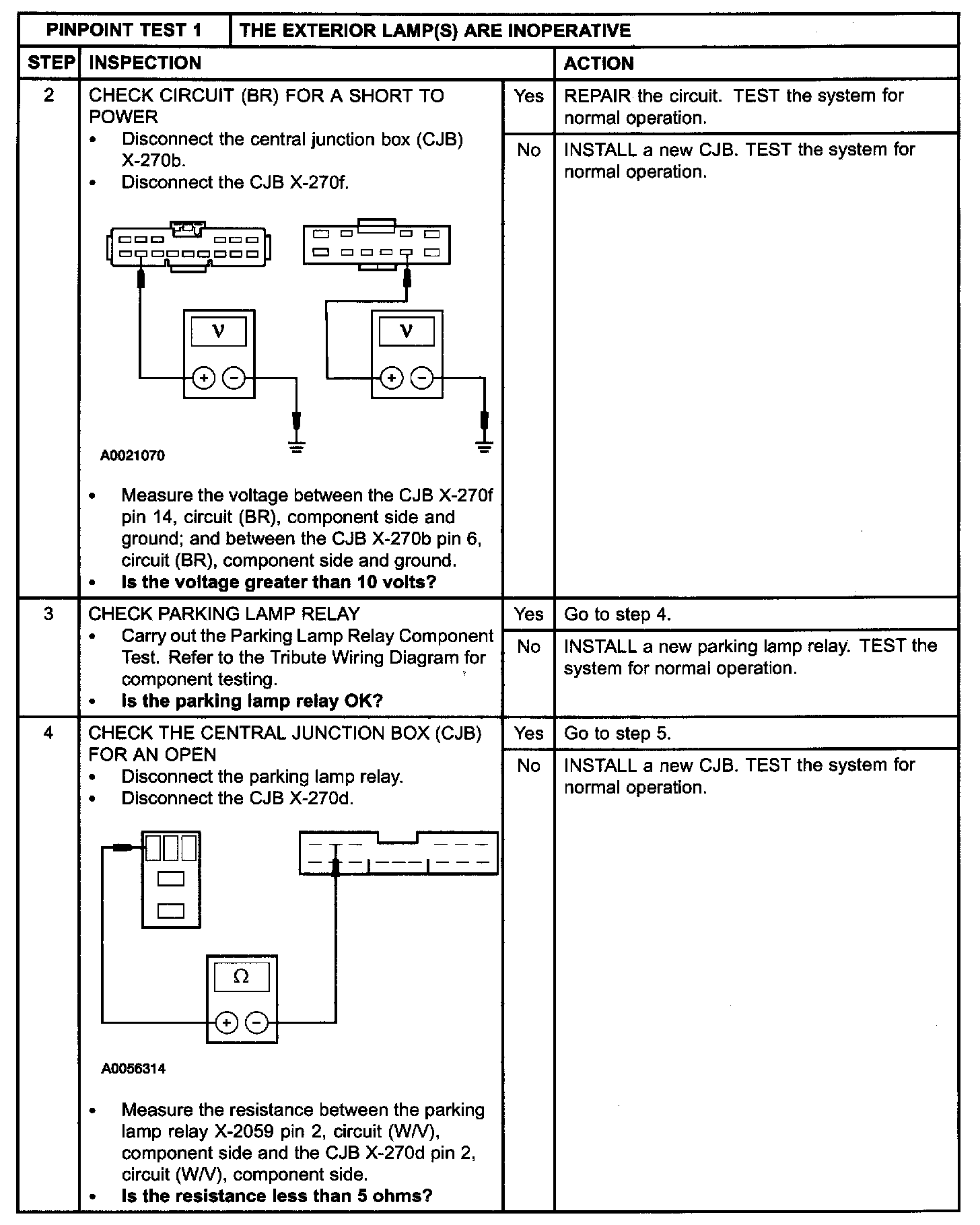

Step 2 - 4:

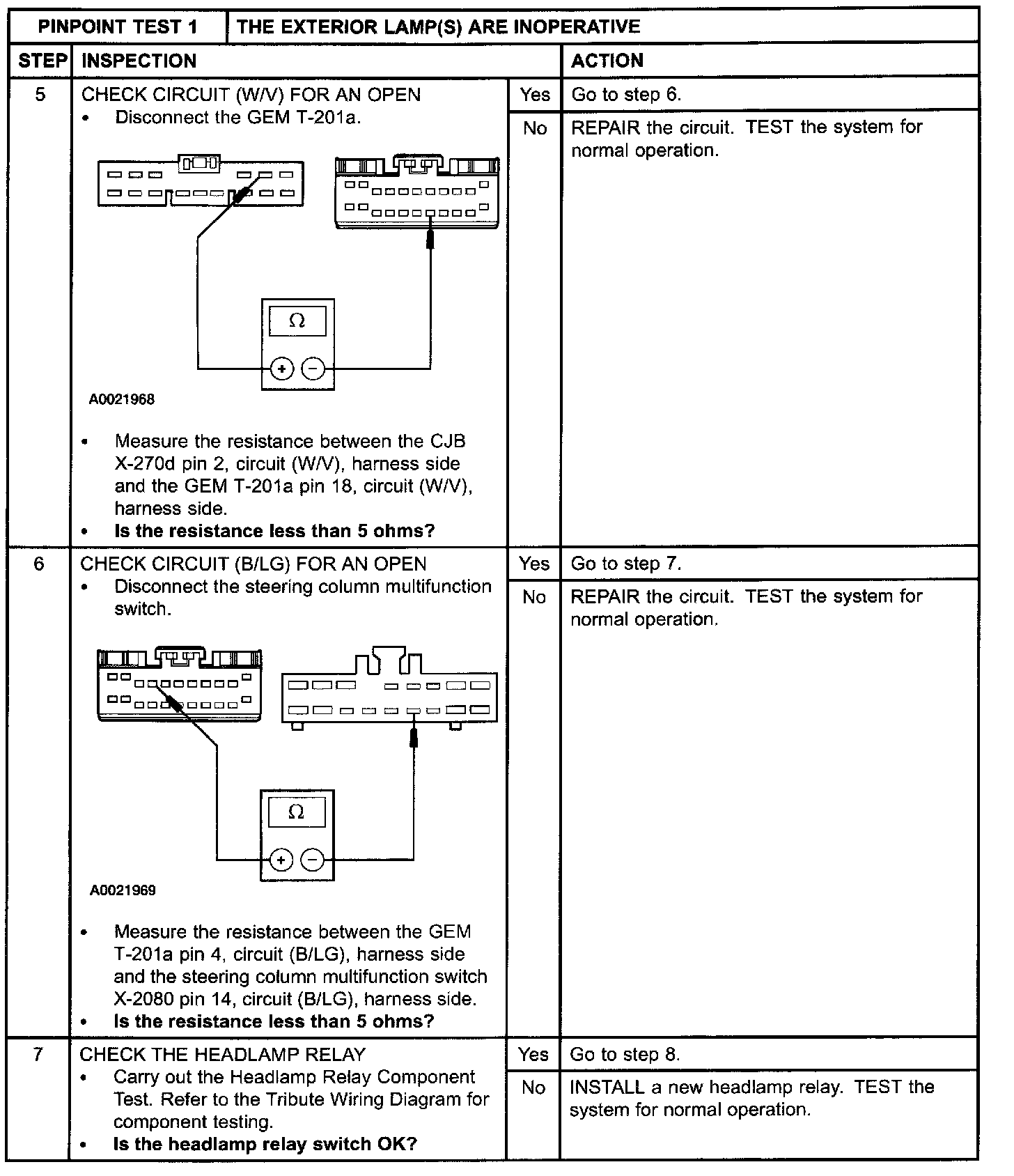

Step 5 - 7:

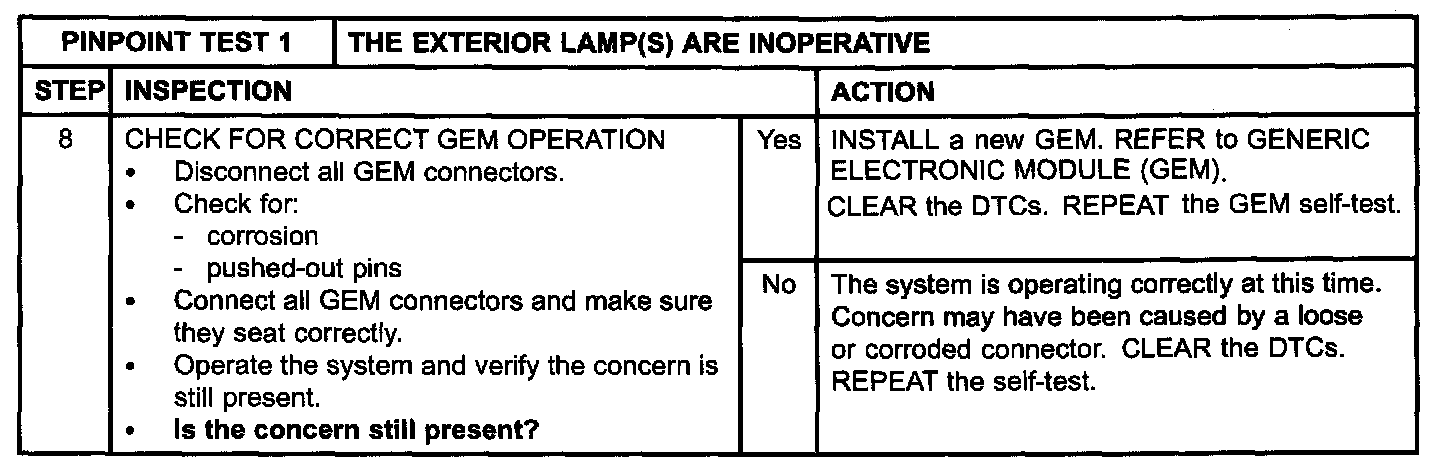

Step 8:
