Mini ISO Relay: Testing and Inspection

RELAY INSPECTION

Relay Type:

Relay type

Four-terminal

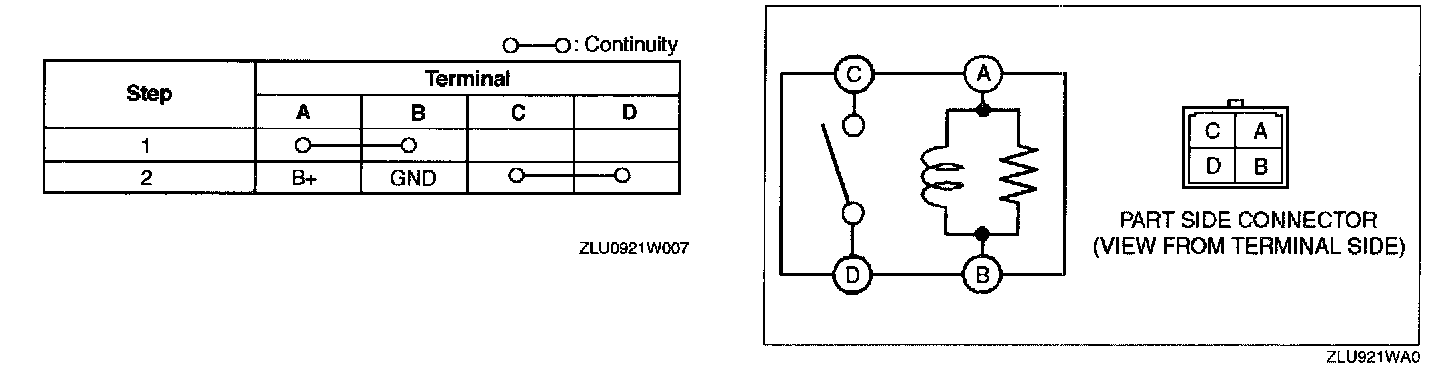

Type A

1. Remove the relay.




2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.

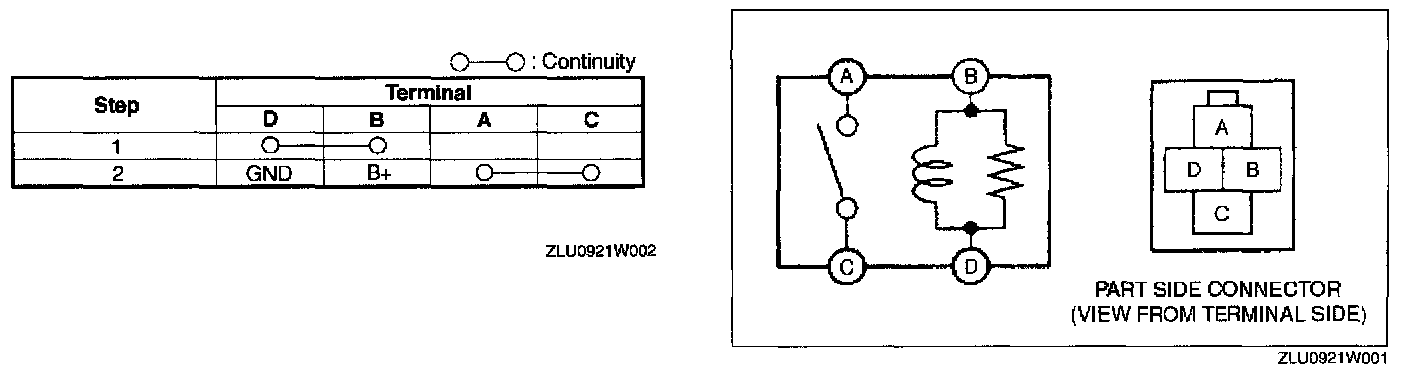

Type B

1. Remove the relay.




2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.

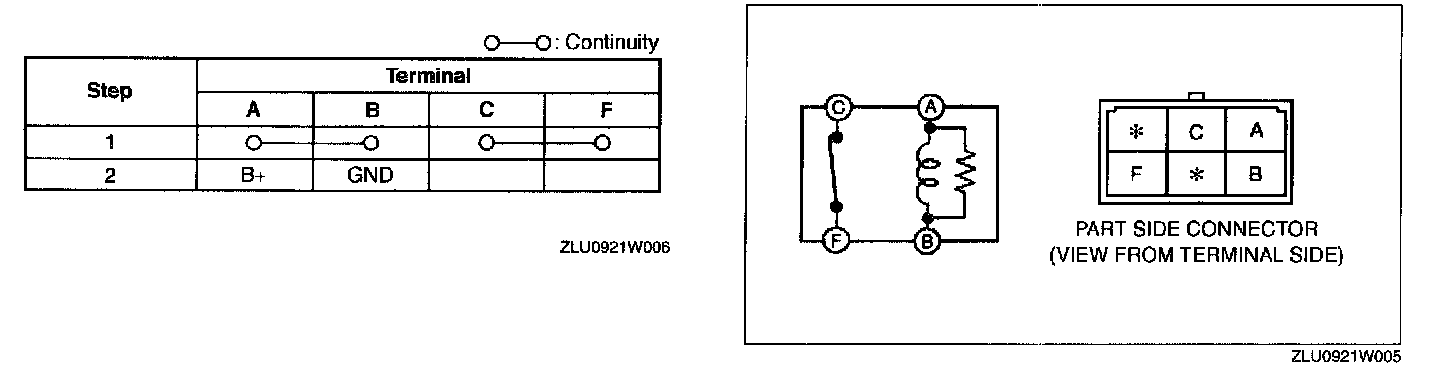

Type C

1. Remove the relay.




2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.

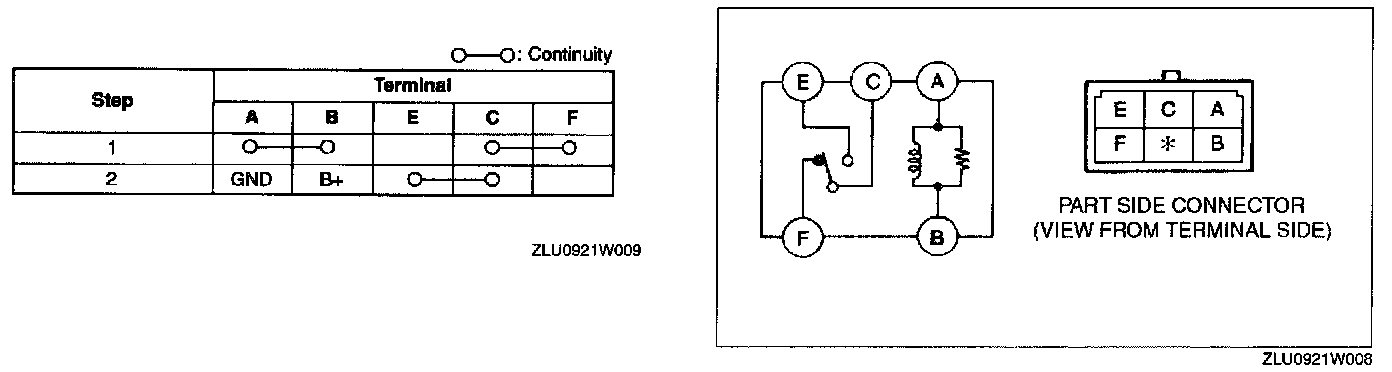

Type D

1. Remove the relay.




2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.

Five-terminal

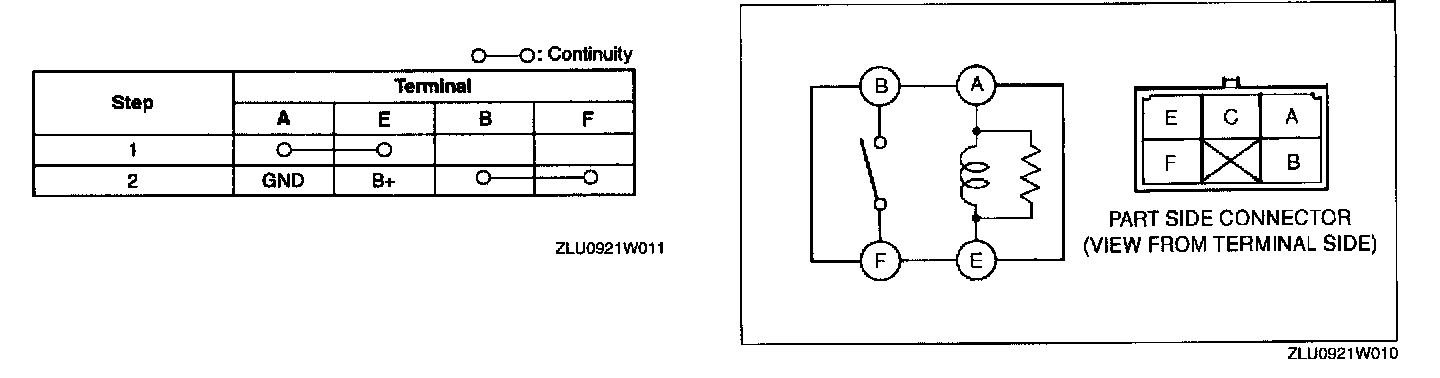

Type A

1. Remove the relay.




2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.

Type B

1. Remove the relay.




2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.

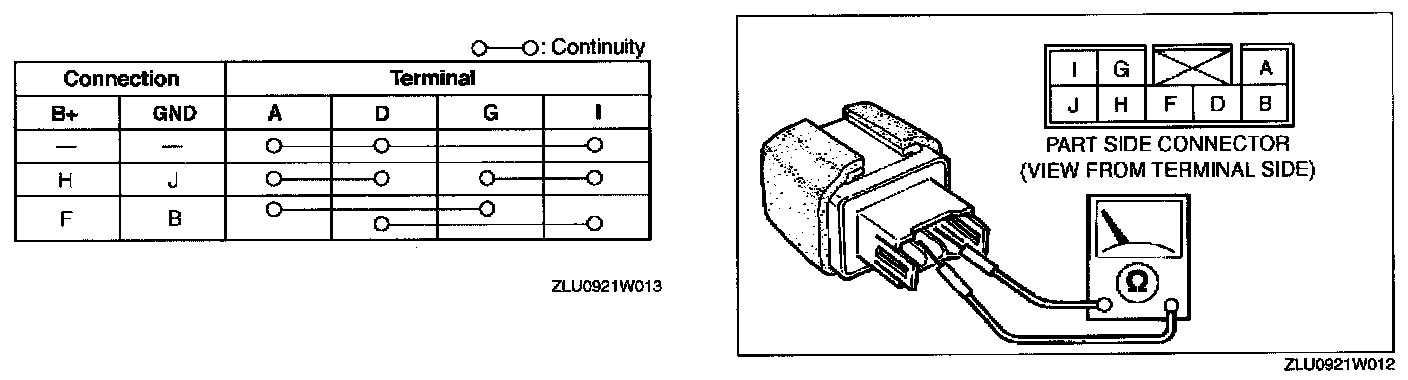

Eight-terminal

1. Remove the relay.




2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.
