Compressor Clutch: Testing and Inspection

MAGNETIC CLUTCH INSPECTION

1. Disconnect the magnetic clutch connector.

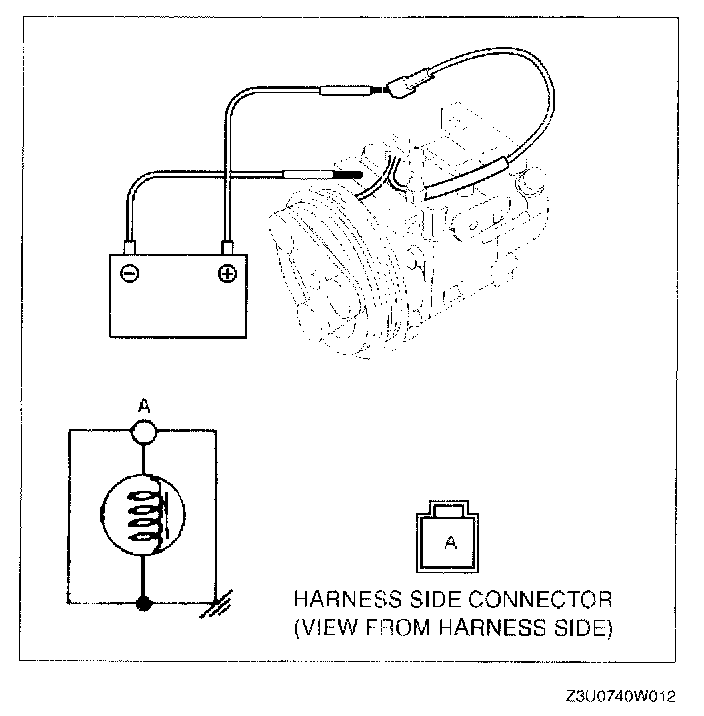

2. Connect B+ to terminal A of magnetic clutch and ground to the A/C compressor body.




3. Verify that the magnetic clutch operates.
- If not as specified, replace the stator and thermal protector.
