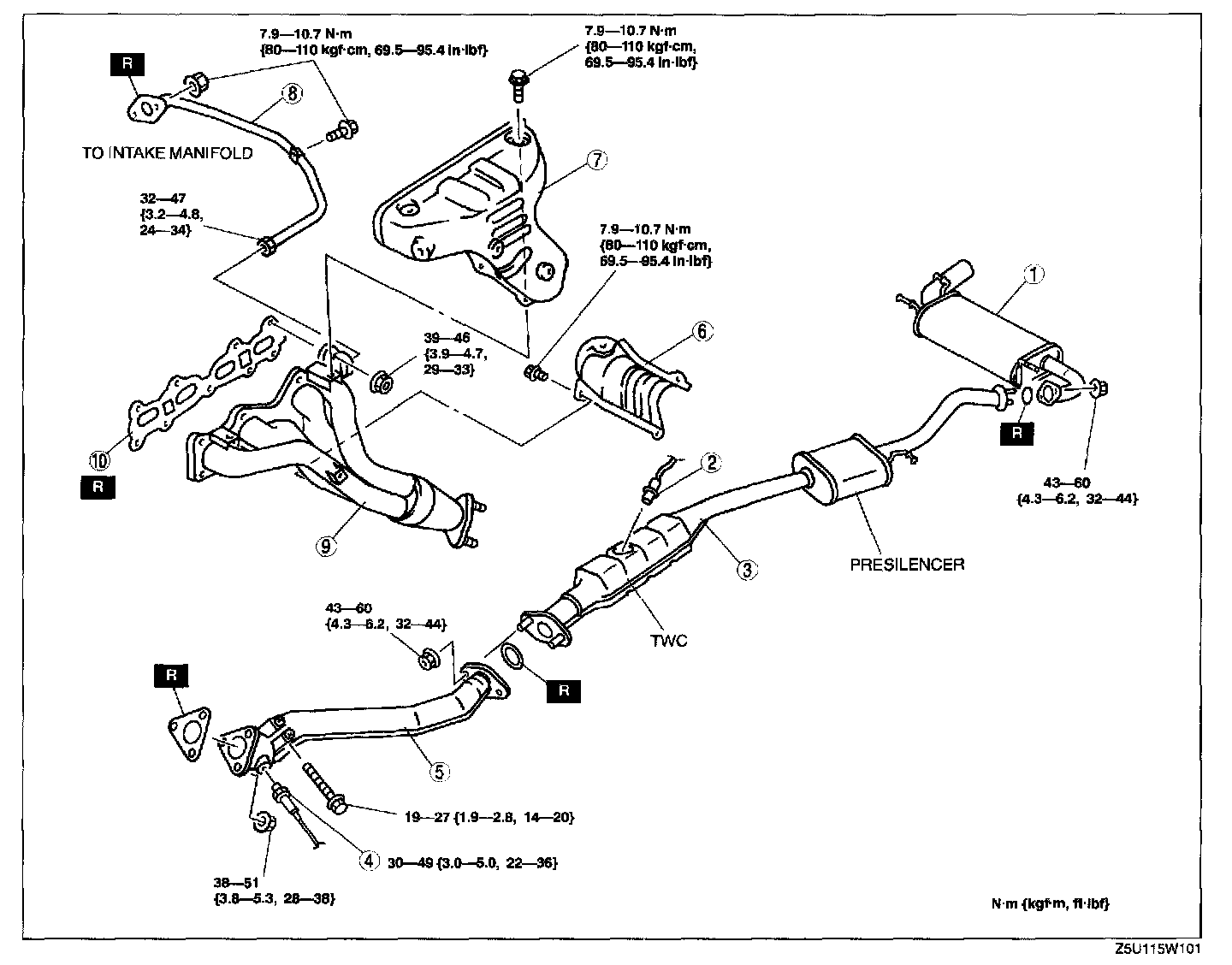

Exhaust System

1. Main silencer
2. HO2S (Rear)
3. Middle pipe
4. HO2S (Front)
5. Front pipe
6. Exhaust manifold insulator No.1 (See Exhaust Manifold Gasket Installation)
7. Exhaust manifold insulator No.2
8. EGR pipe
9. Exhaust manifold
10. Exhaust manifold gasket (See Exhaust Manifold Insulator Removal Note)
