Lower Module Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the audio unit. (See AUDIO UNIT REMOVAL  .)
  3. Remove in the order indicated in the figure.

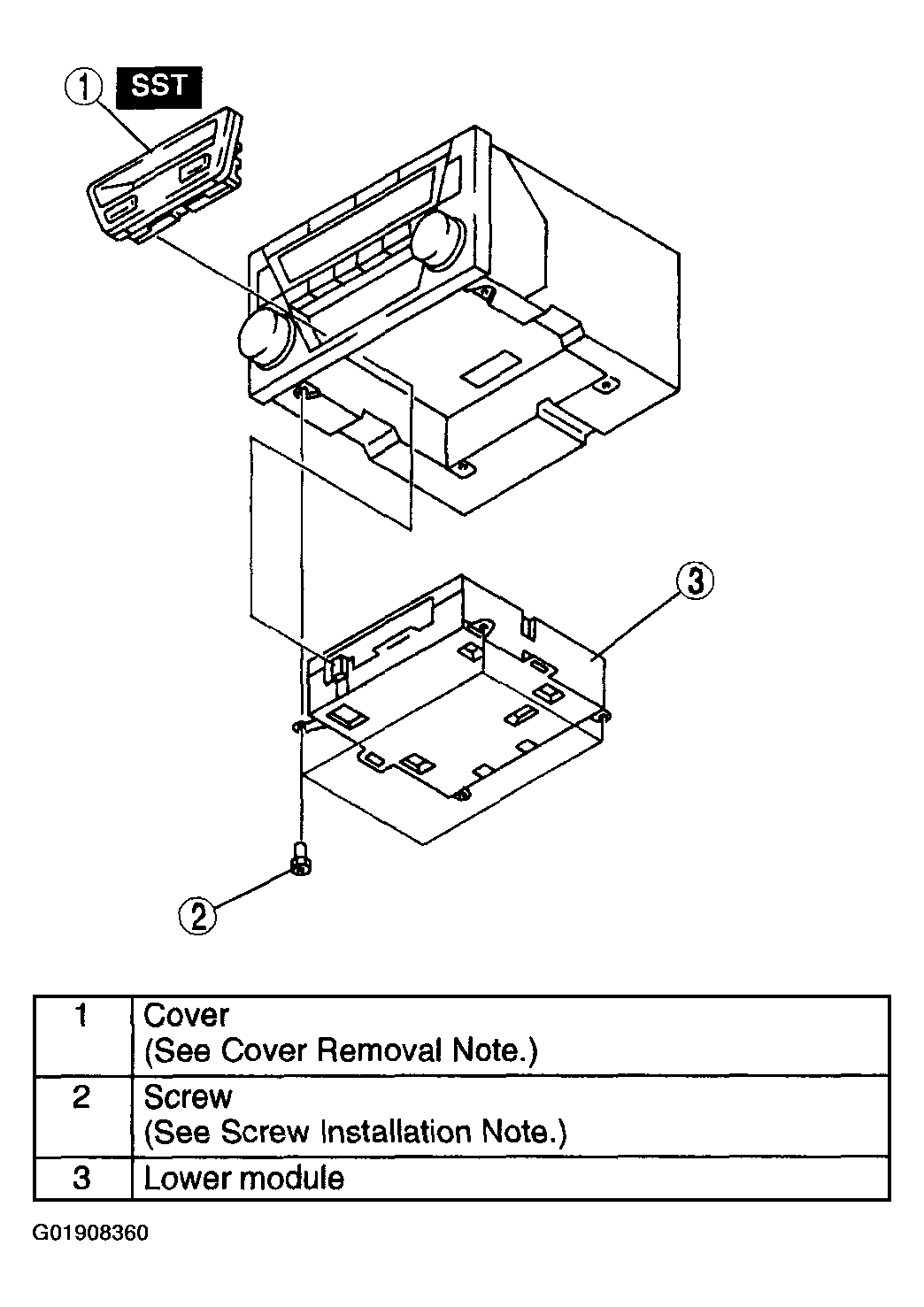

    Fig 1: Removing/Installing Lower Module
    G01908360Courtesy of MAZDA MOTORS CORP.
  4. Install in the order of removal.
