Diagnostic Monitoring Test Results Access Procedure

1. Perform the necessary vehicle preparation and visual inspection.




2. Connect WDS or equivalent to the vehicle DLC-2 16-pin connector located the left side of the center console.

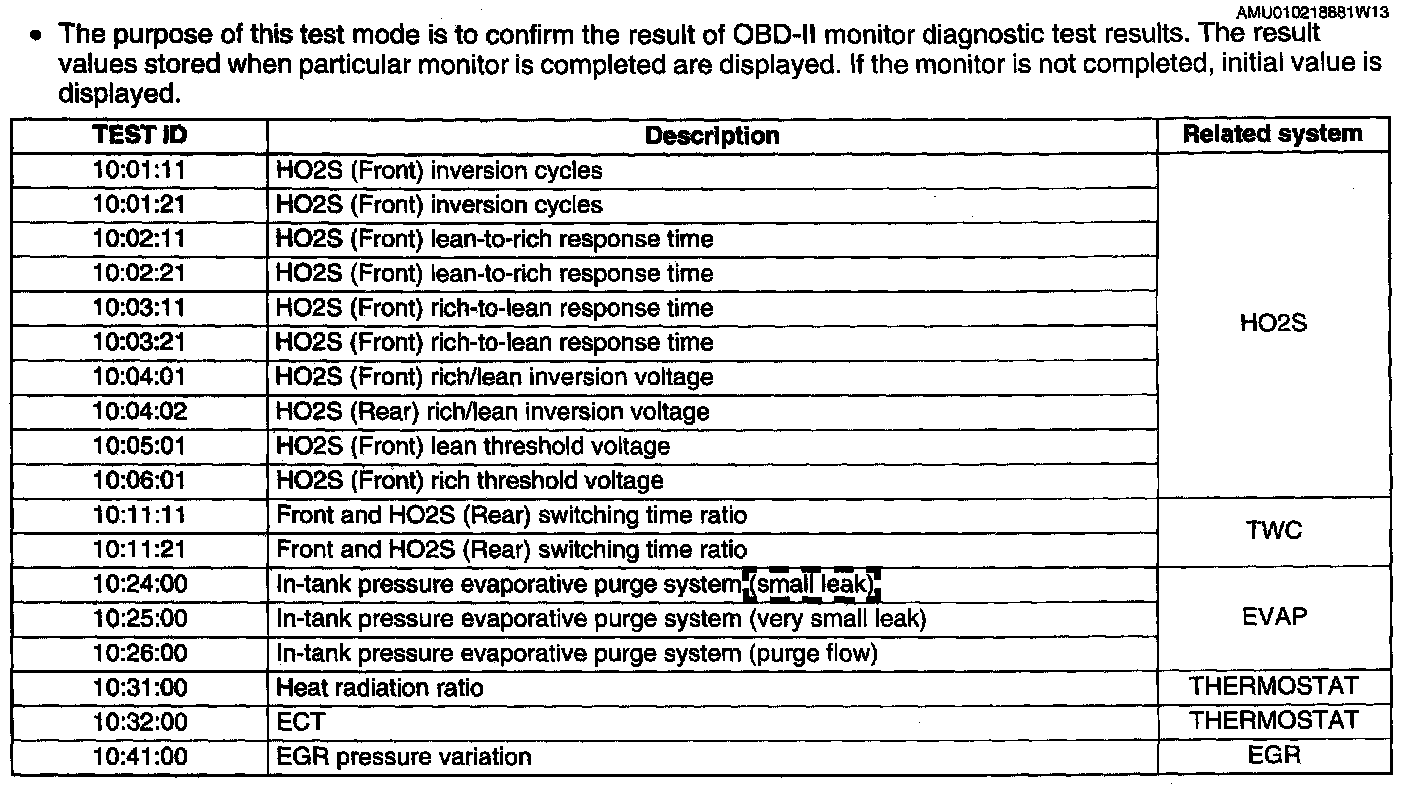

3. Access to the DIAGNOSTIC MONITORING TEST RESULTS and read the test results by WDS or equivalent.
