Automatic Transaxle Control System Wiring Diagram

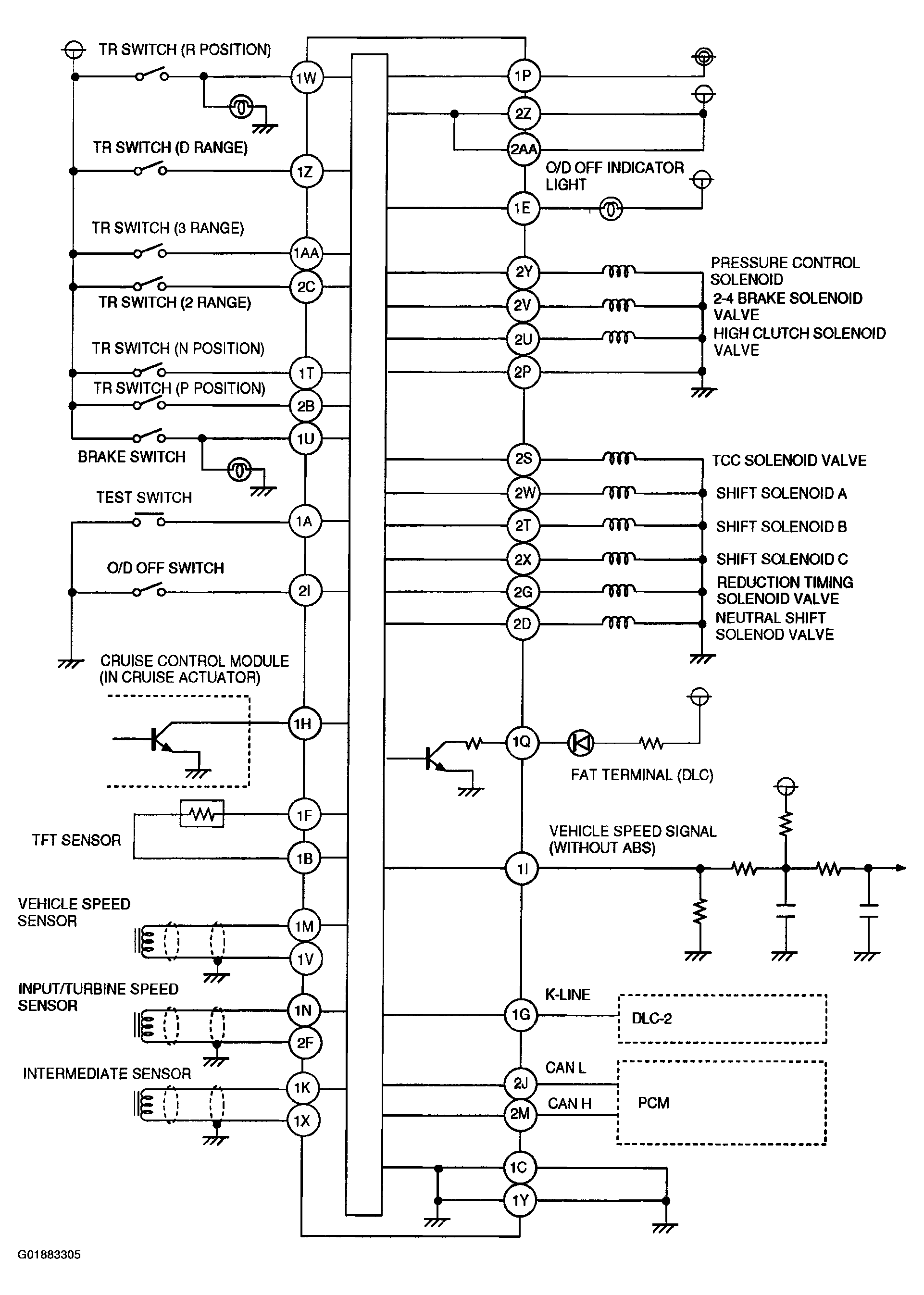

Fig 1: Wiring Diagram - Automatic Transaxle Control System

G01883305

Courtesy of MAZDA MOTORS CORP.
