Cigarette Lighter Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figures.

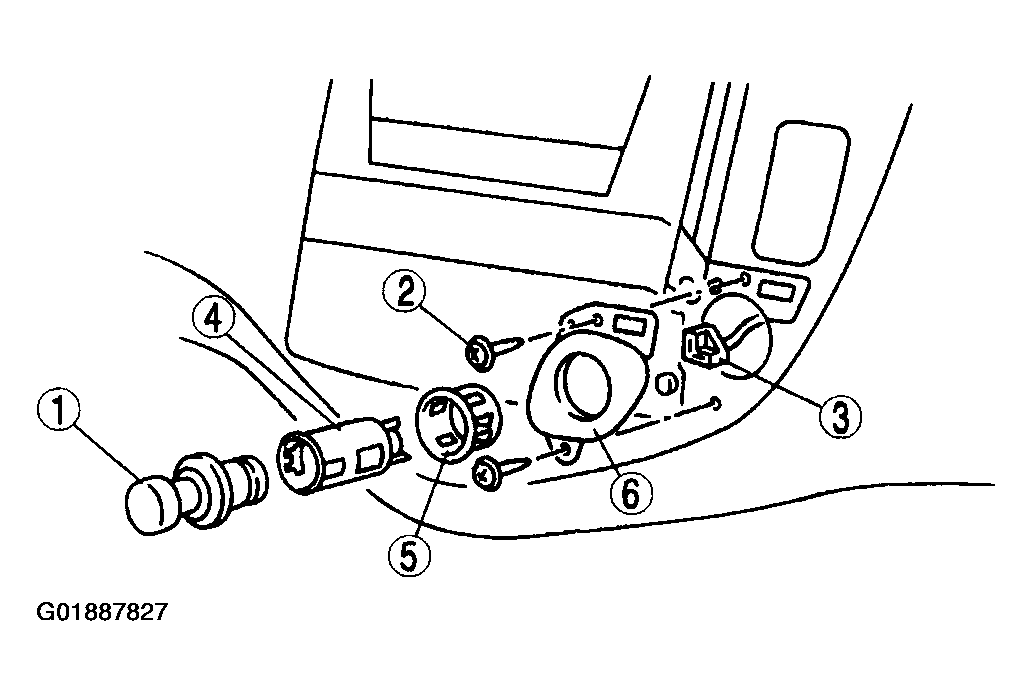

    Fig 1: Removing Cigarette Lighter
    G01887827Courtesy of MAZDA MOTORS CORP.
    Fig 2: Cigarette Lighter Removal Sequence
    G01887826Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
