Home >> Mazda >> 2003 >> B3000 2WD V6-3.0L OHV >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Camshaft Position Sensor >> Locations

Camshaft Position Sensor: Locations

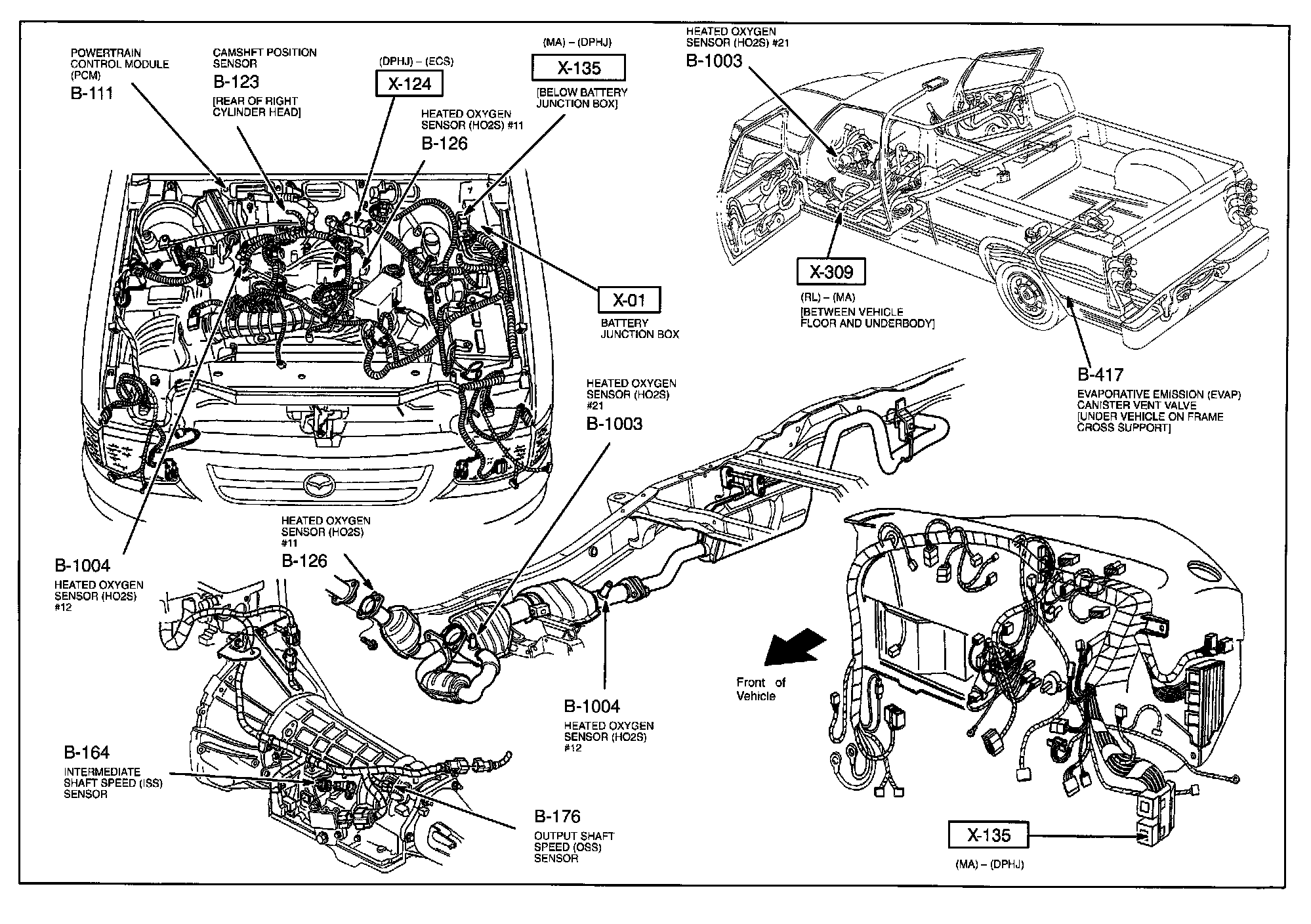

Routing View B-2f:
