Differential Assembly





Front Differential General Specifications

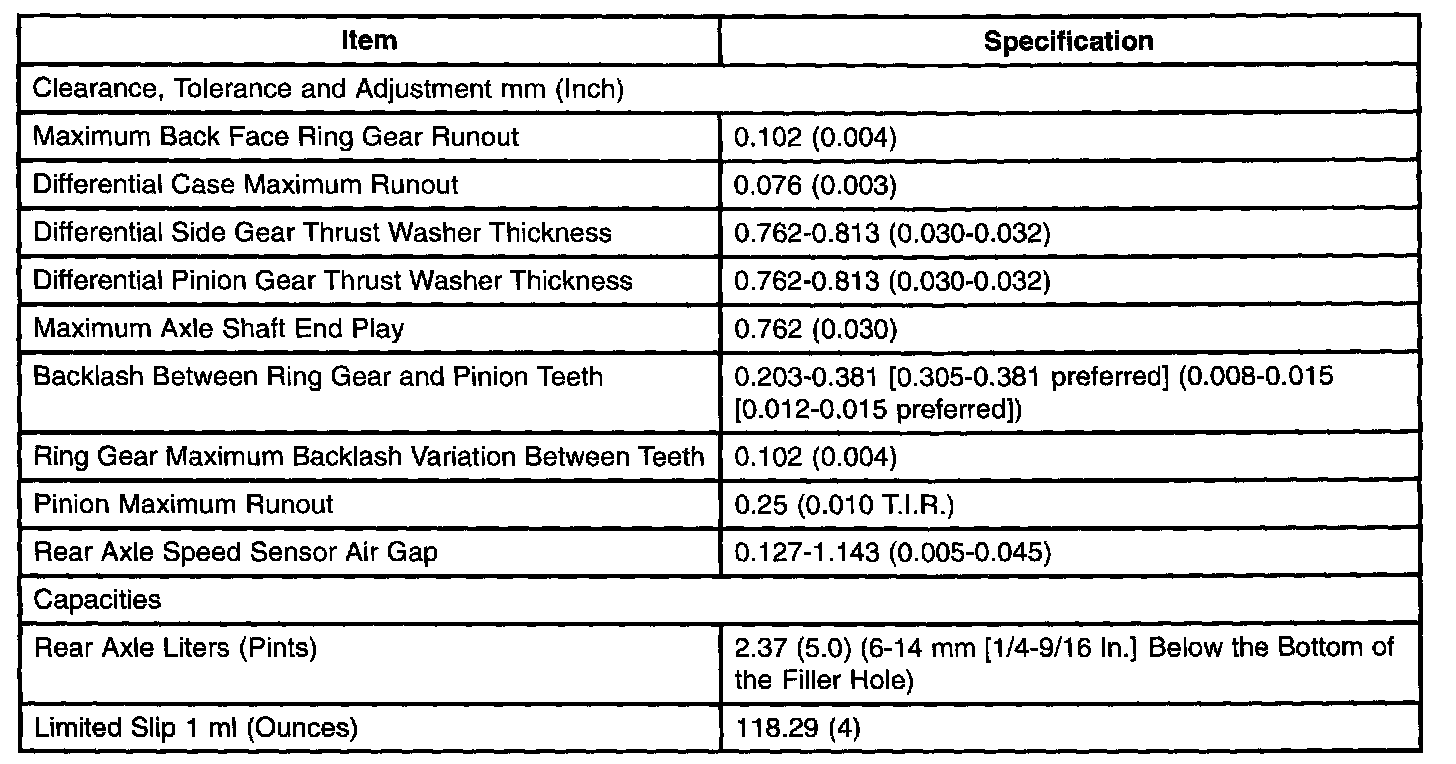

Rear Differential General Specifications

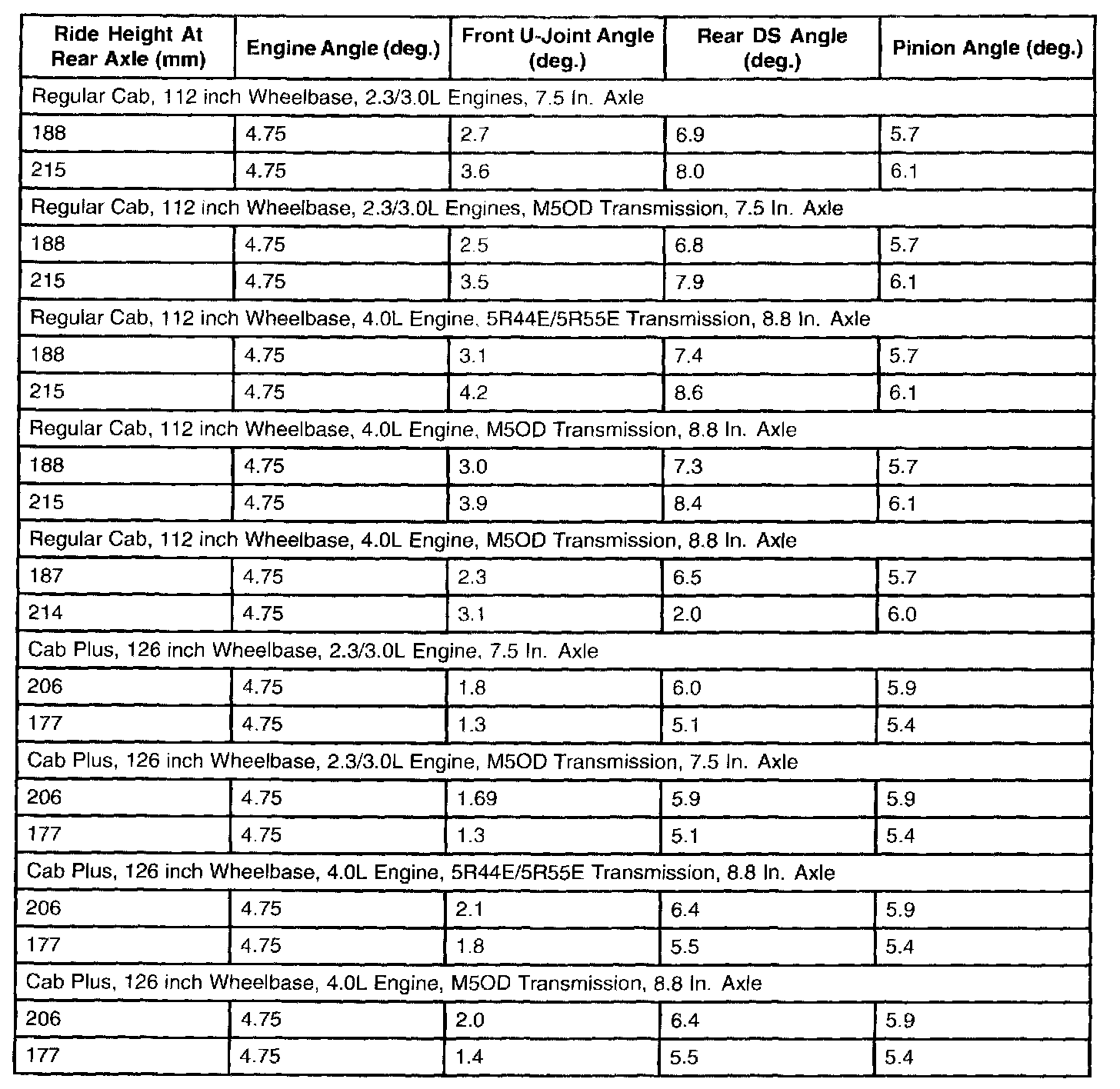

Rear Driveline Angles @ Curb (4X2) Specifications
