Interlock Cable Inspection

  1. Turn the ignition switch to ON position. (engine OFF)
  2. Remove the clip of the selector lever base plate, then remove the interlock cable from the U-groove.

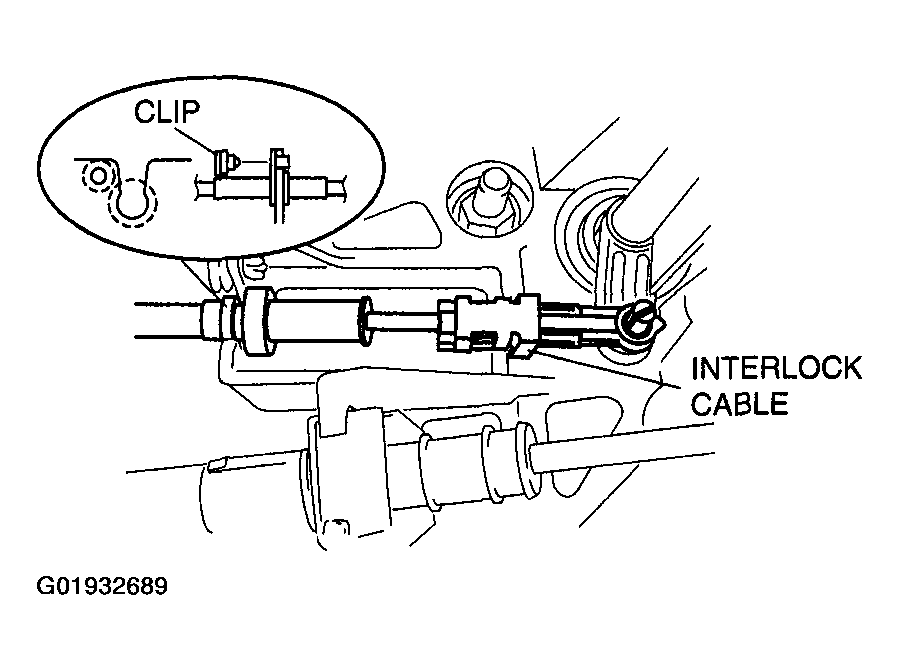

    Fig 1: Removing Clip And Interlock Cable From U-Groove
    G01932689Courtesy of MAZDA MOTORS CORP.
  3. Remove the interlock cable from the selector lever.
    Fig 2: Removing Interlock Cable From Selector Lever
    G01932690Courtesy of MAZDA MOTORS CORP.
  4. Verify that the interlock cable moves freely with the brake pedal depressed.
    • If there is any malfunction, replace the interlock cable.
    Fig 3: Verifying Interlock Cable Moves Freely - Brake Pedal Depressed
    G01932691Courtesy of MAZDA MOTORS CORP.
