Rear Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in Fig 1 .

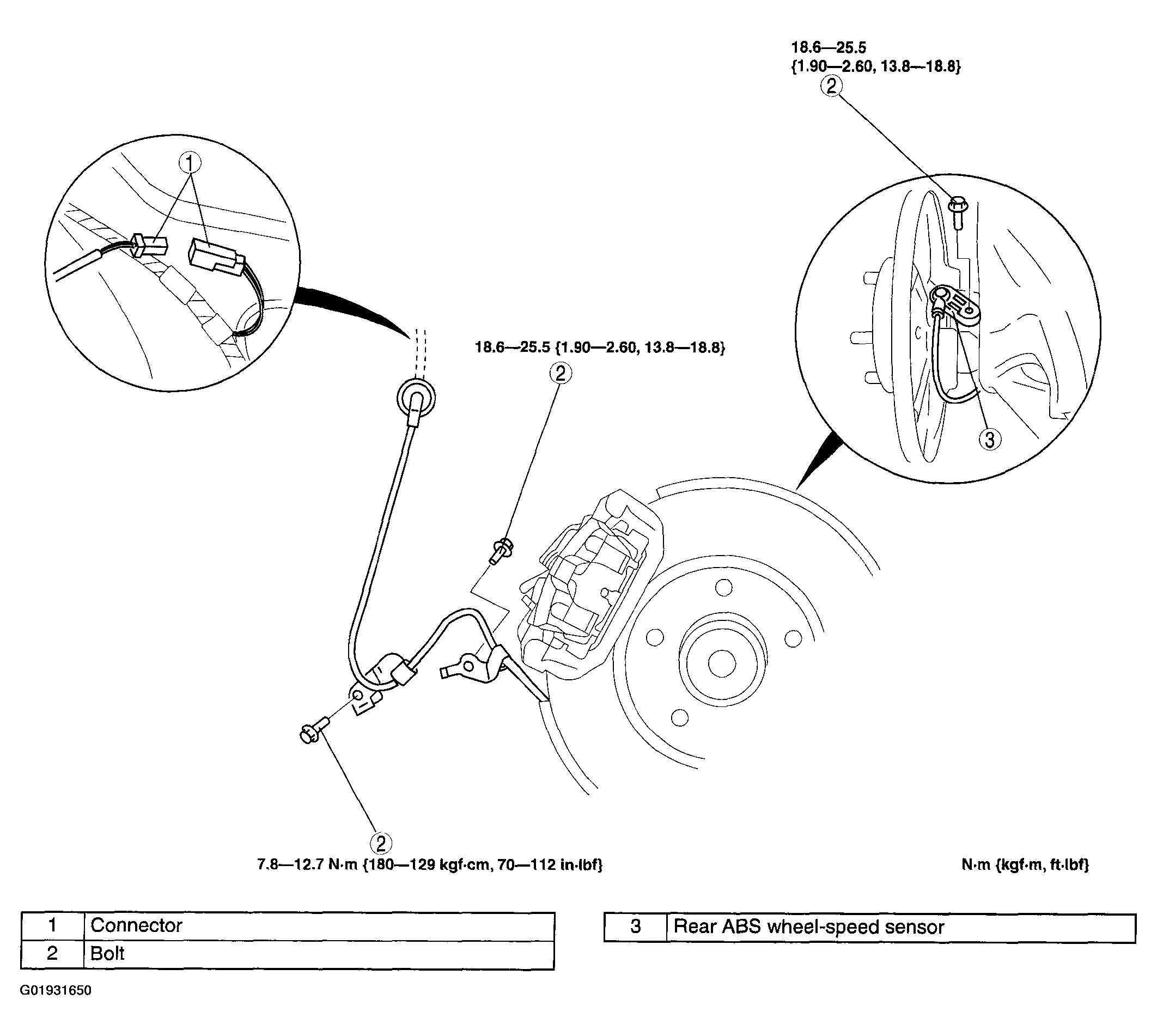

    Fig 1: Identifying Rear ABS Wheel-Speed Sensor
    G01931650Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
