Disassembly Components

CLUTCH HOUSING AND TRANSAXLE CASE COMPONENTS DISASSEMBLY

Disassembly Components

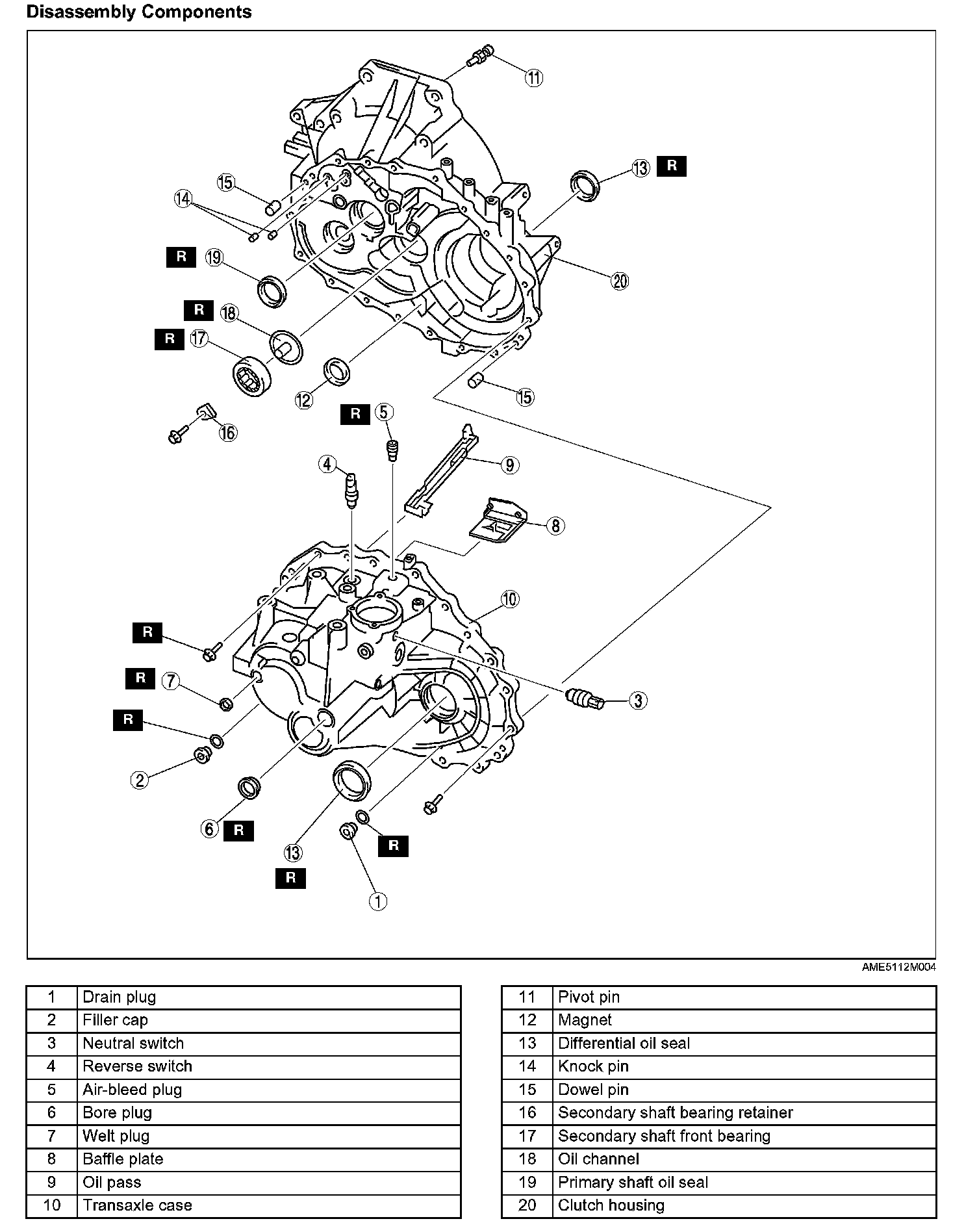

Clutch Housing and Transaxle Case Components Disassembly (Part 1):

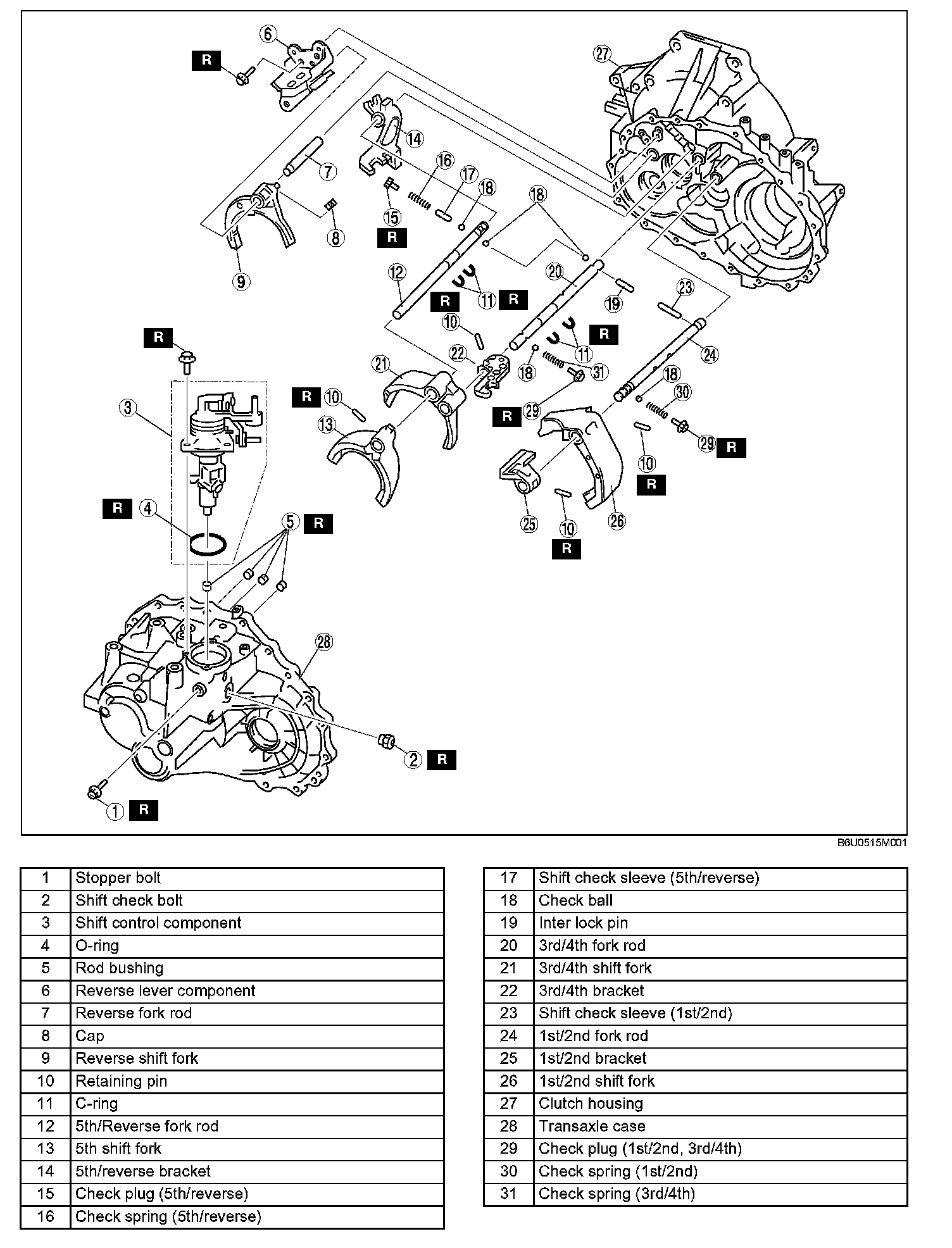

Clutch Housing and Transaxle Case Components Disassembly (Part 2):
