Rear

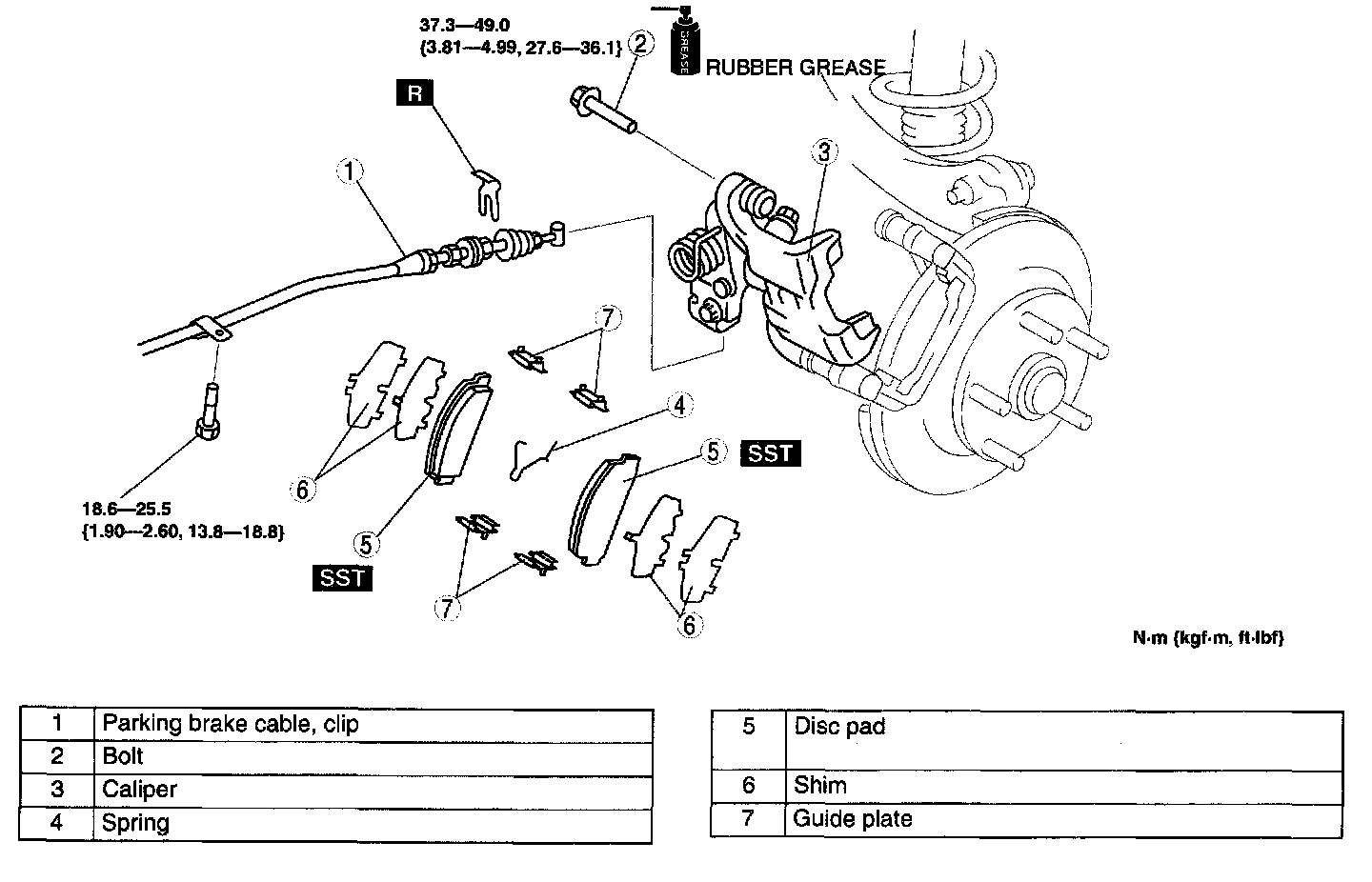

DISC PAD (REAR) REPLACEMENT





1. Remove in the order indicated in the table.
2. Install in the reverse reeler of removal






Disc Pad Installation Note:
1. Push the piston fully inward using the SST.
2. Install the disc pad.
