Home >> Mazda >> 2002 >> Tribute ES, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Transaxle - Troubleshooting >> Diagnostic Flow Chart >> Diagnostic Flow Chart

Diagnostic Flow Chart

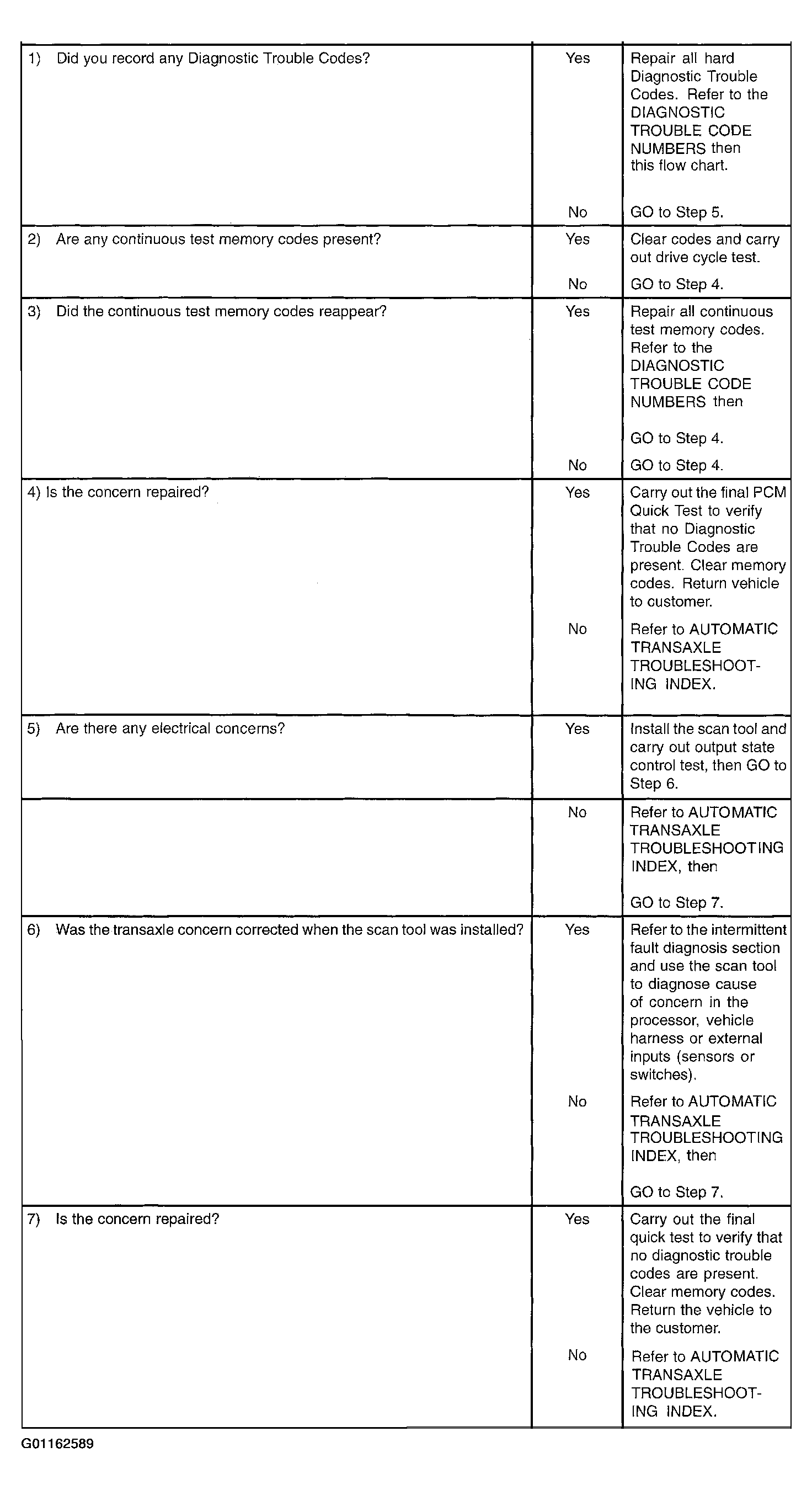

Fig 1: Diagnostic Flow Chart

G01162589

Courtesy of MAZDA MOTORS CORP.
