Camshaft, Engine

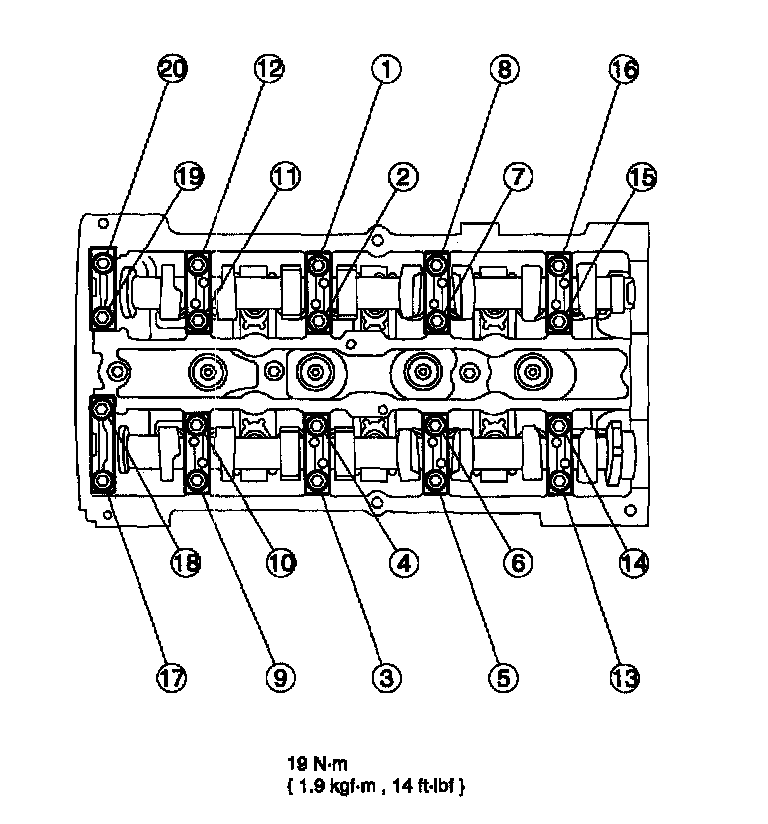

Install the bolts and tighten the bolts in several two-turn passes using the sequence shown.
