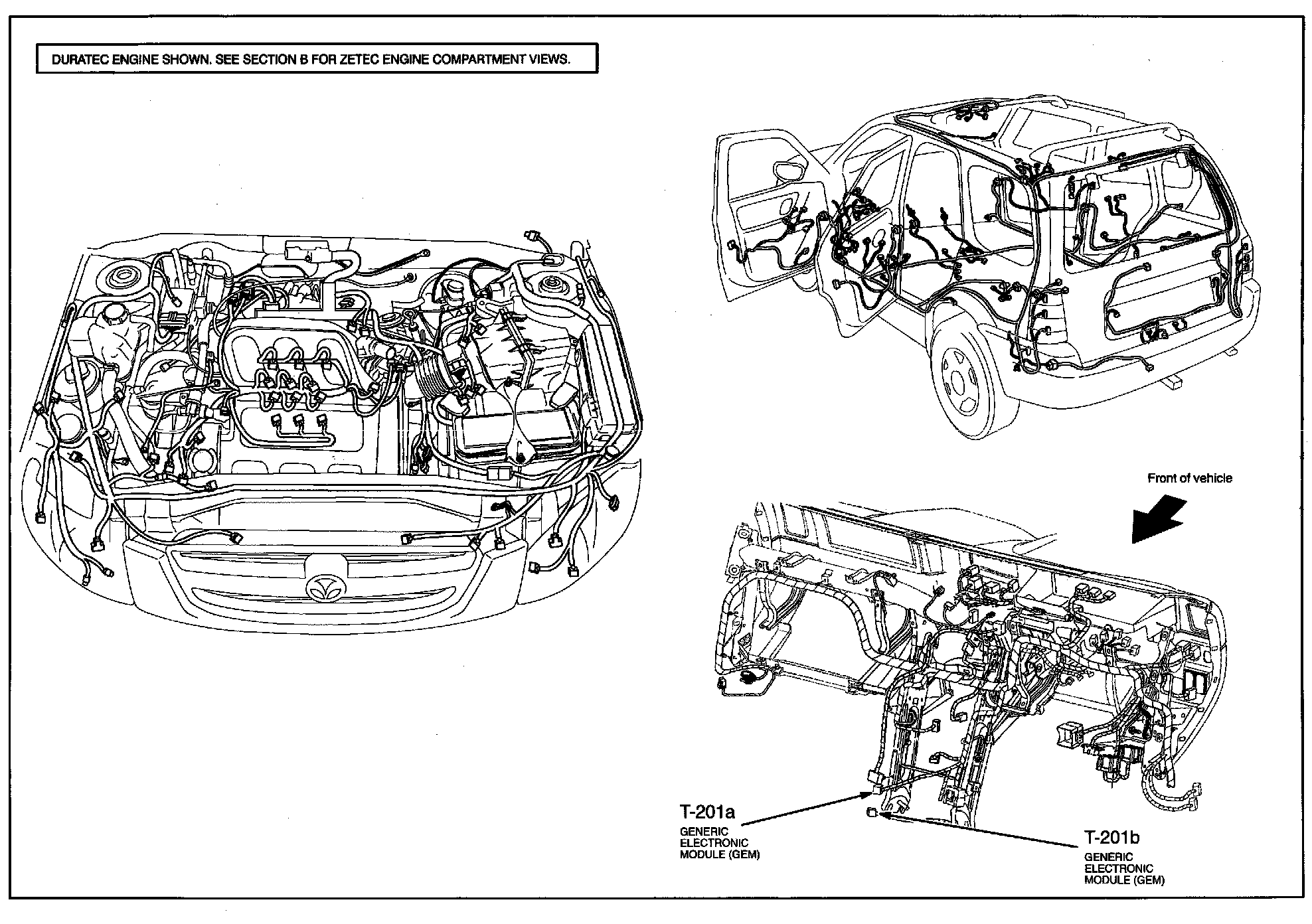

T-1a - Generic Electronic Module (GEM) System

T-1a - Generic Electronic Module (GEM) System Harness/Connector Symbols:

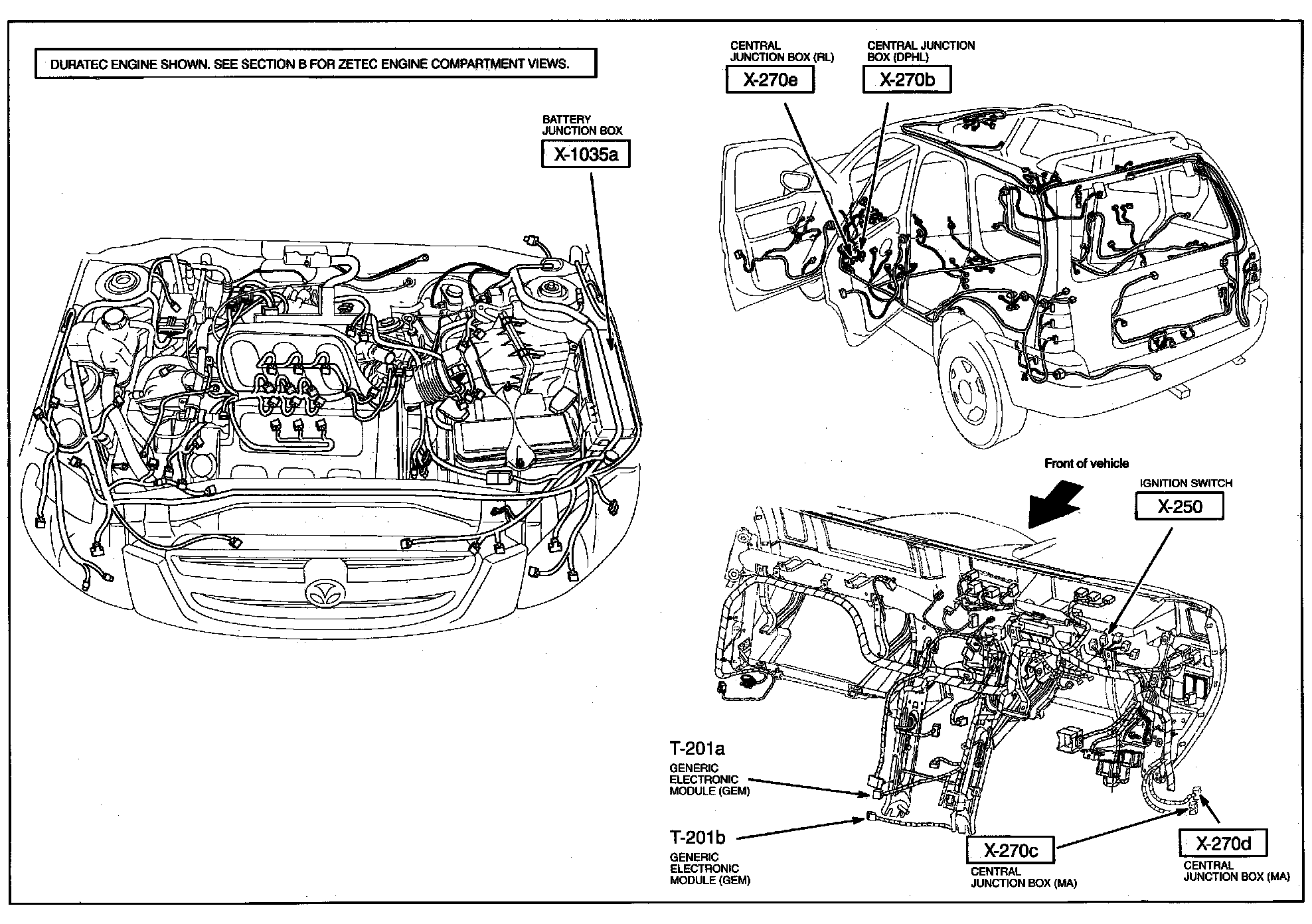

T-1b - Generic Electronic Module (GEM) System Harness/Connector Symbols:

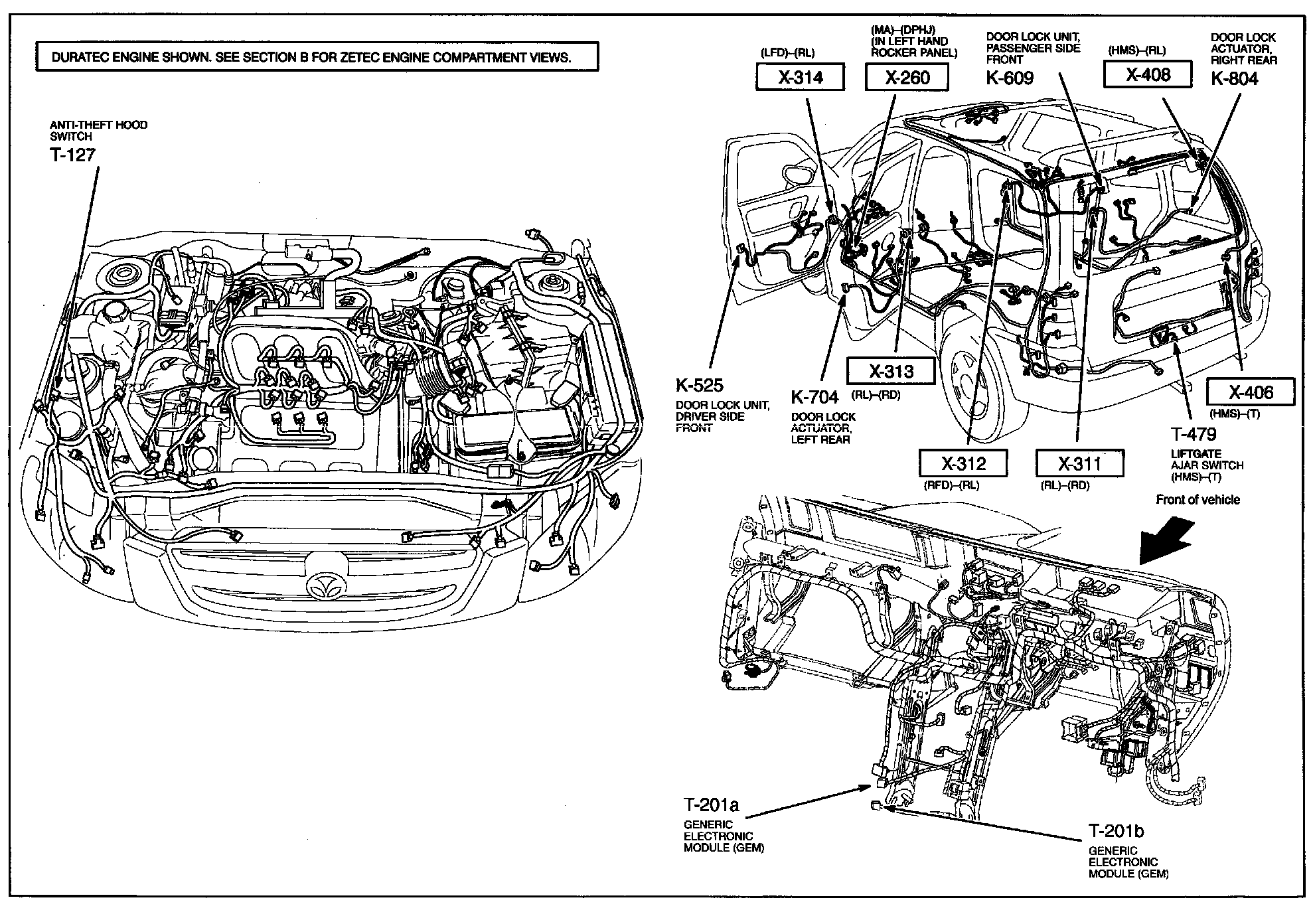

T-1c - Generic Electronic Module (GEM) System Harness/Connector Symbols:
